Spectrophotometer NANOCOLOR Advance
Contact for availability $0.00 * (0% Saved)
*taxes and shipping not included
Delivery time approx. 5 working days
Item number: 919750 0120261300
Package unit 1 Piece(s) Do you have any questions?
Please contact us. The spectrophotometer NANOCOLOR Advance combines the most important features of our portable... more

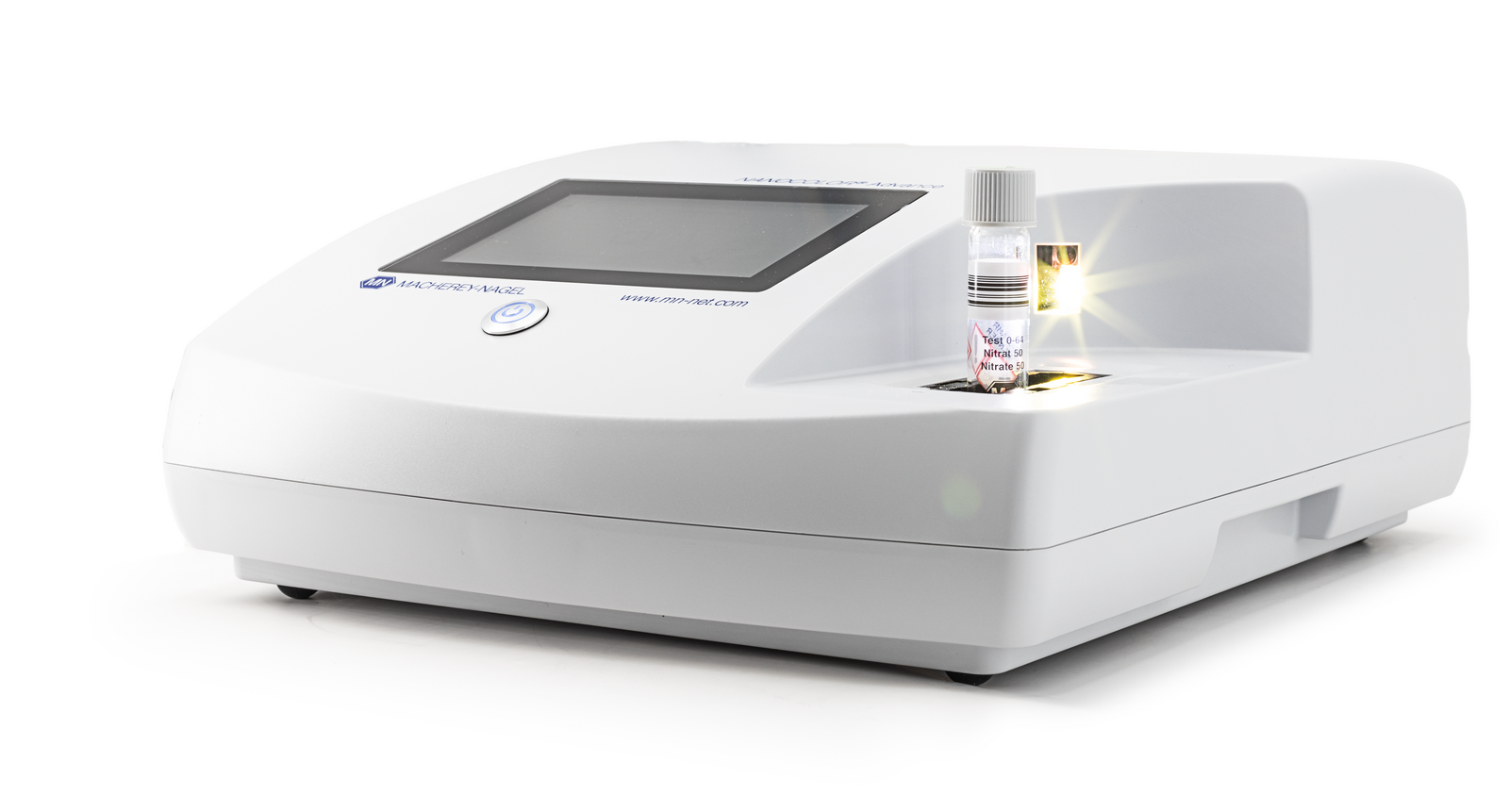

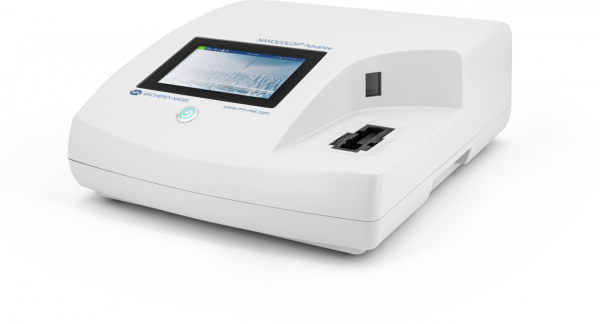

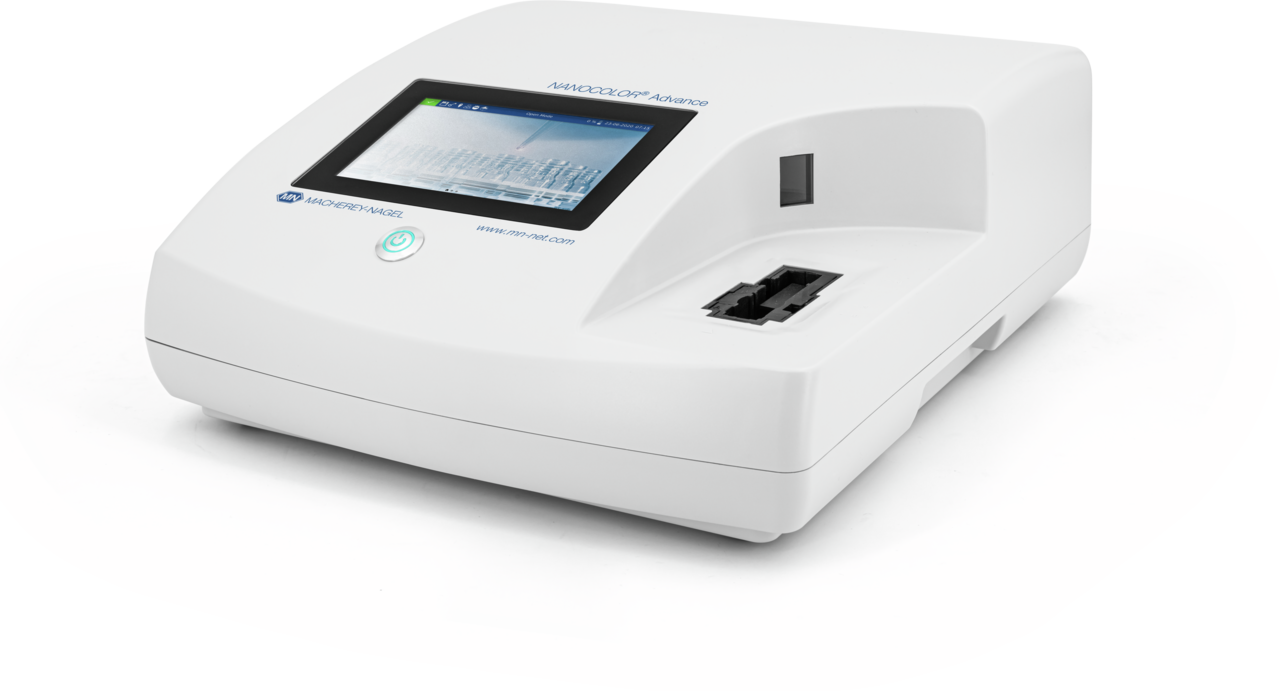

The spectrophotometer NANOCOLOR Advance combines the most important features of our portable compact photometer PF-12Plus and our high-precision spectrophotometer NANOCOLOR VIS II. It provides precise and reliable measurement results in the daily laboratory routine and can also be used mobile due to its rechargeable battery. With its wavelength spectrum of 340 - 800 nm it allows the measurement of all photometrically evaluable test kits from MACHEREY-NAGEL. The NANOCOLOR Advance can therefore be used universally in the entire spectrum of water and wastewater analysis.
Brand | NANOCOLOR |
Type | Spectrophotometer with reference detector technology (RDT) |
Light source | Halogen lamp |
Optical system | Monochromator |
Wavelength | 340 nm–800 nm |
Wavelength accuracy | ± 2 nm |
Wavelength resolution | 1 nm |
Wavelength reproducibility | ± 0.1 nm |
Wavelength calibration | Automatic |
Wavelength selection | Automatic, Barcode, Manual |
Scan speed | 1 complete scan in less than 3 min |
Spectral bandwidth | < 4 nm |
Photometric range | +/- 3.0 E in the range 340–800 nm |
Photometric accuracy | 0.003 E at 0.0–0.5 E; 1% at 0.5–2.0 E |
Photometric linearity | < 0.5 % at 0.5–2.0 E, ≤ 1% at > 2 E with neutral glass filters at 546 nm |
Stray light | < 0.5 % |
Measuring modes | More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; scan; nephelometric turbidity measurement |
Preprogrammed tests | NANOCOLOR tube tests and standard tests, VISOCOLOR ECO test kits and Powder Pillows |
Turbidity measurement | Nephelometric turbidity measurement (based on ISO 7027, 16 mm and 24 mm) 1–1000 NTU |
Cuvette slot | Tube test 16 mm, 24 mm OD; Standard test 10 mm, 20 mm, 40 mm and 50 mm |
External light | Insensitive to external light, fast measurements without cuvette slot cover |
Data memory | 1000 measurement results, 1000 IQC results, 100 scans; GLP‑conform |
Display | Backlit colored 5" display with touch screen |
Operation | Barcode technology, icon-based menu guidance, touch screen |

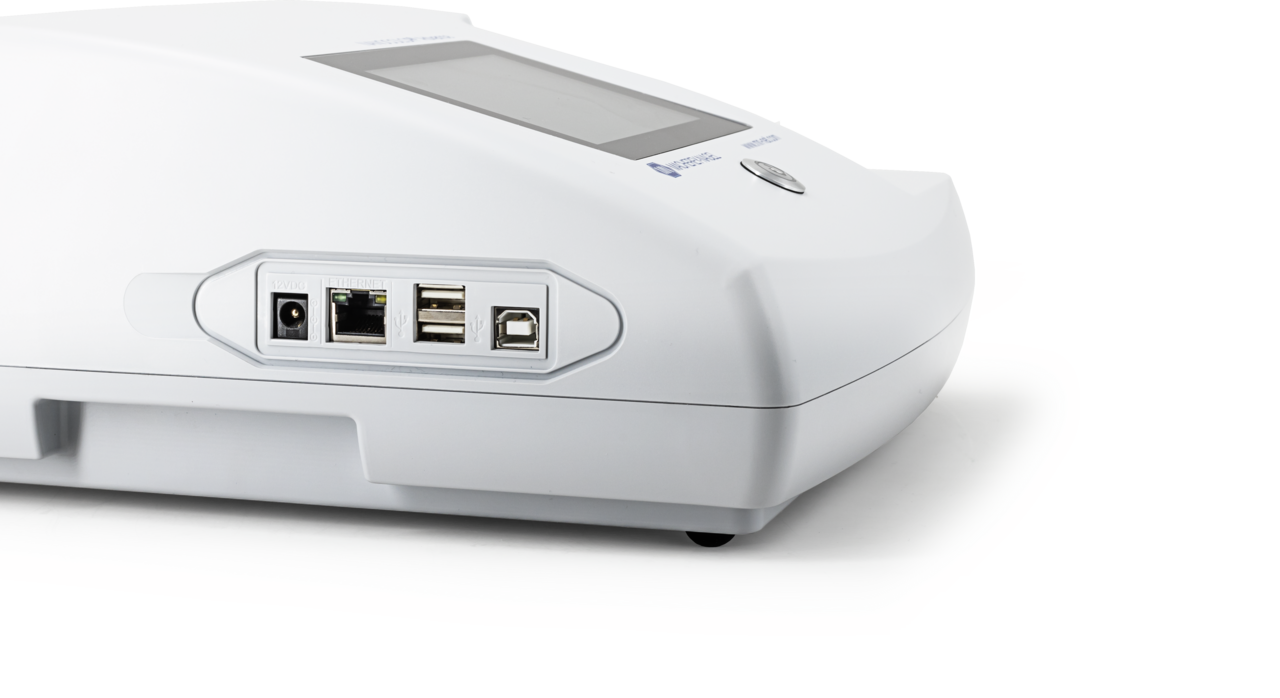

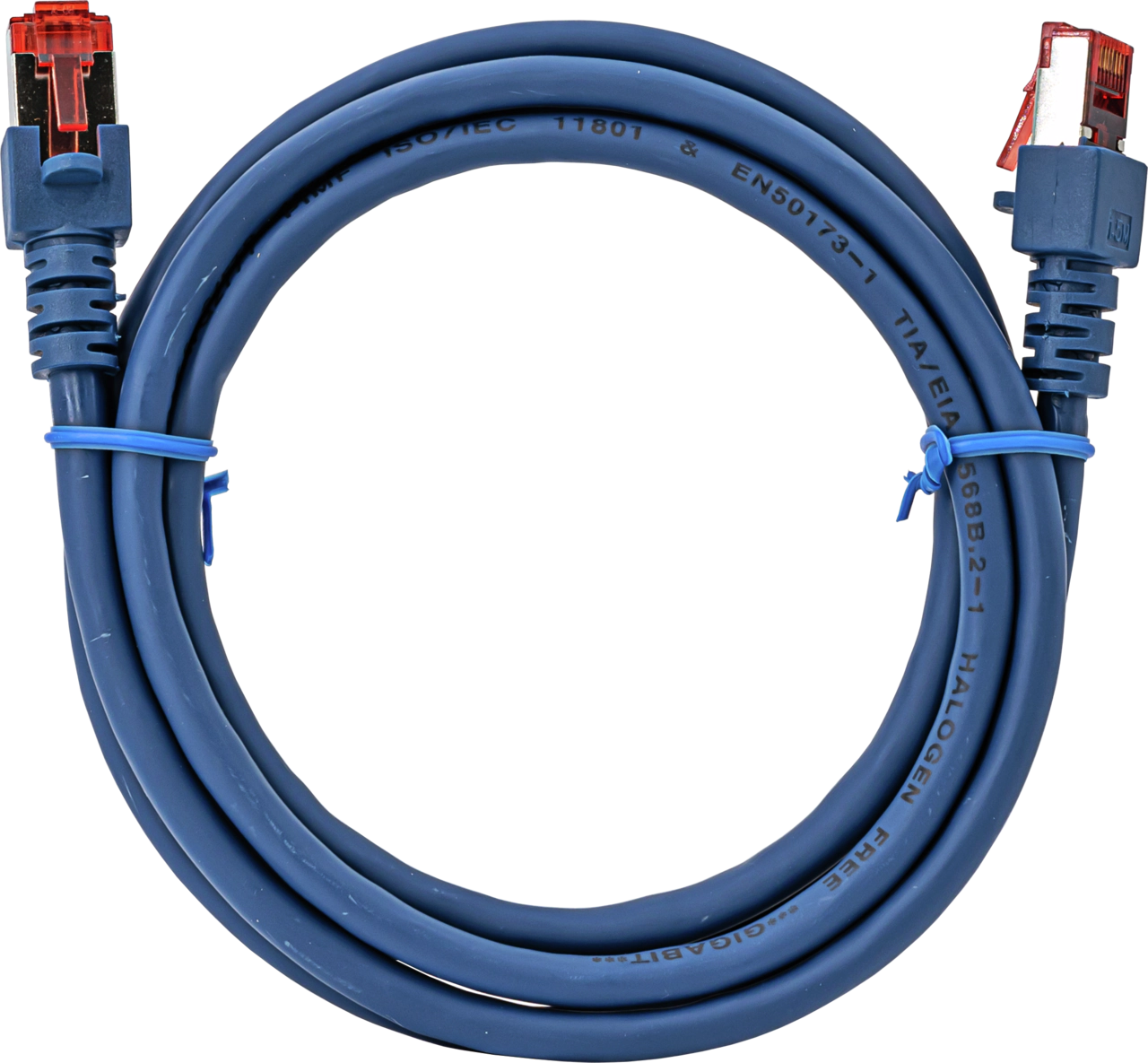

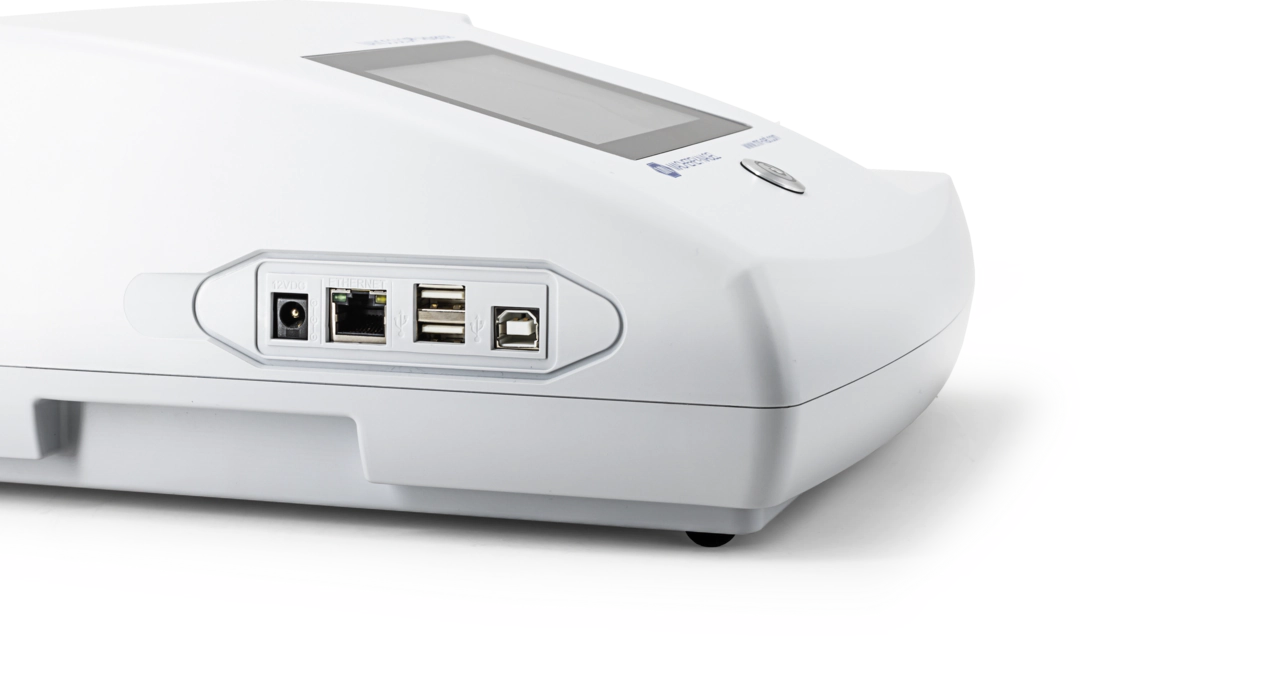

Interfaces | LAN (CAT 6, only use shielded cables with a maximum length of 20 m) 2 x USB (Host), 1 x USB (Function) |
Update | Free via USB stick |
Operating range | 10–40 °C, max. 80 % relative humidity (non-condensing) |
Power supply | Input 110–240 V AC, Output 12 V 3A DC; 6,4 V, 7,2 Ah via built-in battery |
Weight | 3.8 kg |
Warranty | 2 Year(s) |
CE certified | Yes |

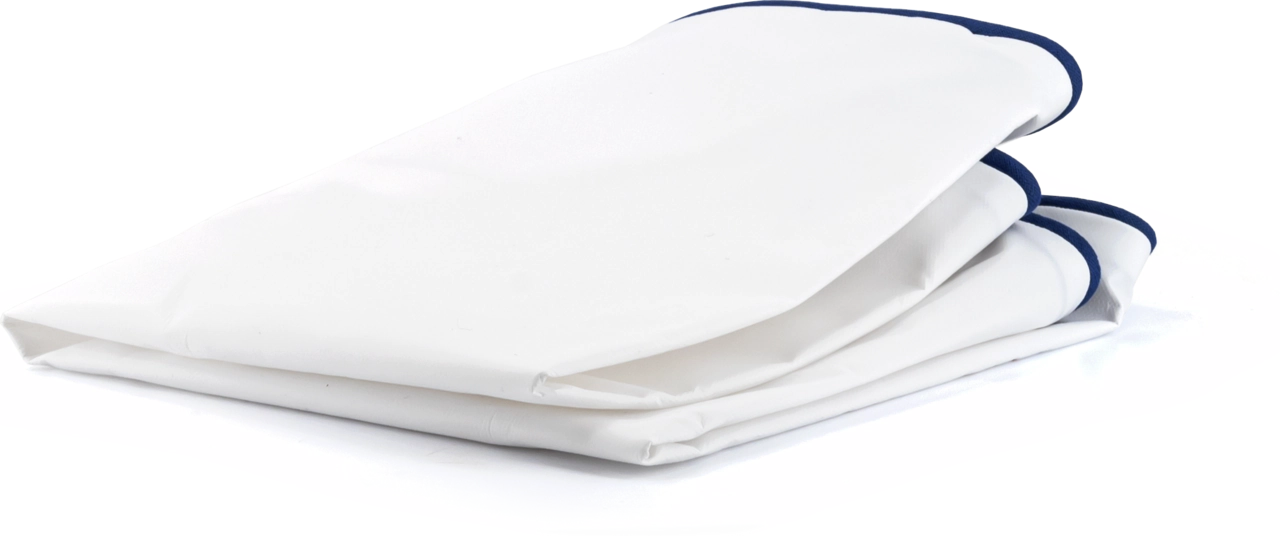

Scope of delivery | Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth |
Hazardous material | No |
- Download Instruction / Anleitung / Manuel
- Download Quick Guide
- Download Firmware update / Firmwareupdate / Mise à jour du firmware
- Download Flyer NANOCOLOR Advance (EN)
- Download Flyer NANOCOLOR Advance (DE)
- Download Flyer NANOCOLOR Advance (FR)
- Download Flyer NANOCOLOR Advance (ES)
- Download Manual VISOCOLOR ECO on photometers (EN, DE, FR, ES)
