Spectrophotometer NANOCOLOR VIS II, 320−1100 nm

Contact us for more information $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

919650.1 0120261300
Package unit 1 Piece(s)
Do you have any questions?
Please contact us.
The spectrophotometer NANOCOLOR VIS II is a high-precision instrument applicable in all areas of... more

The spectrophotometer NANOCOLOR VIS II is a high-precision instrument applicable in all areas of water and wastewater analysis. MACHEREY‑NAGEL revolutionizes the daily laboratory work with this new spectrophotometer by the combination of premium high-tech components with outstanding usability.

Type Spectrophotometer with reference detector technology (RDT)
Light source Halogen lamp
Optical system Monochromator
Wavelength 320–1100 nm
Wavelength accuracy ± 1 nm
Wavelength resolution 0.1 nm
Wavelength reproducibility <0.5 nm
Wavelength calibration Automatic
Wavelength selection Automatic, Barcode, Manual
Scan speed 1 complete scan in less than 1 min
Spectral bandwidth < 4 nm
Photometric range ± 3.0 A in wavelength range 340–900 nm
Photometric accuracy 0.005 A at 0.0–0.5 A; 1 % at 0.5–2.0 A
Photometric linearity < 0.5 % at ≤ 2 A, ≤ 1 % at > 2 A
Stray light < 0.1 %
Measuring modes More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; scan; nephelometric turbidity measurement
Preprogrammed tests NANOCOLOR tube tests and standard tests
Turbidity measurement Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 0.1–1000 NTU
Cuvette slot Round tubes 16 mm OD, rectangular cuvettes 10 mm, 20 mm, 40 mm, 50 mm

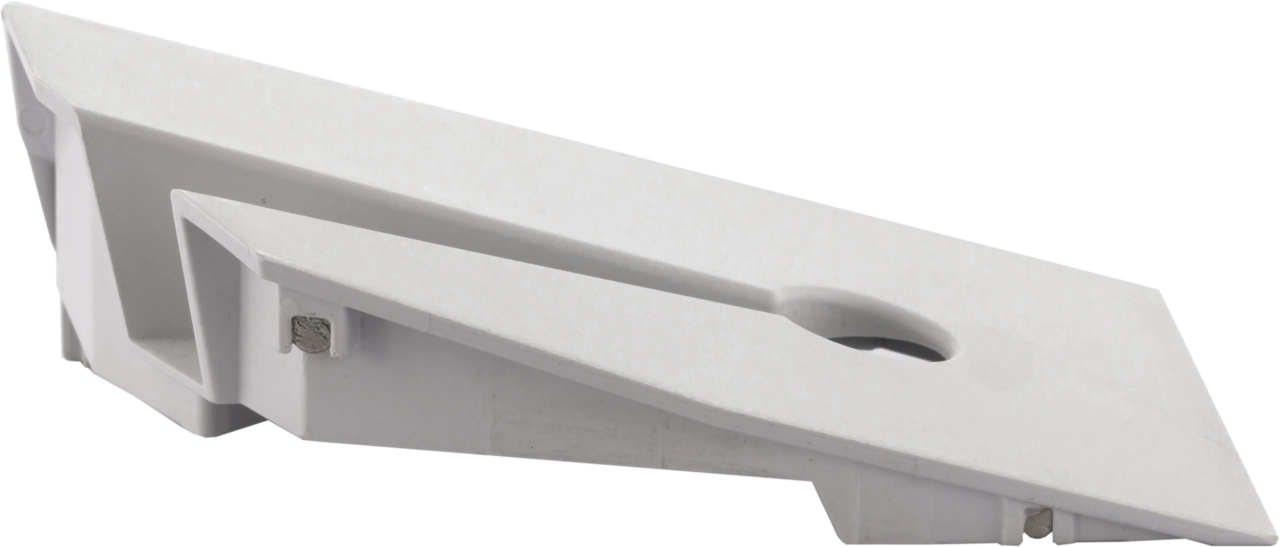

External light Insensitive to external light, fast measurements without cuvette slot cover
Data memory 16 GB Micro SDHC card, 5000 measured data sets, 100 spectra and color measurements, GLP-conform

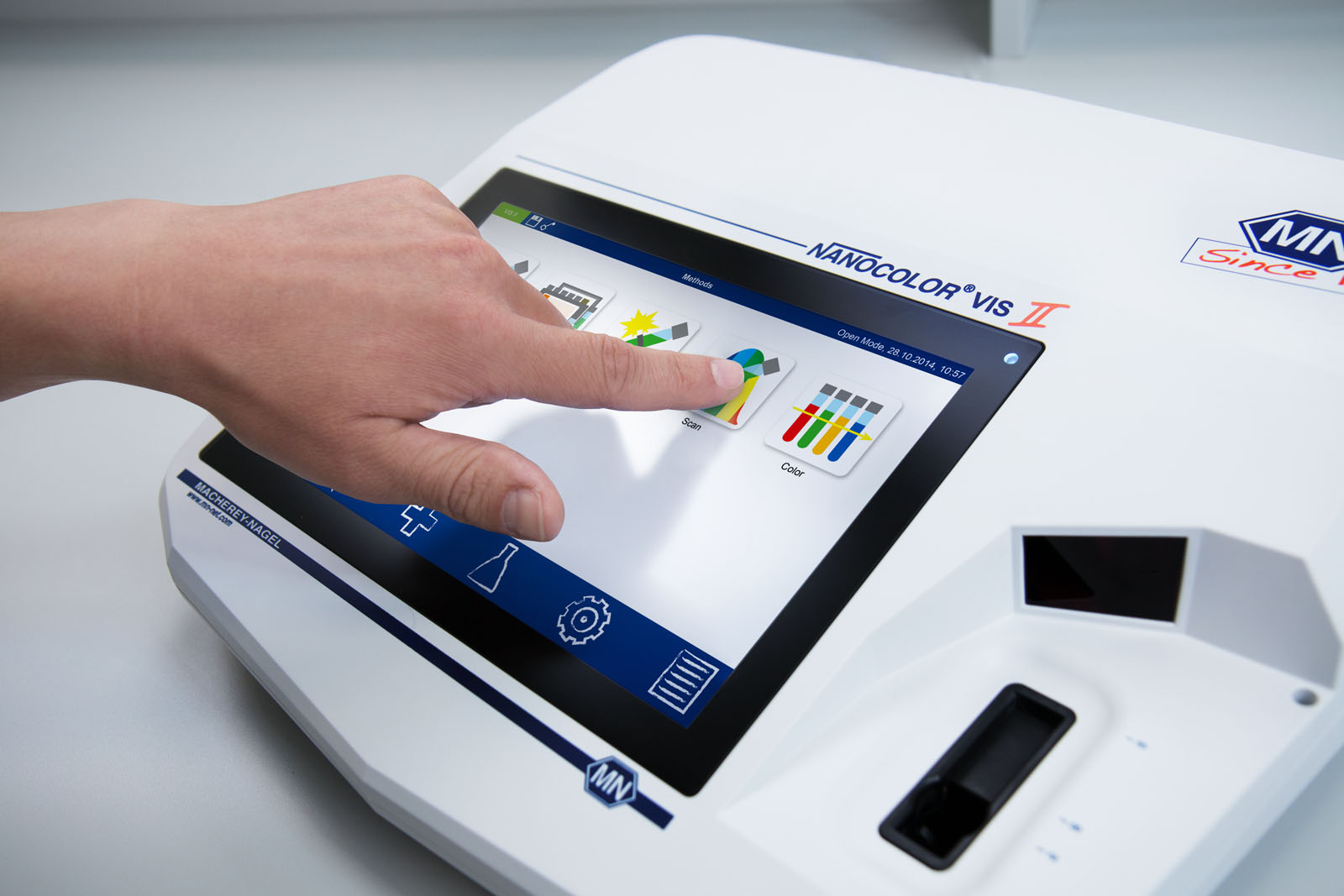

Display 10.1″ LED backlit HD display, anti-reflective cover glass with projected capacitive touch screen (PCAP)
Internal quality control With NANOCONTROL NANOCHECK 2.0

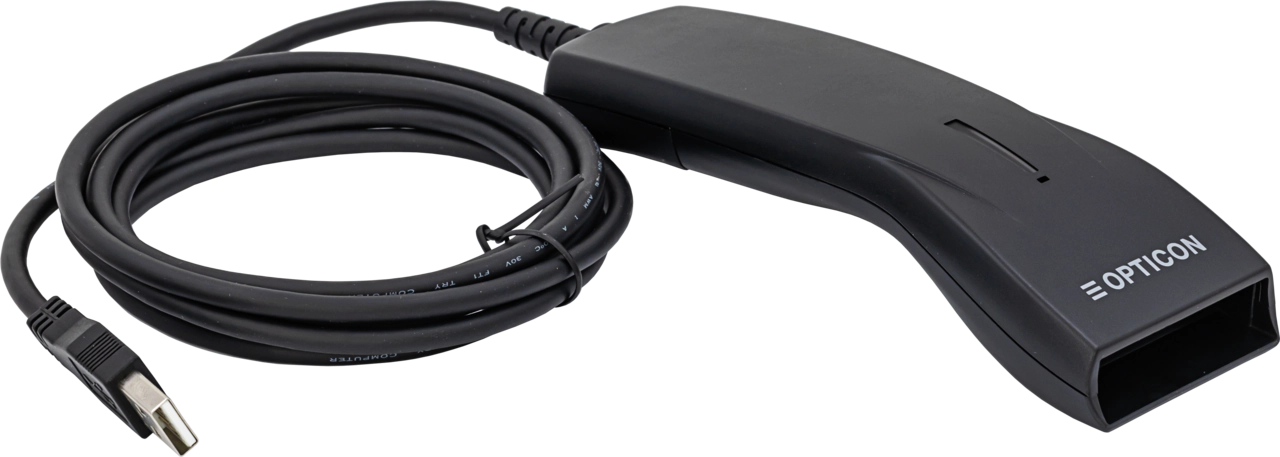

Operation Barcode technology, icon-based menu guidance, touch screen
Language DE / EN / FR / ES / PT / PL / HU / NL / CZ / RO / IT

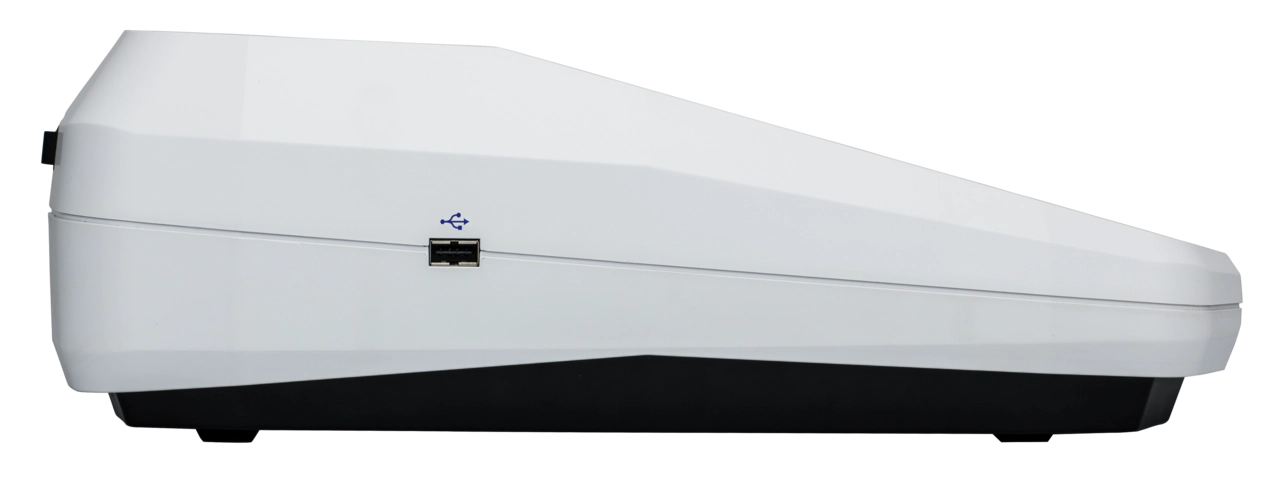

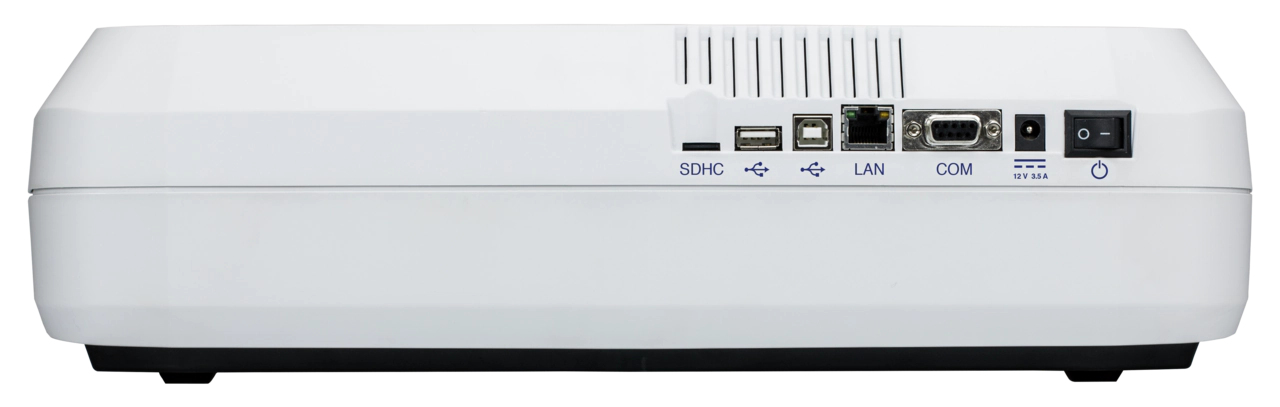

Interfaces LAN, 2 x USB (host), 1 x USB (function) and RS232
Update Free via USB stick
Operating range 10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing)
Power supply Input 110–240 V AC, Output 12 V 3A DC
Weight 4 kg
Warranty 2 Year(s)
CE certified Yes

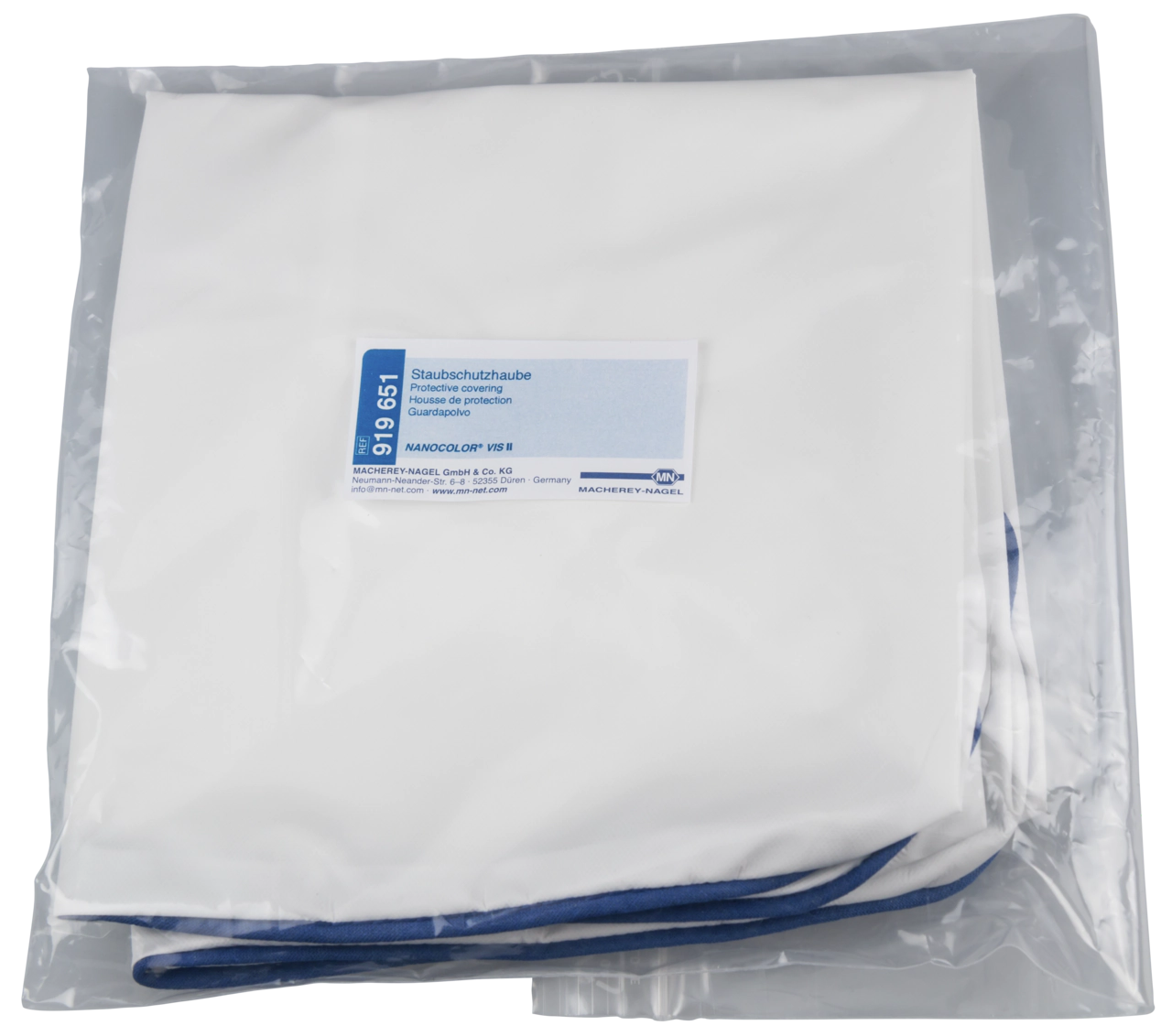

Scope of delivery Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth
Gross weight (incl. packaging) 7272 g / 16.03 lbs
Packaging dimensions 542 x 474 x 276 mm / 21.34 x 18.66 x 10.87 Inch
Hazardous material No
