Crimp closure, N 20, metal (magn.), silver,center hole,Butyl red/PTFE gray,3.0mm

This item is not available. Please refer to the product description for more information.
Contact us for more information $0.00 * (0% Saved)

*taxes and shipping not included

Ready to ship today,
Delivery time appr. 1-3 workdays

702774 02301023501020
Package unit 100 Piece(s)
Do you have any questions?
Please contact us.
Product no longer available, proposal for replacement: REF 702928. Magnetic crimp closures... more

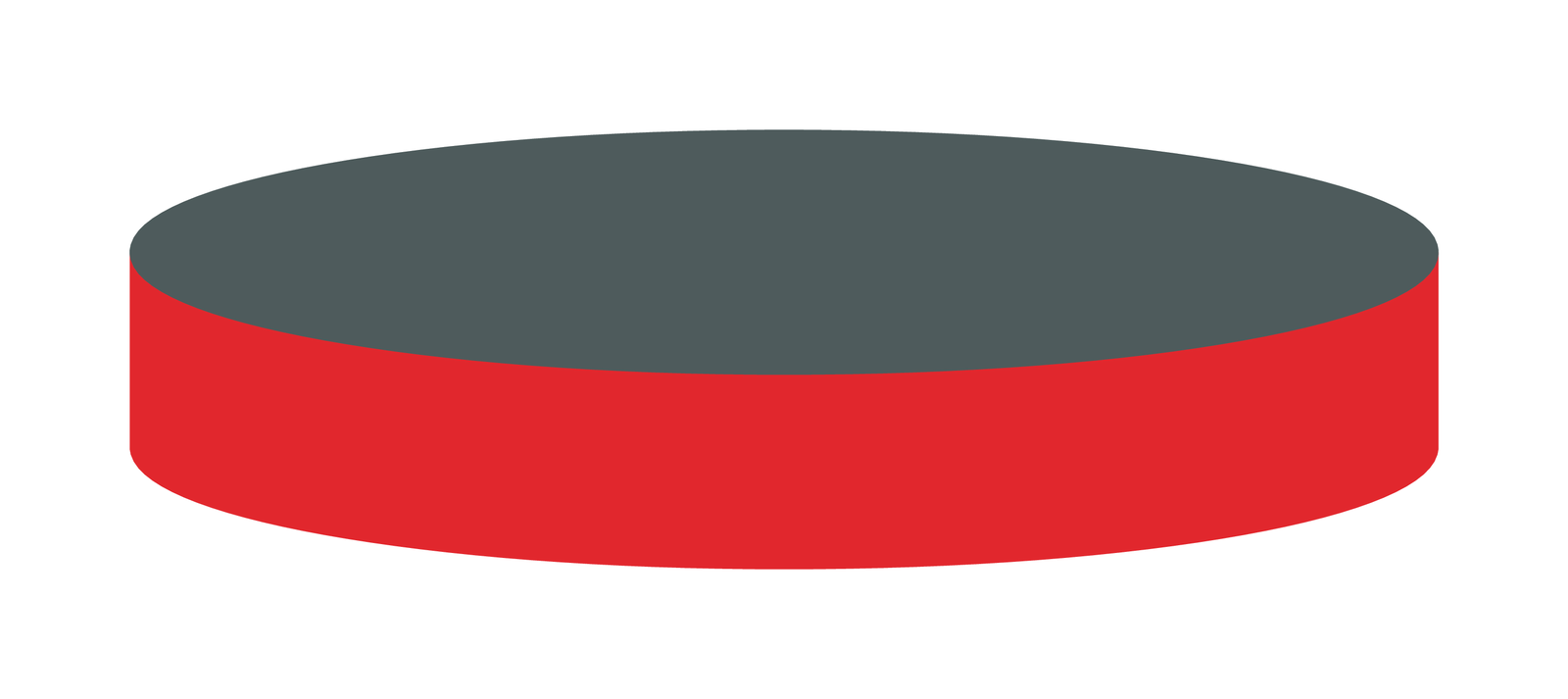

Product no longer available, proposal for replacement: REF 702928. Magnetic crimp closures support transportation of the vial via magnet, as for e.g. in the CTC Combi PAL, the Shimadzu AOC 5000/6000 or the Gerstel autosampler. They are generally more difficult to crimp/decap which is why Headspace screw neck vials N 18 may be a more convenient alternative. We recommend Silicone/PTFE septa as the optimal choice for Headspace, as they offer a temperature resistance form -60 °C up to 200 °C, highest analytical purity and excellent penetration properties. Septa are assembled, caps are ready-to-use. Septa are shown for illustration purposes only, images upside down.

Closure type Crimp closure
Nominal diameter N 20
Assembling process Assembled
Cap material Metal (magnetic)
Cap color Silver
Cap hole Yes
Closure magnetic Yes
Septa material Butyl/PTFE
Colors of septa material Red/gray
Septa thickness 3.0 mm / 118,1 mil
Septa hardness 50° shore A
Additional closure features Temp. resistance -40 °C up to 120 °C / analytical purity - medium / medium to penetrate / medium resealability
Recommended application(s) Headspace
Autosampler compatibility PerkinElmer (CTC Combi PAL)
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100x N 20 ready assembled crimp closures
Gross weight (incl. packaging) 246 g / 0.54 lbs
Packaging dimensions 145 x 220 x 27 mm / 5.71 x 8.66 x 1.06 Inch
Hazardous material No
