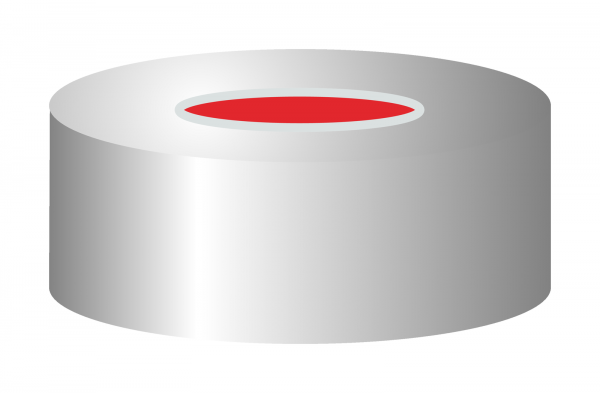

Crimp closure, N 20, alu., center hole, Butyl red/PTFE gray, 3.0 mm

Crimp closure, N 20, alu., center hole, Butyl red/PTFE gray, 3.0 mm
$44.85 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 702773 02301023501020
Package unit 100 Piece(s)
Quantity:
Price overview
Quantity Price/unit
To 9 $44.85
From 10 $38.25
From 50 $34.45
Do you have any questions?
Please contact us.
Technical data Certificates of analysis (CoA / CoC) Downloads
Technical data
Economic Butyl/PTFE closure with good analytical purity for usage in the low to medium... more
Close menu

Economic Butyl/PTFE closure with good analytical purity for usage in the low to medium temperature range (approx. up to 120 °C).

Closure type Crimp closure
Nominal diameter N 20
Assembling process Assembled
Cap material Aluminum
Cap color Silver
Cap hole Yes
Closure magnetic No

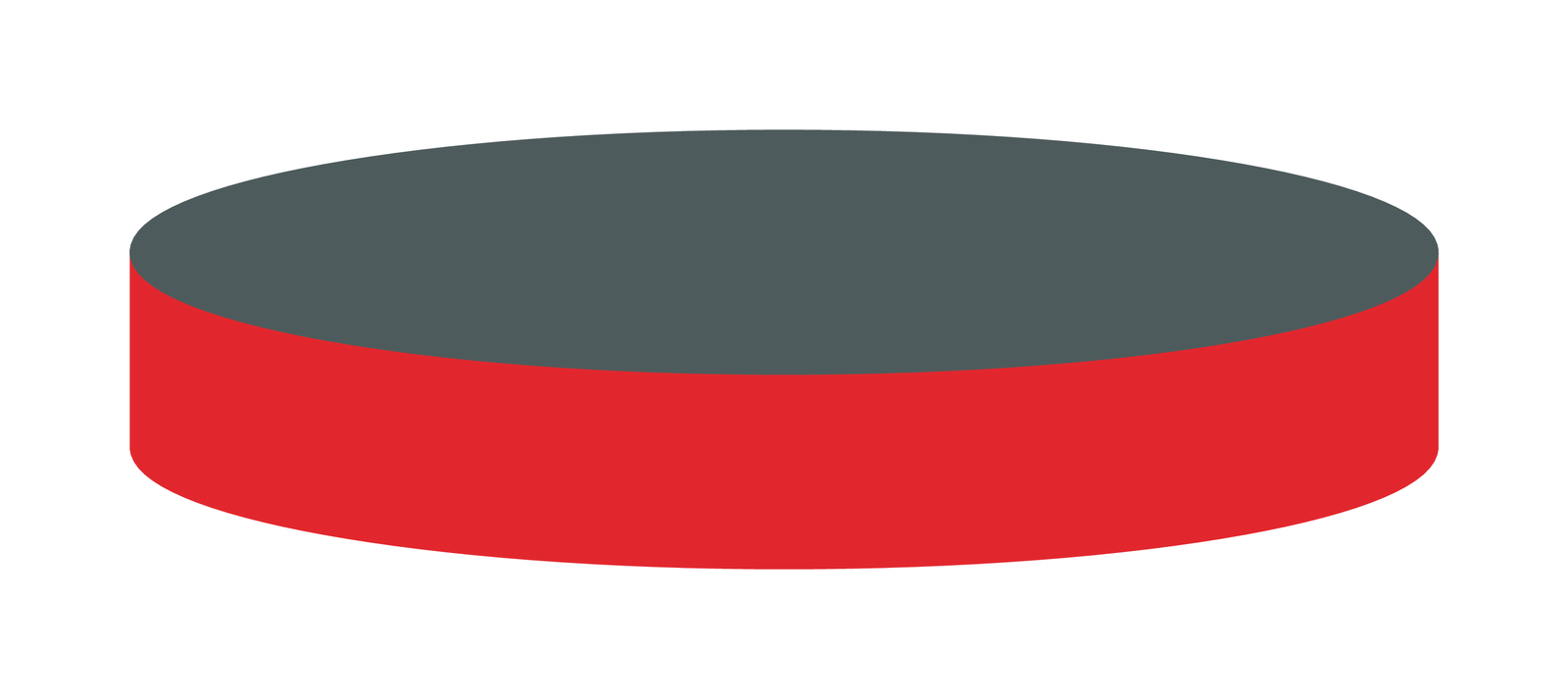

Septa material Butyl/PTFE
Colors of septa material Red/gray
Septa thickness 3.0 mm / 118,1 mil
Septa hardness 50° shore A
Additional closure features Temp. resistance -40 °C up to 120 °C / analytical purity - medium / medium to penetrate / medium resealability
Recommended application(s) Headspace
Autosampler compatibility PerkinElmer, Thermo Scientific HS850 / HS200 / TriPlus HS, Varian CP-9020/9025 / CP-9060 / Genesis
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100x N 20 ready assembled crimp closures
Gross weight (incl. packaging) 172 g / 0.38 lbs
Packaging dimensions 200 x 150 x 20 mm / 7.87 x 5.91 x 0.79 Inch
Hazardous material No
