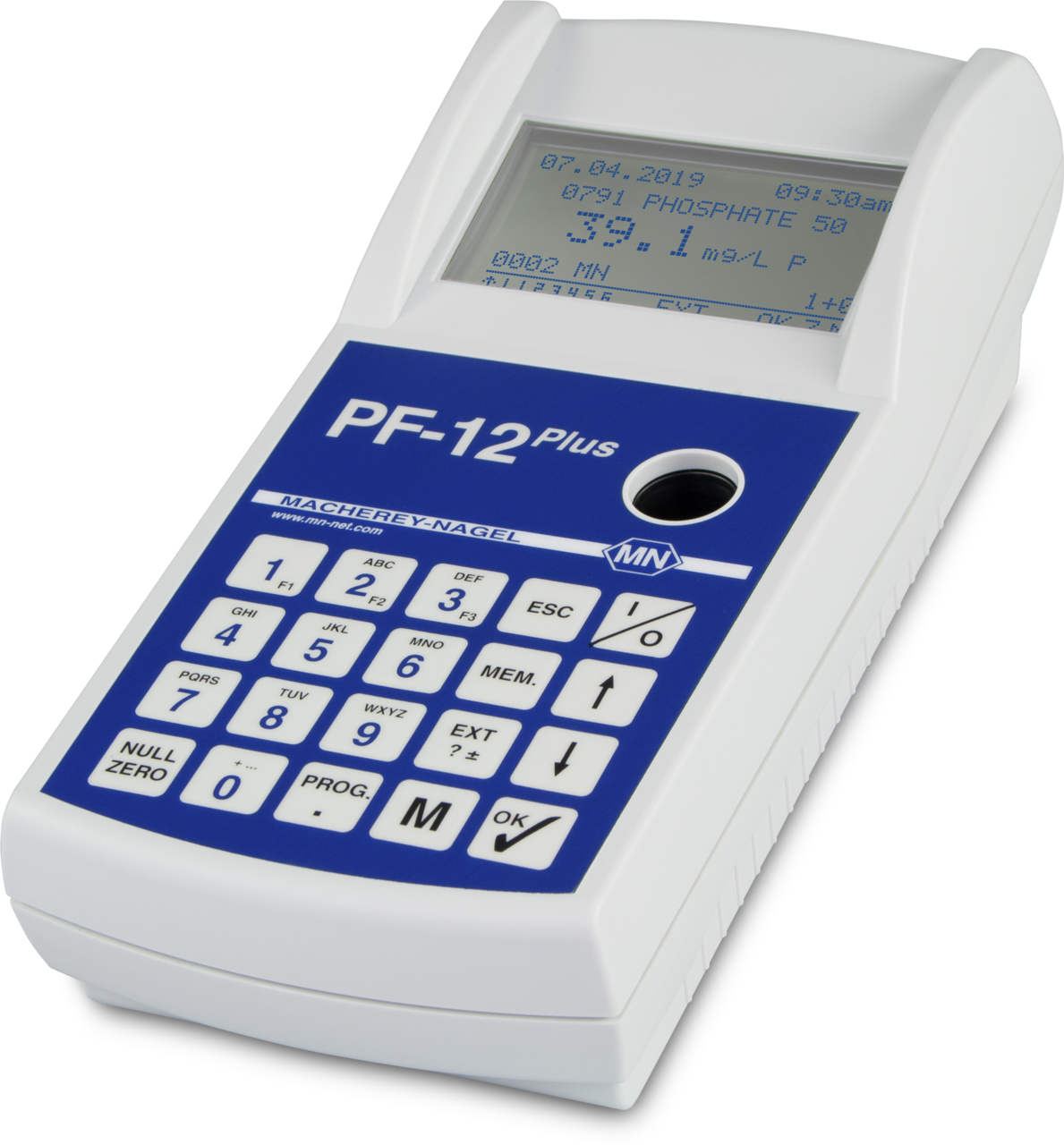

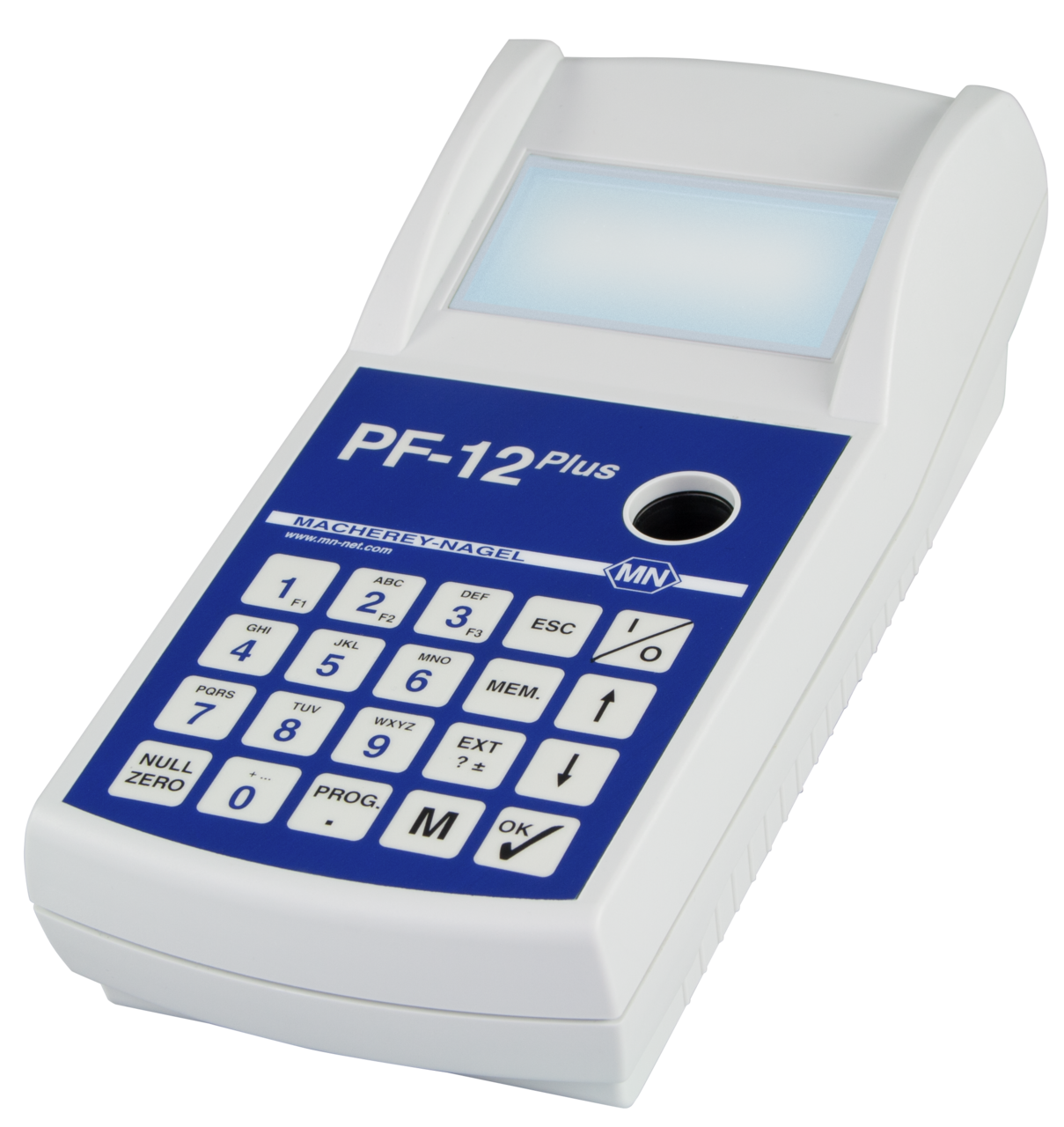

Compact photometer PF‑12Plus

Preview: Compact photometer PF‑12Plus Preview: Compact photometer PF‑12Plus Preview: Compact photometer PF‑12Plus
Compact photometer PF‑12Plus
Compact photometer PF‑12Plus
Compact photometer PF‑12Plus

$1,700.00 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 919250 0120261300
Package unit 1 Piece(s)
Quantity:
Do you have any questions?
Please contact us.
Technical data Safety data sheets Downloads
Technical data
The photometer PF‑12Plus is a device tailored for mobile water analysis. Equipped with more than... more
Close menu

The photometer PF‑12Plus is a device tailored for mobile water analysis. Equipped with more than 100 pre-programmed methods, it is the ideal companion for all fields of water and wastewater analysis. With its especially positioned 860 nm LED the PF‑12Plus enables nephelometric turbidity measurements (NTU) in the range of 1–1000 NTU. The unique NTU-Check controls turbidity in parallel to every measurement. NANOCOLOR tube tests and VISOCOLOR ECO tests can be evaluated with the PF‑12Plus.

Type Filter photometer with microprocessor control, self-test and auto-calibration
Light source Xenon lamp
Optical system Automatic filter wheel with 7 interference filters
Wavelength 345 nm / 436 nm / 470 nm / 540 nm / 585 nm / 620 nm / 690 nm plus 1 compartment for an additional filter, 860 nm LED for NTU measurement
Wavelength accuracy ± 2 nm, bandwidth at half transmission 10 nm–12 nm
Photometric range ± 3 E
Photometric accuracy ± 1 %
Long term stability < 0.002 A/h
Measuring modes More than 100 preprogrammed tests and special methods, absorbance, transmission, factor, standard, nephelometric turbidity measurement; 50 freely programmable methods
Preprogrammed tests NANOCOLOR tube tests, VISOCOLOR ECO tests and Powder Pillows
Turbidity measurement Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 1–1000 NTU
Cuvette slot Round tubes 16 mm OD
External light Insensitive to external light, fast measurements without cuvette slot cover
Data memory 1000 results, GLP conform
Display Backlit graphic display, 128 x 64 pixel
Auto off Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min, 60 min
Internal quality control With NANOCONTROL NANOCHECK 2.0
Operation Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists
Language DE / EN / FR / ES / IT / NL / HU / PL / PT / CZ / ID / SL / TR / MY
Interfaces USB 2.0
Update Free via internet / PC
Operating range 10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing)
Power supply Via USB power supply, standard or rechargeable batteries or accu-pack
Housing Shock-resistant, waterproof and dustproof, according to IP 68
Weight 0.7 kg
Dimensions (L x W x H) 215 x 100 x 65 mm
Warranty 2 Year(s)
CE certified Yes

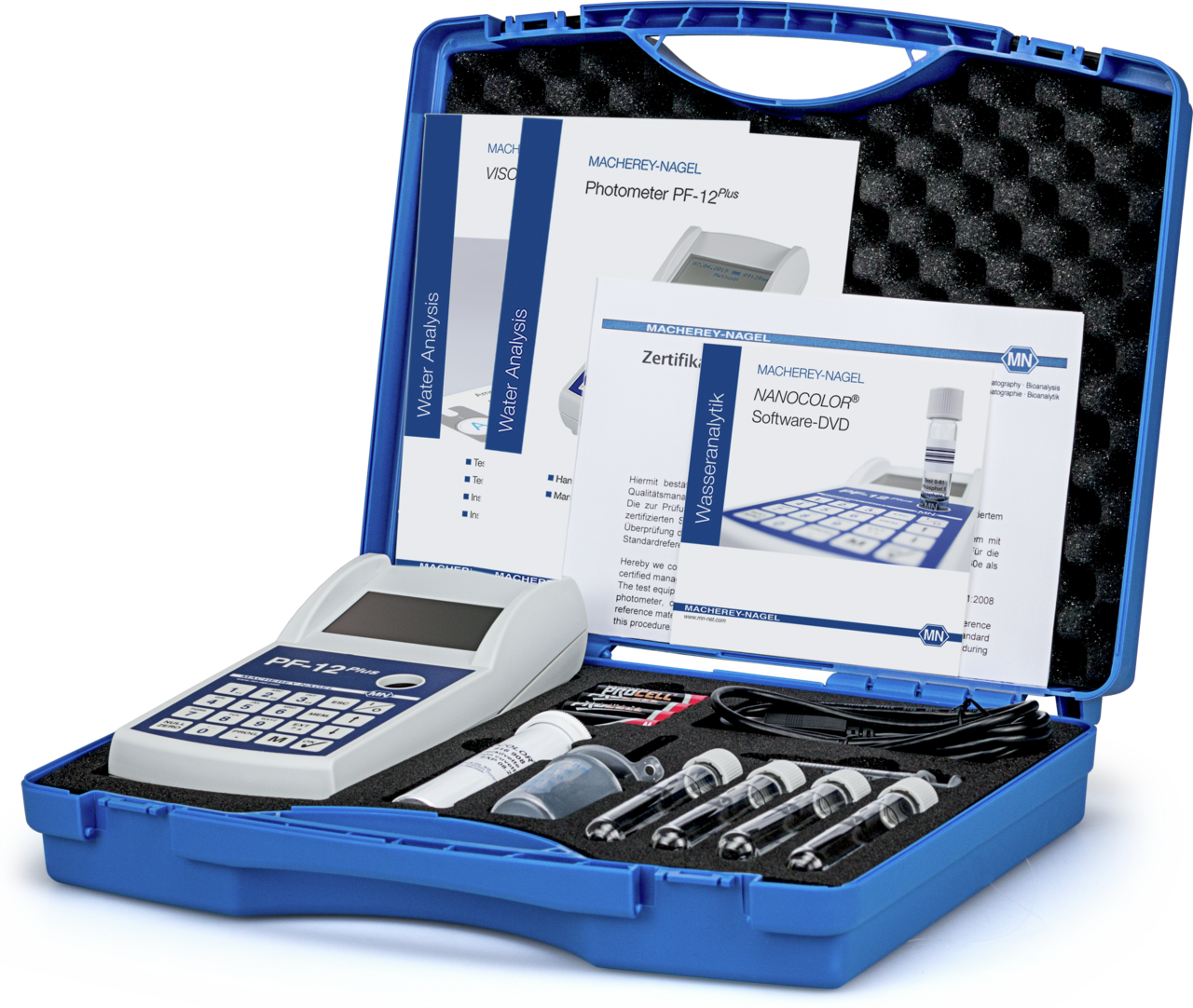

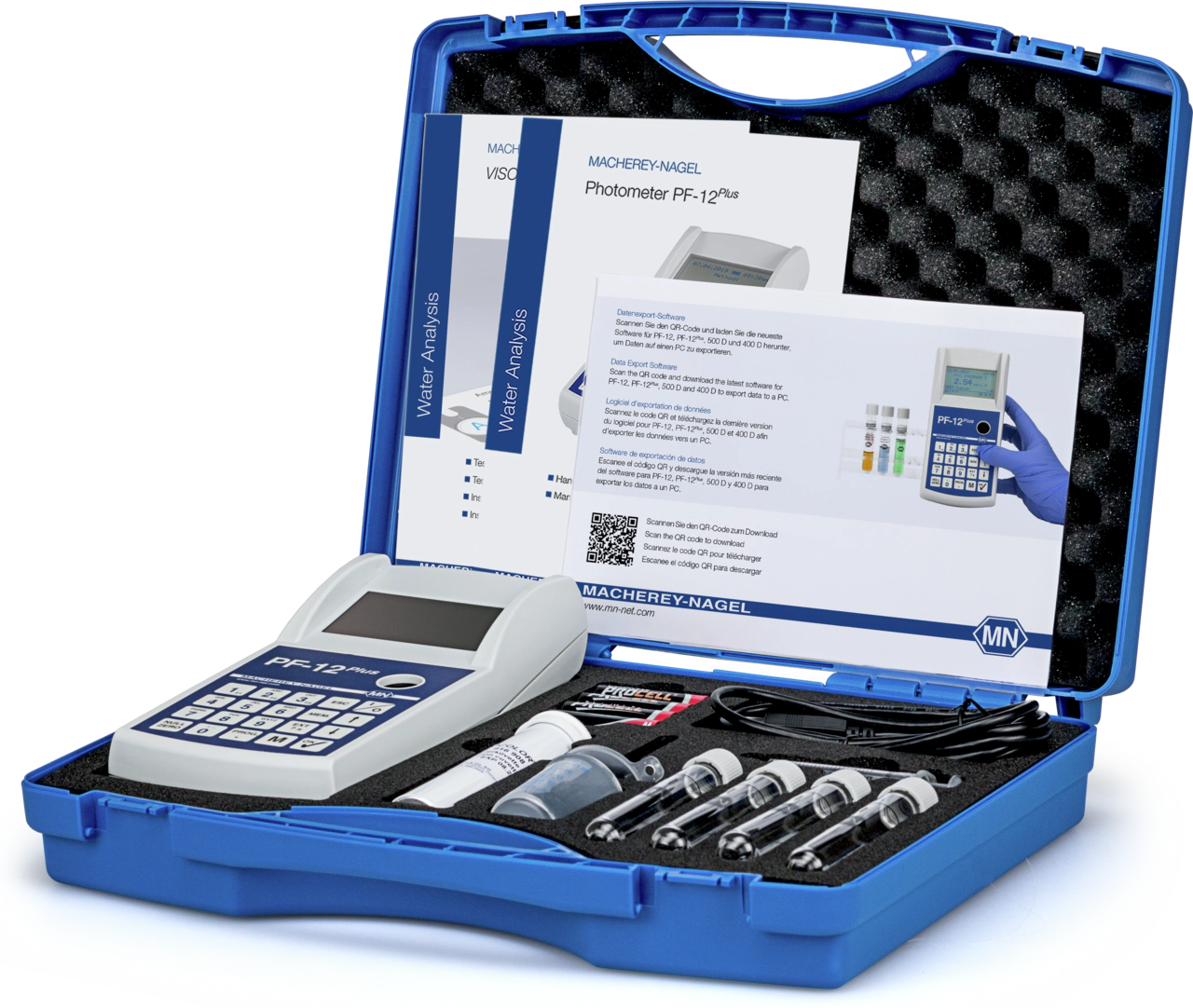

Scope of delivery Photometer, software DVD, manual, VISOCOLOR ECO test instructions, 4 batteries, 4 empty test tubes, funnel, beaker, syringe, USB cable, calibration cuvette, cleaning cloth and certificate in rugged case
Gross weight (incl. packaging) 2450 g / 5.4 lbs
Packaging dimensions 375 x 300 x 170 mm / 14.76 x 11.81 x 6.69 Inch
Hazardous material No
Safety data sheets
Close menu
919250_en-EN_GHS.pdf
Downloads
Close menu
Learn more
Learn more
Close menu
Continue reading
Related products Accessories
Related products
Heating block NANOCOLOR VARIO 4, double block Heating block NANOCOLOR VARIO 4, double block
Content 1 Piece(s)
REF 919300
$
Heating block NANOCOLOR VARIO C2, single block Heating block NANOCOLOR VARIO C2, single block
Content 1 Piece(s)
REF 919350
$
Spectrophotometer NANOCOLOR UV/VIS II, 190−1100 nm Spectrophotometer NANOCOLOR UV/VIS II, 190−1100 nm
Content 1 Piece(s)
REF 919600.1
$
Spectrophotometer NANOCOLOR VIS II, 320−1100 nm Spectrophotometer NANOCOLOR VIS II, 320−1100 nm
Content 1 Piece(s)
REF 919650.1
$
Tube test NANOCOLOR ortho- and total-Phosphate 15 Tube test NANOCOLOR ortho- and total-Phosphate 15
Content 20 Test(s)
REF 985080
$
Tube test NANOCOLOR ortho- and total-Phosphate 5 Tube test NANOCOLOR ortho- and total-Phosphate 5
Content 20 Test(s)
REF 985081
$
Tube test NANOCOLOR Ammonium 3 Tube test NANOCOLOR Ammonium 3
Content 20 Test(s)
REF 985003
$
Tube test NANOCOLOR Ammonium 10 Tube test NANOCOLOR Ammonium 10
Content 20 Test(s)
REF 985004
$
Tube test NANOCOLOR Nitrate 50 Tube test NANOCOLOR Nitrate 50
Content 20 Test(s)
REF 985064
$
Tube test NANOCOLOR COD 160 Tube test NANOCOLOR COD 160
Content 20 Test(s)
REF 985026
$
Tube test NANOCOLOR COD 1500 Tube test NANOCOLOR COD 1500
Content 20 Test(s)
REF 985029
$
Tube test NANOCOLOR total Nitrogen TNb 22 Tube test NANOCOLOR total Nitrogen TNb 22
Content 20 Test(s)
REF 985083
$
Tube test NANOCOLOR total Nitrogen TNb 220 Tube test NANOCOLOR total Nitrogen TNb 220
Content 20 Test(s)
REF 985088
$
NANOCOLOR Reagent case with PF‑12Plus NANOCOLOR Reagent case with PF‑12Plus
Content 1 Piece(s)
REF 919214
$
NANOCOLOR Reagent case for PF‑12Plus, empty NANOCOLOR Reagent case for PF‑12Plus, empty
Content 1 Piece(s)
REF 919215
$
Accessories 7
Reaction tubes 16 mm OD Reaction tubes 16 mm OD
Content 20 Piece(s)
REF 91680
$
Rechargeable battery pack for PF‑12 and PF‑12Plus Rechargeable battery pack for PF‑12 and PF‑12Plus
Content 1 Piece(s)
REF 919201
$
USB mains adaptor for PF‑12 / PF‑12Plus / PF‑3 USB mains adaptor for PF‑12 / PF‑12Plus / PF‑3
Content 1 Piece(s)
REF 919220
$

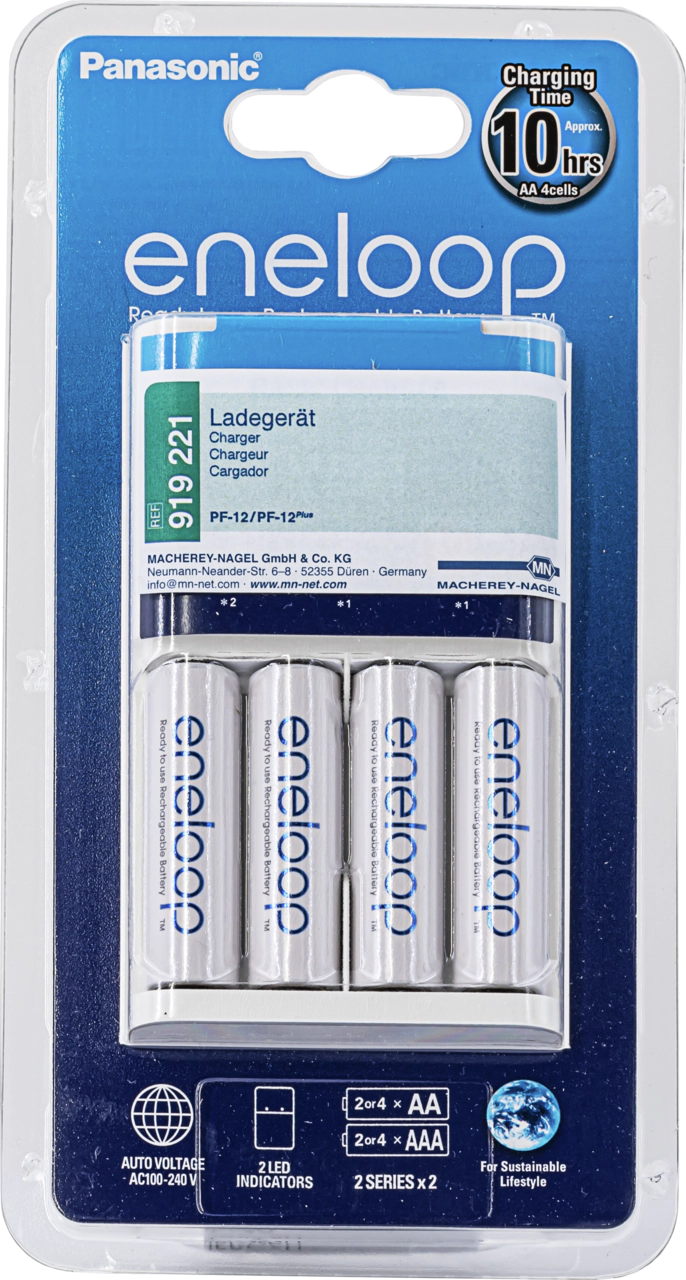

Battery charger, incl. 4 rechargeable batteries Battery charger, incl. 4 rechargeable batteries
Content 1 Piece(s)
REF 919221
$
Manual for PF‑12Plus Manual for PF‑12Plus
Content 1 Piece(s)
REF 919252
$

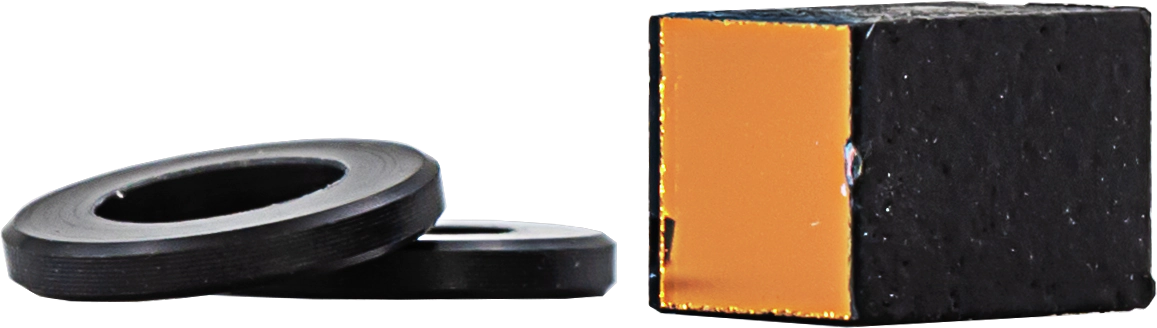

Interference filter 412 nm for filter photometers Interference filter 412 nm for filter photometers
