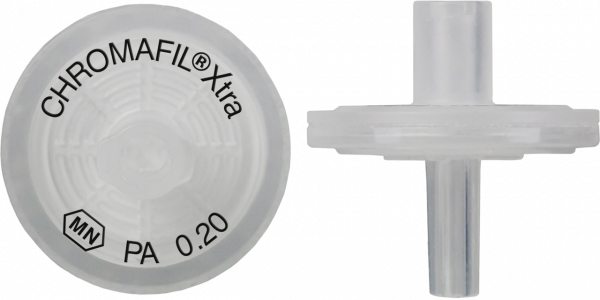

Syringe filters, labeled, CHROMAFIL Xtra PA, 13 mm, 0.2 µm

Syringe filters, labeled, CHROMAFIL Xtra PA, 13 mm, 0.2 µm
$129.00 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 729248 02201022403510
Package unit 100 Piece(s)
Quantity:
Do you have any questions?
Please contact us.
Technical data Certificates of analysis Downloads
Technical data
Inside the syringe filter polyamide is used as membrane material. The rather hydrophilic PA... more
Close menu

Inside the syringe filter polyamide is used as membrane material. The rather hydrophilic PA membrane is suitable for filtration of medium polar organic-aqueous liquids. Labeled for method validation and certification. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Method Filtration
Brand CHROMAFIL Xtra
Type Syringe filter, labeled
Housing type Wheel-like shaped housing
Hardware Polypropylene (PP) housing with filter membrane
Membrane type Polyamide (PA)
Membrane properties Hydrophilic
Filter type 13 mm
Effective membrane diameter* 15.6 mm
Membrane pore size 0.2 µm
Code type Labeled
Color code (top) Labeled
Color code (bottom) Colorless
Inlet Luer lock (top)
Outlet Luer tip (bottom)
Sample volume 1 ≤ 5 mL
Recommended application(s) For filtration of medium polar organic-aqueous liquids, Suitable for UHPLC, core-shell and HPLC columns packed with particles < 3 µm, GC, SFC
Sterile No
Binding capacity (proteins) Moderate–high
Dead volume 30 µL
Effective filtration area* 1.9 cm²
Storage temperature 15–25 °C
Hazardous material No
Remark *Standardized measurement since Mai 2023. The product has not been modified.
