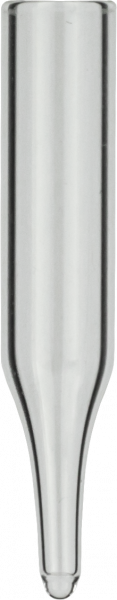

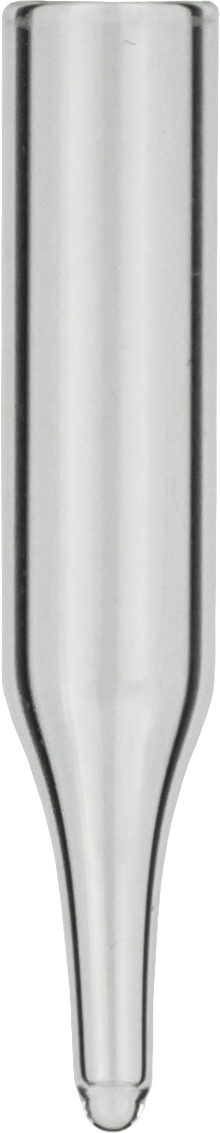

Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear

Preview: Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear Preview: Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear Preview: Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear Preview: Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear Preview: Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear Preview: Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear

$16.90 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 702716 02301023003099
Package unit 100 Piece(s)
Quantity:
Price overview
Quantity Price/unit
To 9 $16.90
From 10 $25.50
From 50 $23.05
Do you have any questions?
Please contact us.
Technical data Certificates of analysis (CoA / CoC) Downloads
Technical data
Conical insert for wide opening vials that offers ideal conditions for the needle for sample... more
Close menu

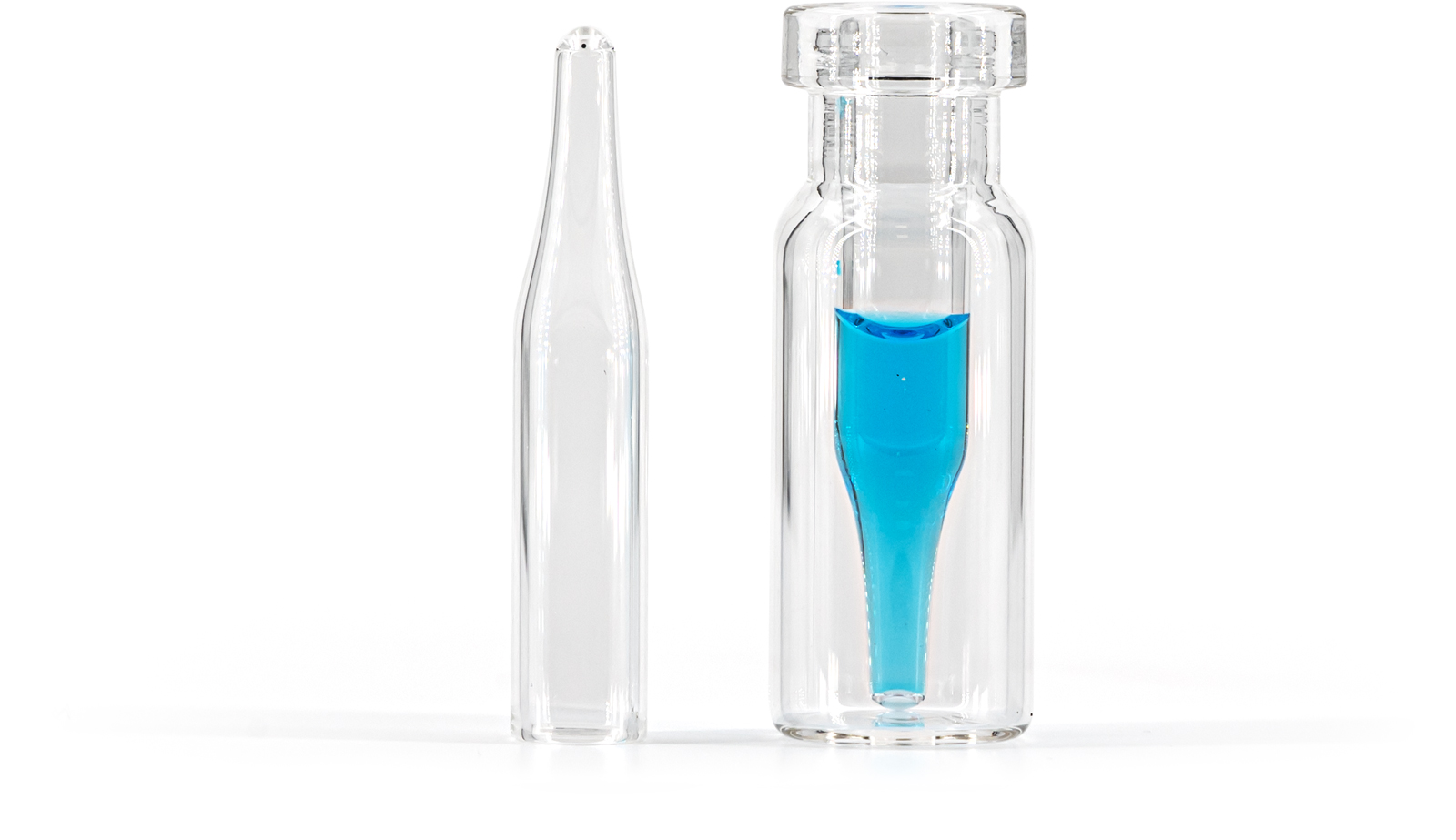

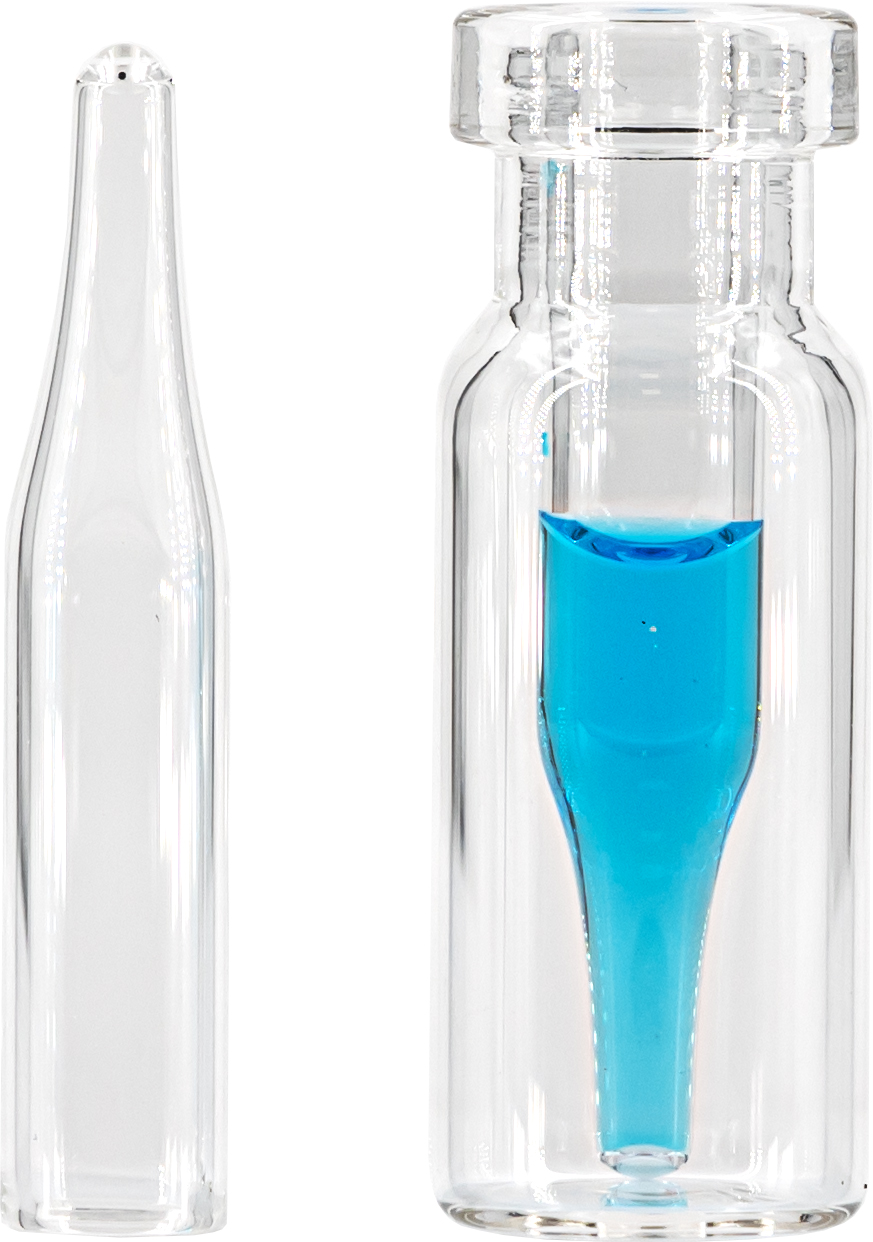

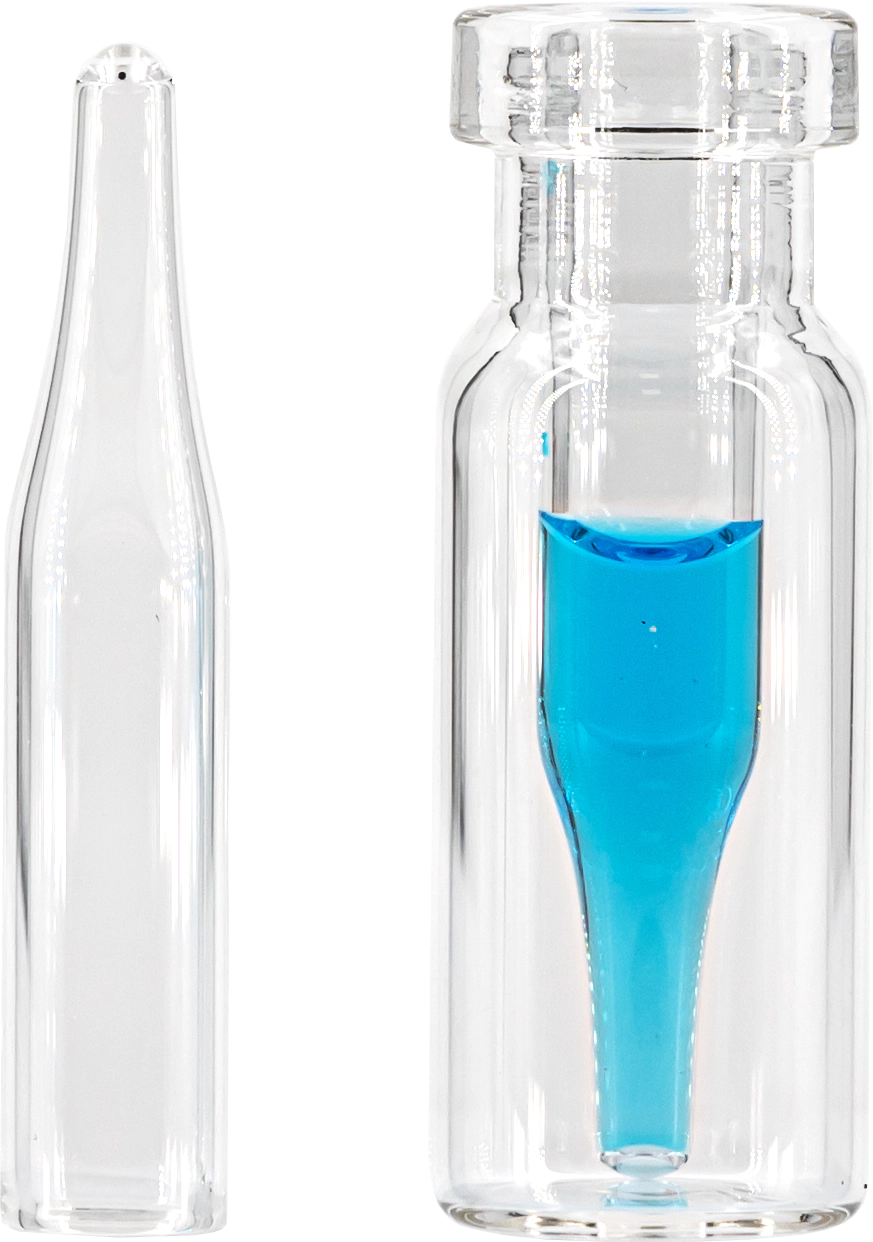

Conical insert for wide opening vials that offers ideal conditions for the needle for sample removal.

Vial category Micro-insert
Nominal diameter N 9, N 10, N 11
Vial material Clear glass, 1st hydrolytic class glass
Vial dimensions 6.0 mm x 31.0 mm
Vial diameter 6.0 mm
Vial height 31.0 mm
Usable volume 0.25 mL
Vial opening Wide
Writing patch No
Silanized No
Bottom shape of the vial Conical, 12 mm tip
Recommended application(s) Micro-sampling in GC and HPLC
Autosampler compatibility All autosamplers using 1.5 mL wide opening vials
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100 x insert for wide opening vials
Gross weight (incl. packaging) 66.5 g / 0.15 lbs
Packaging dimensions 80 x 20 x 140 mm / 3.15 x 0.79 x 5.51 Inch
Hazardous material No
