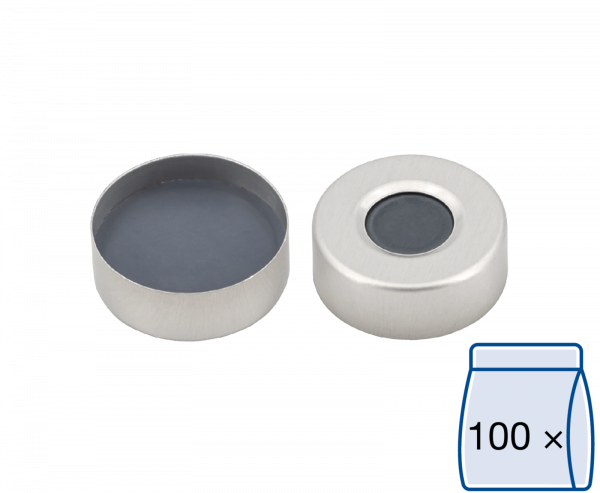

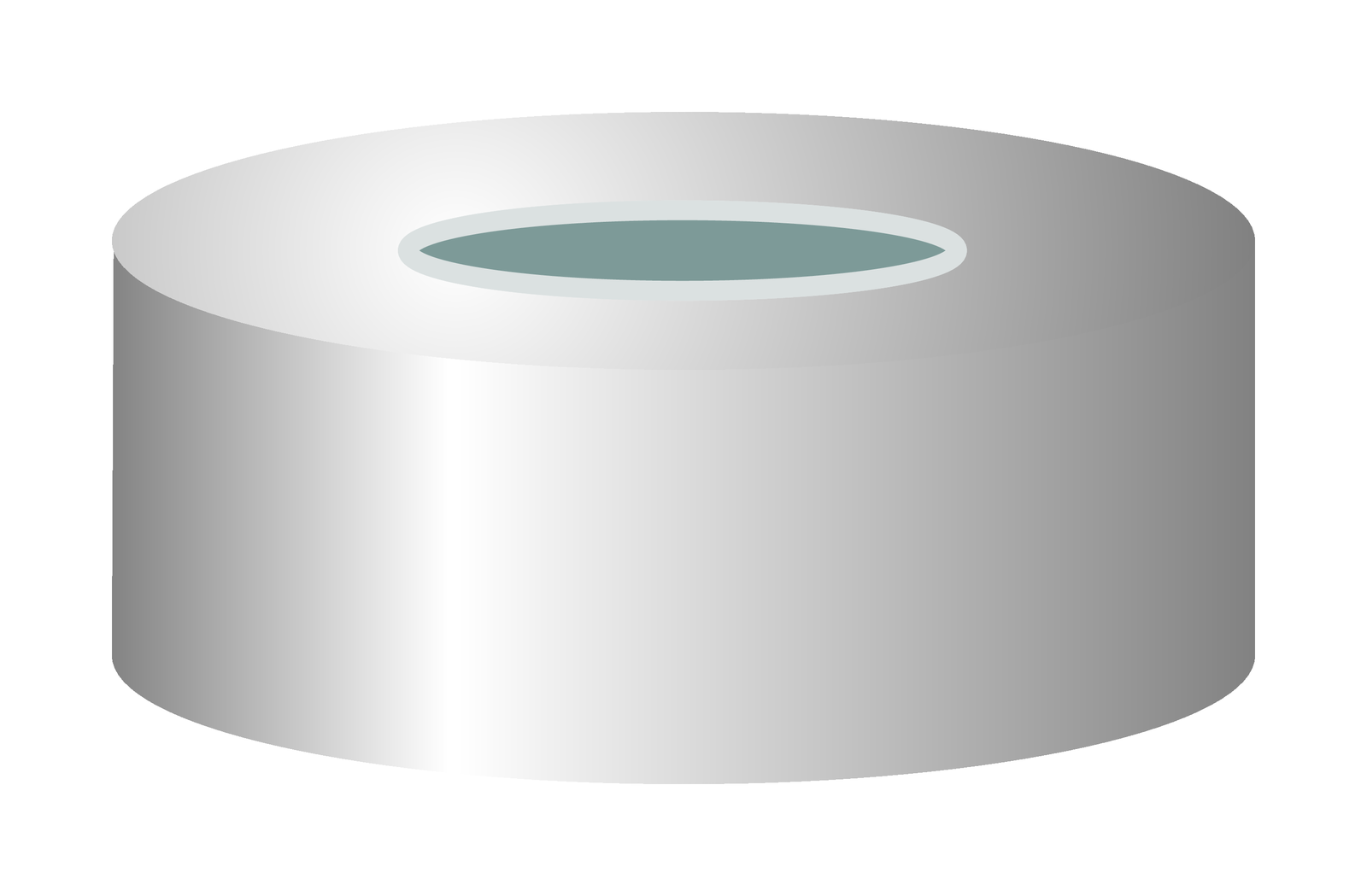

Crimp closure, N 20, alu., center hole, Butyl gray/PTFE gray, 3.0 mm

Preview: Crimp closure, N 20, alu., center hole, Butyl gray/PTFE gray, 3.0 mm Preview: Crimp closure, N 20, alu., center hole, Butyl gray/PTFE gray, 3.0 mm
Crimp closure, N 20, alu., center hole, Butyl gray/PTFE gray, 3.0 mm
Crimp closure, N 20, alu., center hole, Butyl gray/PTFE gray, 3.0 mm

$62.40 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 70234.9 02301023501020
Package unit 100 Piece(s)
Quantity:
Price overview
Quantity Price/unit
To 9 $62.40
From 10 $53.10
From 50 $47.90
Do you have any questions?
Please contact us.
Technical data Downloads
Technical data
Completely PTFE-laminated, molded Butyl/PTFE septum with a temperature resistance of -40 °C up... more
Close menu

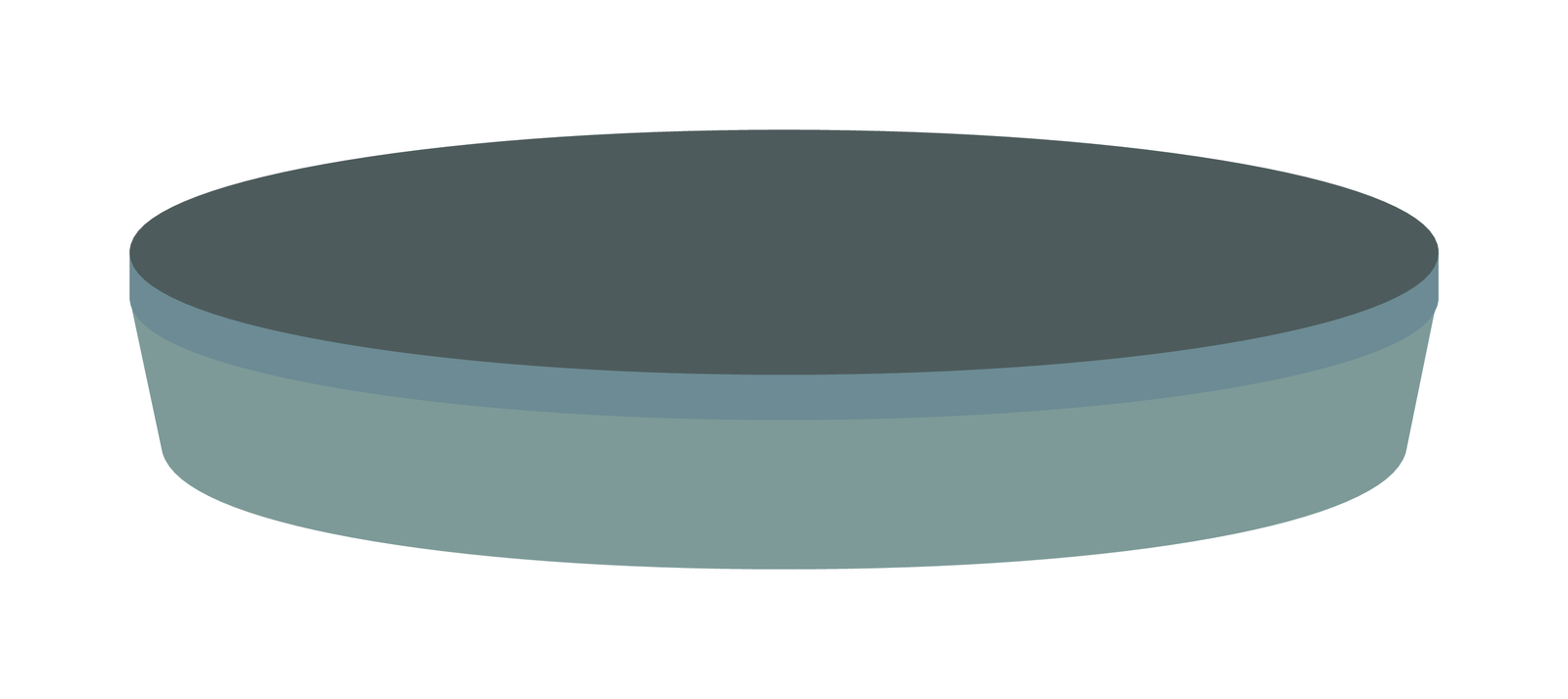

Completely PTFE-laminated, molded Butyl/PTFE septum with a temperature resistance of -40 °C up to 120 °C and a good analytical purity.

Closure type Crimp closure
Nominal diameter N 20
Assembling process Assembled
Cap material Aluminum
Cap color Silver
Cap hole Yes
Closure magnetic No
Septa material Butyl/PTFE
Colors of septa material Gray/gray
Septa thickness 3.0 mm / 118,1 mil
Septa hardness 50° shore A
Additional closure features Molded septum
Recommended application(s) Headspace
Autosampler compatibility PerkinElmer, Thermo Scientific HS850 / HS200 / TriPlus HS, Varian CP-9020/9025 / CP-9060 / Genesis
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100x N 20 ready assembled crimp closures
Gross weight (incl. packaging) 179.2 g / 0.39 lbs
Packaging dimensions 175 x 170 x 20 mm / 6.89 x 6.69 x 0.79 Inch
Hazardous material No
