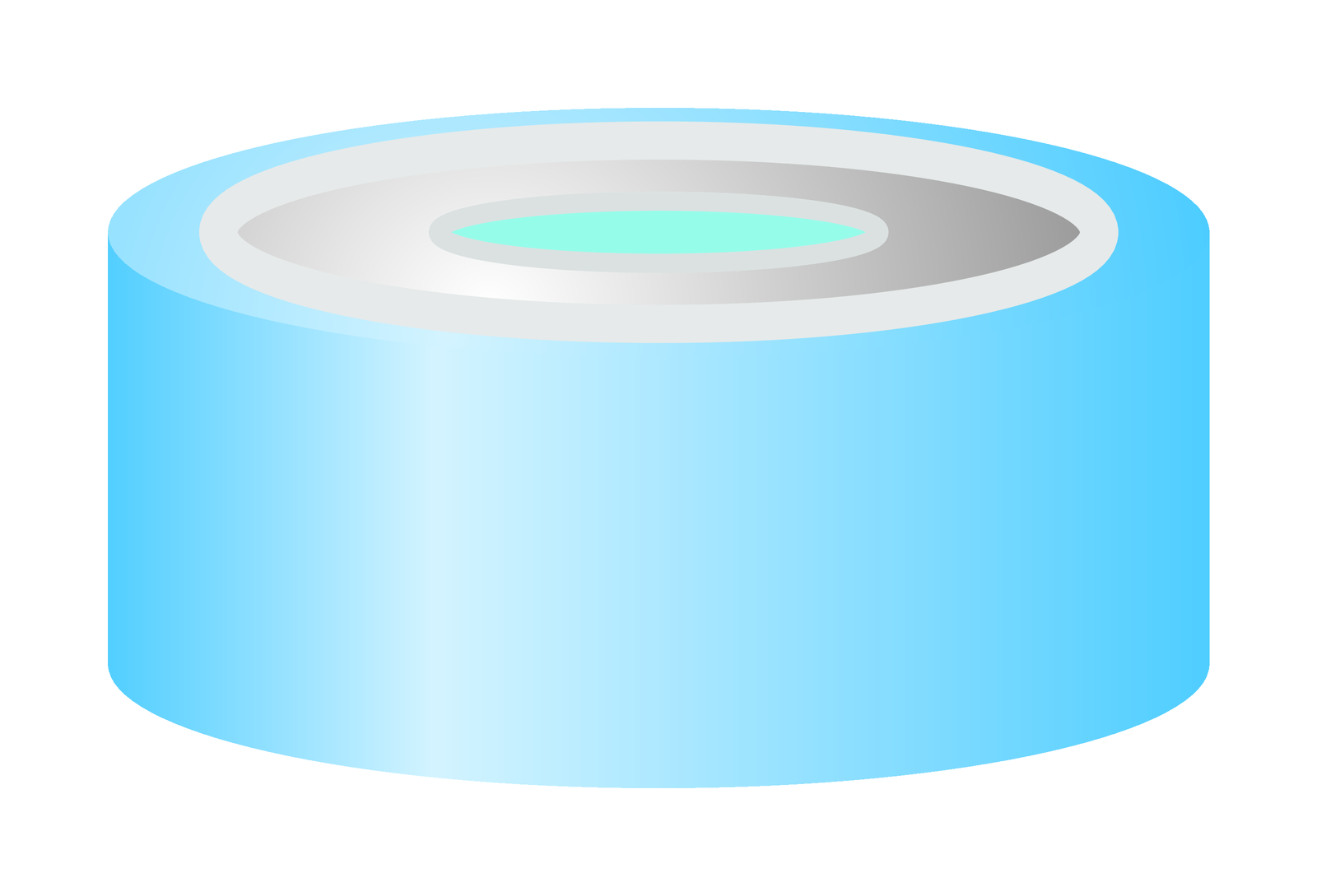

Crimp closure, N 20, alu., blue/tin,center hole,Sil. blue tr./PTFE colorl.,3.0mm

Preview: Crimp closure, N 20, alu., blue/tin,center hole,Sil. blue tr./PTFE colorl.,3.0mm Preview: Crimp closure, N 20, alu., blue/tin,center hole,Sil. blue tr./PTFE colorl.,3.0mm
Crimp closure, N 20, alu., blue/tin,center hole,Sil. blue tr./PTFE colorl.,3.0mm
Crimp closure, N 20, alu., blue/tin,center hole,Sil. blue tr./PTFE colorl.,3.0mm

$87.10 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 702834 02301023501020
Package unit 100 Piece(s)
Quantity:
Price overview
Quantity Price/unit
To 9 $87.10
From 10 $74.10
From 50 $67.60
Do you have any questions?
Please contact us.
Technical data Downloads
Technical data
Bi-metal crimp closures support transportation of the vial via magnet, as for e.g. in the CTC... more
Close menu

Bi-metal crimp closures support transportation of the vial via magnet, as for e.g. in the CTC Combi PAL, the Shimadzu AOC 5000/6000 or the Gerstel autosampler. They are generally more difficult to crimp/decap which is why Headspace screw neck vials N 18 may be a more convenient alternative. We recommend Silicone/PTFE septa as the optimal choice for Headspace, as they offer a temperature resistance form -60 °C up to 200 °C, highest analytical purity and excellent penetration properties. Septa are assembled, caps are ready-to-use. Septa are shown for illustration purposes only, images upside down.

Closure type Crimp closure
Nominal diameter N 20
Assembling process Assembled
Cap material Aluminum/tin
Cap color Blue/silver
Cap hole Yes
Closure magnetic Yes
Septa material Silicone/PTFE
Colors of septa material Blue transparent/colorless
Septa thickness 3.0 mm / 118,1 mil
Septa hardness 40° shore A
Additional closure features Temp. resistance -60 °C up to 200 °C / analytical purity - high / easy to penetrate / medium resealability
Recommended application(s) Headspace
Autosampler compatibility CTC Combi PAL (Agilent/PerkinElmer/Varian/Thermo Scientific), Shimadzu AOC 5000
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100x N 20 ready assembled crimp closures
Gross weight (incl. packaging) 161 g / 0.35 lbs
Packaging dimensions 118 x 166 x 50 mm / 4.65 x 6.54 x 1.97 Inch
Hazardous material No
