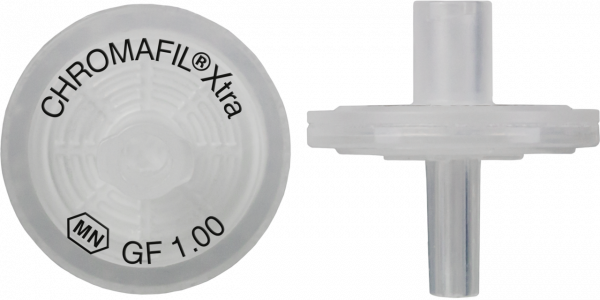

Syringe filter, labeled, CHROMAFIL Xtra GF, 1 µm

Syringe filter, labeled, CHROMAFIL Xtra GF, 1 µm
$129.00 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

729234 02201022405010
Package unit 100 Piece(s)
Quantity:
Do you have any questions?
Please contact us.
Inside the syringe filter a glass fiber is used as membrane material. The hydrophilic GF... more

Inside the syringe filter a glass fiber is used as membrane material. The hydrophilic GF membrane is a inert filter for solutions with high loads of particulate matter or for highly viscous solutions (e.g., soil samples, fermentation broths). The nominal pore size of 1 µm allows higher flow rates than small pore filters. Membrane material is also used as prefilter for CHROMAFIL combi filters, they prevent plugging of the main membrane. Labeled for method validation and certification. All CHROMAFIL filters are autoclavable (121 °C and 1.1 bar for 30 min)!

Method Filtration
Brand CHROMAFIL Xtra
Type Syringe filter, labeled
Housing type Wheel-like shaped housing
Hardware Polypropylene (PP) housing with filter membrane
Membrane type Glass fiber (GF)
Membrane properties Hydrophilic
Filter type 13 mm
Effective membrane diameter* 15.6 mm
Membrane pore size 1 µm
Code type Labeled
Color code (top) Labeled
Color code (bottom) Colorless
Inlet Luer lock (top)
Outlet Luer tip (bottom)
Sample volume 1 ≤ 5 mL
Recommended application(s) Allows higher flow rates than small pore filters, As prefilters for other CHROMAFIL syringe filters, For solutions with high loads of particulate matter or for highly viscous solutions (e.g., soil samples, fermentation broths), Inert filter
Sterile No
Binding capacity (proteins) Moderate–high
Dead volume 30 µL
Effective filtration area* 1.9 cm²
Storage temperature 15–25 °C / 59–77 °F
Packaging dimensions 110 x 110 x 105 mm / 4.33 x 4.33 x 4.13 Inch
Gross weight (incl. packaging) 205 g / 0.45 lbs
Hazardous material No
Remark *Standardized measurement since Mai 2023. The product has not been modified.
