SPE cartridges, CHROMAFIX HR-XAW, Large
$309.00 * $0.00 * (0% Saved)
*taxes and shipping not included
Delivery time approx. 5 working days
Item number: 731773 0210102060Content: 50 Piece(s)
Do you have any questions?Please contact us.

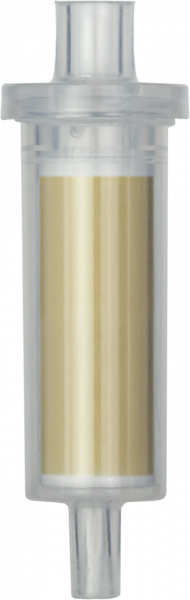

CHROMAFIX cartridges are PP cartridges with PE filter elements. Three different sizes with... more
CHROMAFIX cartridges are PP cartridges with PE filter elements. Three different sizes with different adsorbent weights - Small (0.4 mL), Medium (0.8 mL), Large (1.8 mL). Especially suited for convenient solid phase extraction of small sample volumes. Female Luer fitting at the inlet, male Luer tip as exit. Offers alternative way of handling using positive pressure by syringes or peristaltic pumps.
|Method||Solid phase extraction (SPE)|
|Base material||PS/DVB copolymer|
|Surface chemistry||Hydrophobic spherical polystyrene-divinylbenzene copolymer (PS/DVB) with secondary and tertiary ammonium modification, weak Mixed mode anion exchanger (WAX)|
|Mode||Mixed mode (RP and Ion exchange (IEX))|
|Hardware||Polypropylene (PP) cartridges with polyethylene (PE) filter elements|
|Column type||SPE cartridge|
|Column shape||Tubular syringe-shaped cartridge with Luer tip inlet and outlet|
|Cartridge size||L (1.8 mL)|
|Minimum filling quantity||360 mg|
|Particle size||85 µm|
|Particle type||Fully porous particles (FPP)|
|Specific surface according to BET||850 m²/g|
|Carbon content||Not available or proprietary|
|Filter element material||Polyethylene (PE)|
|Recommended application(s)||Acidic compounds, Active ingredients from strongly matrix contaminated samples (urine, plasma, serum), Perfluorinated surfactants, Strong acids with pKa < 1, Sulfonates|
|Pressure stability (max)||10 bar|
|Scope of delivery||50x (10x5) SPE cartridges, certificate of analysis|
