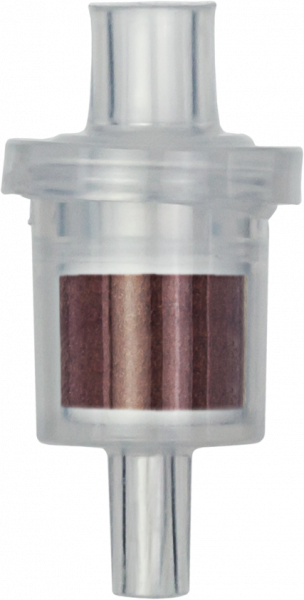

SPE cartridge, CHROMAFIX HR-P, S (0.4 mL)
$180.00 * $0.00 * (0% Saved)
*taxes and shipping not included
Delivery time approx. 5 working days
Item number: 731839 0210102060
Package unit 50 Piece(s) Do you have any questions?
Please contact us. CHROMAFIX cartridges are PP cartridges with PE filter elements. Three different sizes with... more
CHROMAFIX cartridges are PP cartridges with PE filter elements. Three different sizes with different adsorbent weights - Small (0.4 mL), Medium (0.8 mL), Large (1.8 mL). Especially suited for convenient solid phase extraction of small sample volumes. Female Luer fitting at the inlet, male Luer tip as exit. Offers alternative way of handling using positive pressure by syringes or peristaltic pumps.
| Method | Solid phase extraction (SPE) |
| Brand | CHROMAFIX |
| Base material | PS/DVB copolymer |
| Phase | HR-P |
| Surface chemistry | Hydrophobic polystyrene-divinylbenzene copolymer (PS/DVB) |
| Mode | Reversed phase (RP) |
| Hardware | Polypropylene (PP) cartridges with polyethylene (PE) filter elements |
| Column type | SPE cartridge |
| Column shape | Tubular syringe-shaped cartridge with Luer tip inlet and outlet |
| Cartridge size | S (0.4 mL) |
| Minimum filling quantity | 50 mg |
| Particle shape | Irregular |
| Particle size | 50–100 µm |
| Particle type | Fully porous particles (FPP) |
| Specific surface according to BET | 1200 m²/g |
| Endcapped | No |
| pH stability | 1.0–14.0 |
| Carbon content | Not available or proprietary |
| Filter element material | Polyethylene (PE) |
| Recommended application(s) | Aromatic compounds, Nitroaromatics from water, PAHs from oil, Pesticides from water, Phenols from water |
| Pressure stability (max) | 10 bar / 145 psi |
| Storage temperature | 15–25 °C / 59–77 °F |
| Scope of delivery | 50x (10x5) SPE cartridges, certificate of analysis |
| Gross weight (incl. packaging) | 220 g / 0.49 lbs |
| Packaging dimensions | 145 x 145 x 102 mm / 5.71 x 5.71 x 4.02 Inch |
| Hazardous material | No |
