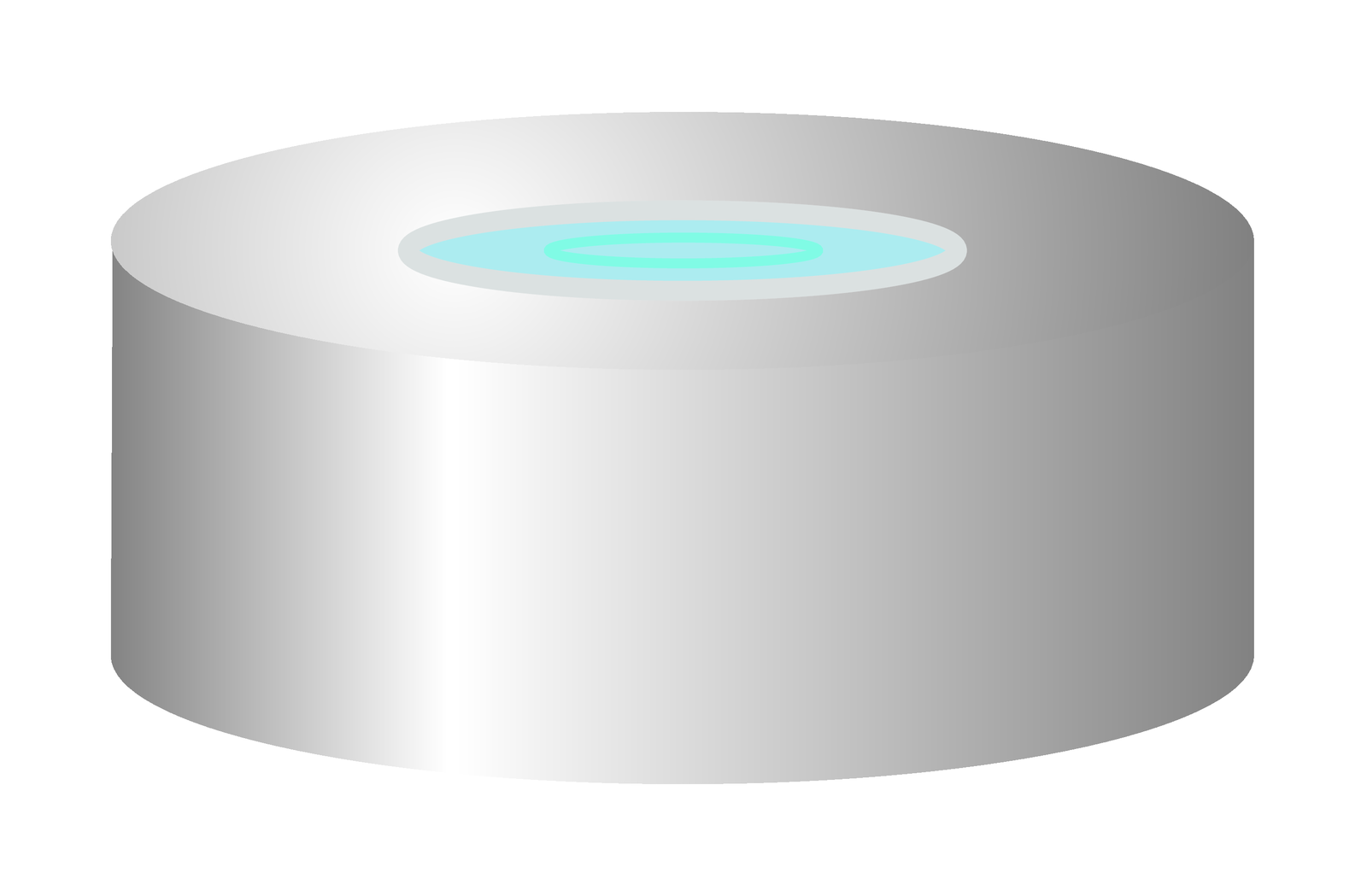

Crimp closure, N 20, alu., c. hole, Sil. blue tr./PTFE colorl. (Pharma-Fix), 3mm

Crimp closure, N 20, alu., c. hole, Sil. blue tr./PTFE colorl. (Pharma-Fix), 3mm
$61.75 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 702340 02301023501020
Package unit 100 Piece(s)
Quantity:
Price overview
Quantity Price/unit
To 9 $61.75
From 10 $52.55
From 50 $47.35
Do you have any questions?
Please contact us.
Technical data Certificates of analysis (CoA / CoC) Downloads
Technical data
These closures with a molded, high purity Silicone/PTFE septa are only laminated with PTFE in... more
Close menu

These closures with a molded, high purity Silicone/PTFE septa are only laminated with PTFE in the contact area with the sample. Thus the elastomeric Silicone can achieve on the vial's glass rims a very tight seal, while in comparison a completely PTFE covered septum would have a very slippery surface on the glass and could easily be twisted around.

Closure type Crimp closure
Nominal diameter N 20
Assembling process Assembled
Cap material Aluminum
Cap color Silver
Cap hole Yes
Closure magnetic No
Septa material Silicone/PTFE
Colors of septa material Blue transparent/colorless
Septa thickness 3.0 mm / 118,1 mil
Septa hardness 45° shore A
Additional closure features Temp. resistance -60 °C up to 200 °C / analytical purity - high / soft to penetrate / medium resealability /excellent sealing properties due to Pharma-Fix design of molded septum
Recommended application(s) Headspace
Autosampler compatibility Agilent, PerkinElmer, Shimdazu HTA 200 H / HSS-2B, Thermo Scientific HS850 / HS200 / TriPlus HS, Varian
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100x N 20 ready assembled crimp closures
Gross weight (incl. packaging) 154 g / 0.34 lbs
Packaging dimensions 140 x 150 x 20 mm / 5.51 x 5.91 x 0.79 Inch
Hazardous material No
