IsoPure – magnetic rod nucleic acid extraction system
IsoPure devices automate magnetic bead based DNA/RNA extraction with a compact benchtop platform. Easy to set up and operate, they perform mixing, bead transfer, washing, and elution automatically, reducing hands-on time. Purification is completed in 20–60 minutes, depending on the NucleoMag kit and protocol.
Three options for maximal flexibility.
IsoPure 24
- Up to 24 samples
- Total volume: 50-10,000 µL
IsoPure 96
- Up to 96 samples
- Total volume: 50-1,000 µL
Advantages
Automating repetitive work processes can positively influence your work in many ways. Benefit from consistent, on-time output, reproducibility, standardization, increased hands-off time, and documented data integrity!
The MACHEREY‑NAGEL automation specialists have developed verified methods for nucleic acid extraction from various sample materials. All protocols can be requested and are free of charge
The IsoPure platforms are open instruments that allow the modification of any protocol parameters to your needs (e.g. volume, temperature, mixing and magnetic separation conditions).
Personal application support is available before and after purchasing MACHEREY-NAGEL products. Our automation experts, R&D, and technical support specialists assist with script generation and method adaptation to ensure smooth processing. Please contact us for personal assistance.
- Fast, reliable and reproducible DNA / RNA extractions
- Compatible with all popular magnetic bead kits
- Process up to 16 samples in parallel
- Total volume 50µl – 1,000µl
- Compact footprint (8" x 10")
- Android app compatible
- UV sterilization function
The IsoPure Mini – Automation for low-throughput
| IsoPure Mini | |
| Capacity | 1–16 samples |
| Total volume | 50–1,000 µL |
| Operation | Bluetooth-enabled android device (not included) |
| Power supply | 120–240 V AC |
| Dimensions | 7.9 x 10.2 x 11.8 in |
For more product specifications, application notes, and verified scripts, visit the IsoPure Mini product page.

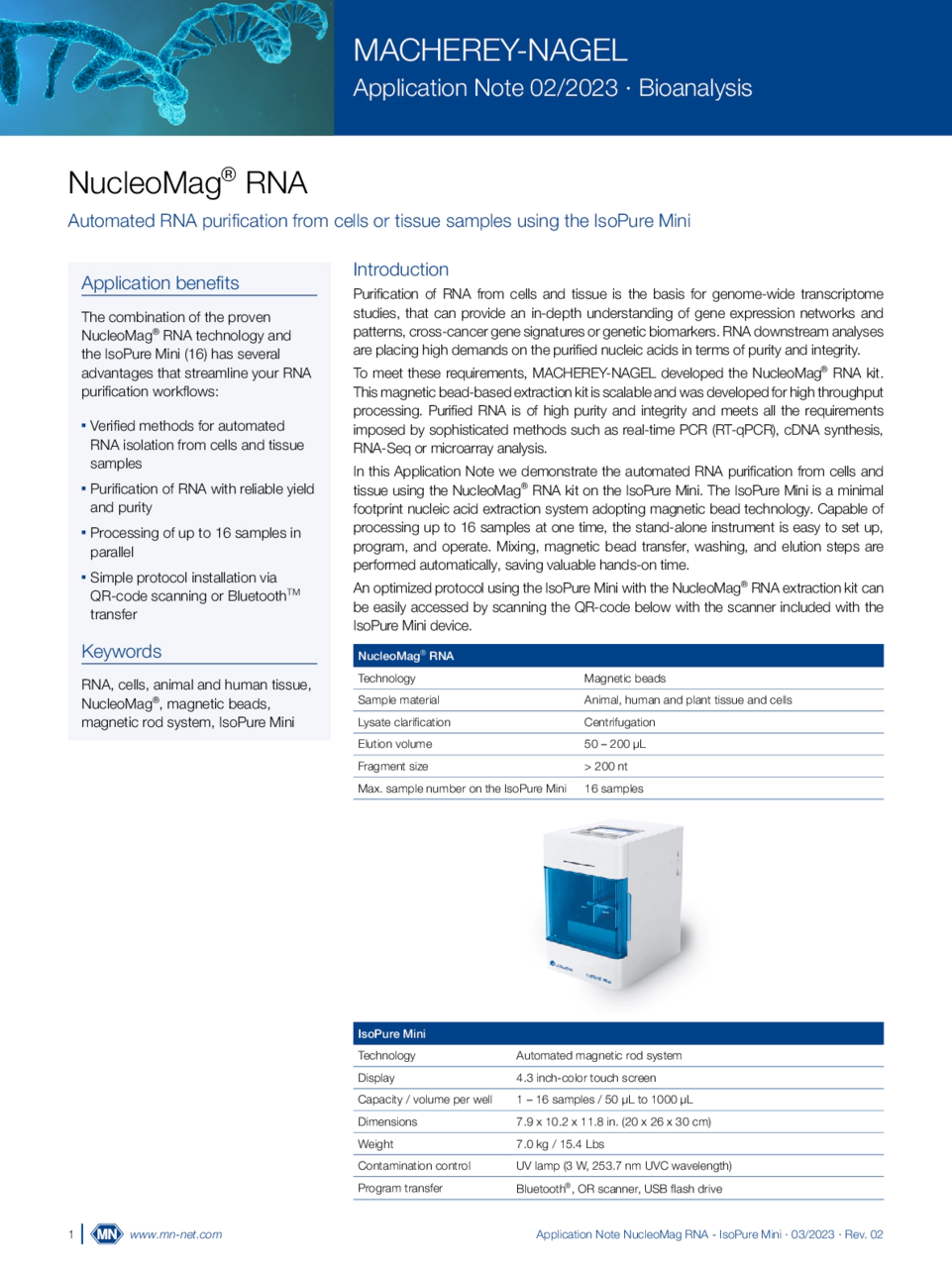

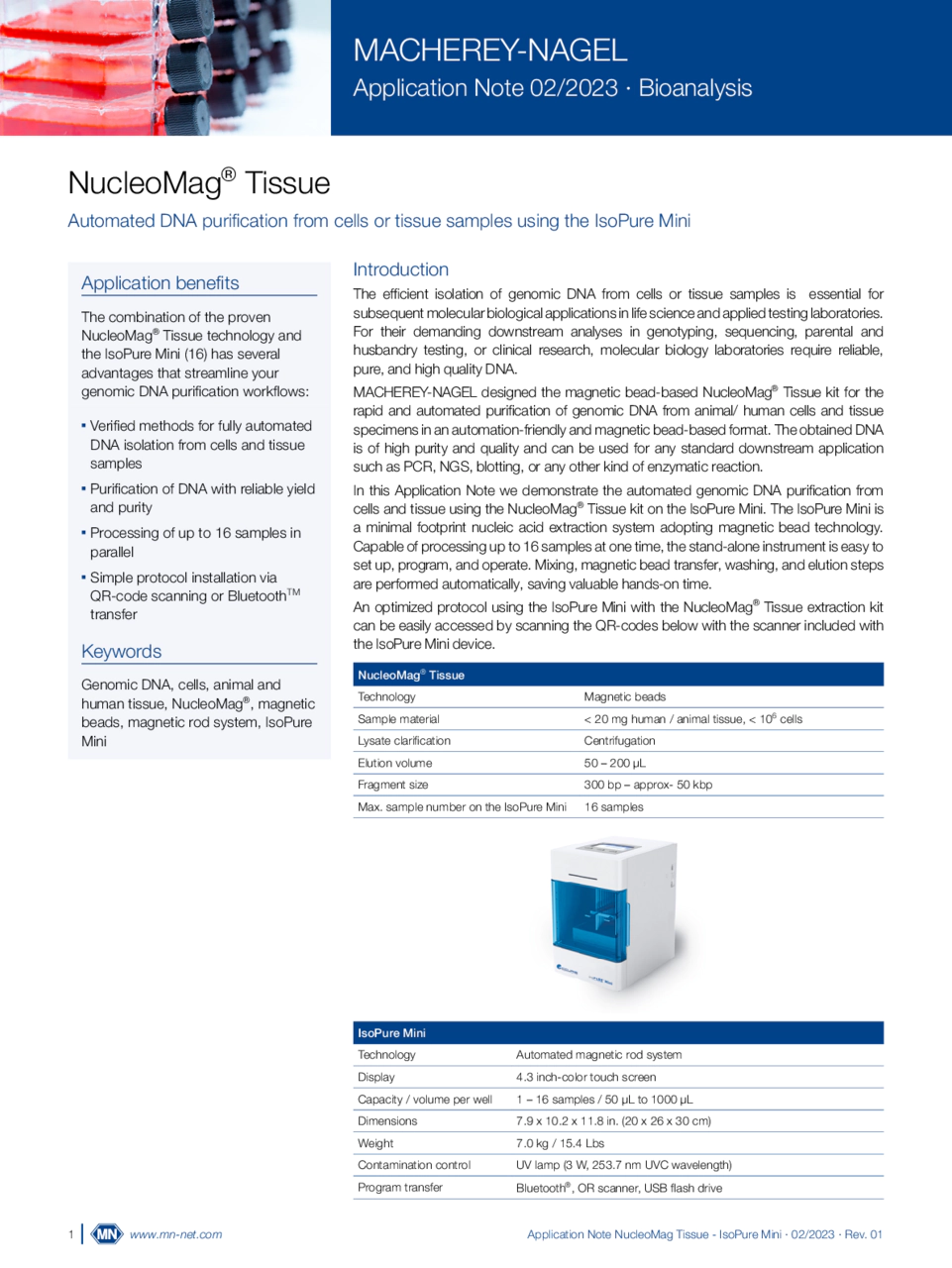

Automation made simple – Verified scripts and application notes
The IsoPure Mini is ideally suited for processing NucleoMag kits. Verified scripts and protocols are accessible free of charge for all magnetic bead-based DNA / RNA extraction kits. The scripts can be easily imported on the IsoPure Mini using the provided QR code and the scanner or app.
Click the buttom for detailed protocol information with description of procedure steps, loading schemes, and required consumables.
Ordering Information
Content 1 Piece(s)
- Fast, reliable and reproducible DNA / RNA extractions
- Process up to 24 samples in parallel
- Process large volumes (up to 10 mL)
- 8-position carousel with 2 heating blocks
- Touch screen panel for on-board programming and operation
- UV sterilization function
The IsoPure 24 – Automation for large volumes
The IsoPure 24 nucleic acid purification system also utilizes magnetic bead technology but in a 24-well format capable of accommodating larger sample volumes (up to 10 mL working volume). Nucleic acids can be extracted in 30-60 minutes, depending on the kit and script.
| IsoPure 24 | |
| Capacity | 1–24 samples |
| Total volume | 50–10,000 µL |
| Operation | 7-inch touch screen, 3 shortcut buttons and mouse is available |
| Lysis temperature | RT. - 120 °C |
| Elution temperature | RT. - 120 °C |
| Power supply | 300 W |
| Dimensions | 56 cm×62 cm×50 cm |
You have questions about the device? Please contact us for assistance!
Ordering Information
Content 1 Piece(s)
- Fast, reliable and reproducible DNA / RNA extractions
- Process up to 96 samples in parallel
- Process large volumes (50 µL to 1,000 µL)
- 8-position carousel with 2 heating blocks
- Touch screen panel for on-board programming and operation
- UV sterilization function
The IsoPure 96 – Automation for high-throughput
The IsoPure 96 is a high-throughput automated platform for magnetic bead based DNA/RNA extraction, processing up to 96 samples simultaneously. It automates mixing, bead transfer, washing, and elution to improve efficiency, reproducibility, and hands-on time. Purification is completed in 20–60 minutes, depending on the NucleoMag kit and protocol. This robot features a touchscreen interface, built-in UV sterilization, and an 8-position plate carousel with two heating blocks.
| IsoPure 96 | |
| Capacity | 1–96 samples |
| Total volume | 50–1,000 µL |
| Operation | 7-inch touch screen, 3 shortcut buttons and mouse is available |
| Lysis temperature | RT. - 120 °C |
| Elution temperature | RT. - 120 °C |
| Power supply | 300 W |
| Dimensions | 56 cm×62 cm×50 cm |
You have questions about the device? Please contact us for assistance!
Ordering Information
Content 1 Piece(s)
The perfect match: MACHEREY-NAGEL's nucleic acid extraction solutions
Magnetic bead-based purification has become the preferred method for isolating DNA, RNA, and other target molecules from a variety of biological sample types. Explore our recommended kits for magnetic-bead based nucleic acid extraction.
Contact us for Support
MACHEREY-NAGEL supplies both the reagents and the instrument. Therefore, one call answers any questions you may have about assay chemistries, instrument performance, script support and automation service.
Please contact us for personal assistance!
