NANOCOLOR device updates
Keep your NANOCOLOR devices updated. The following updates are available:

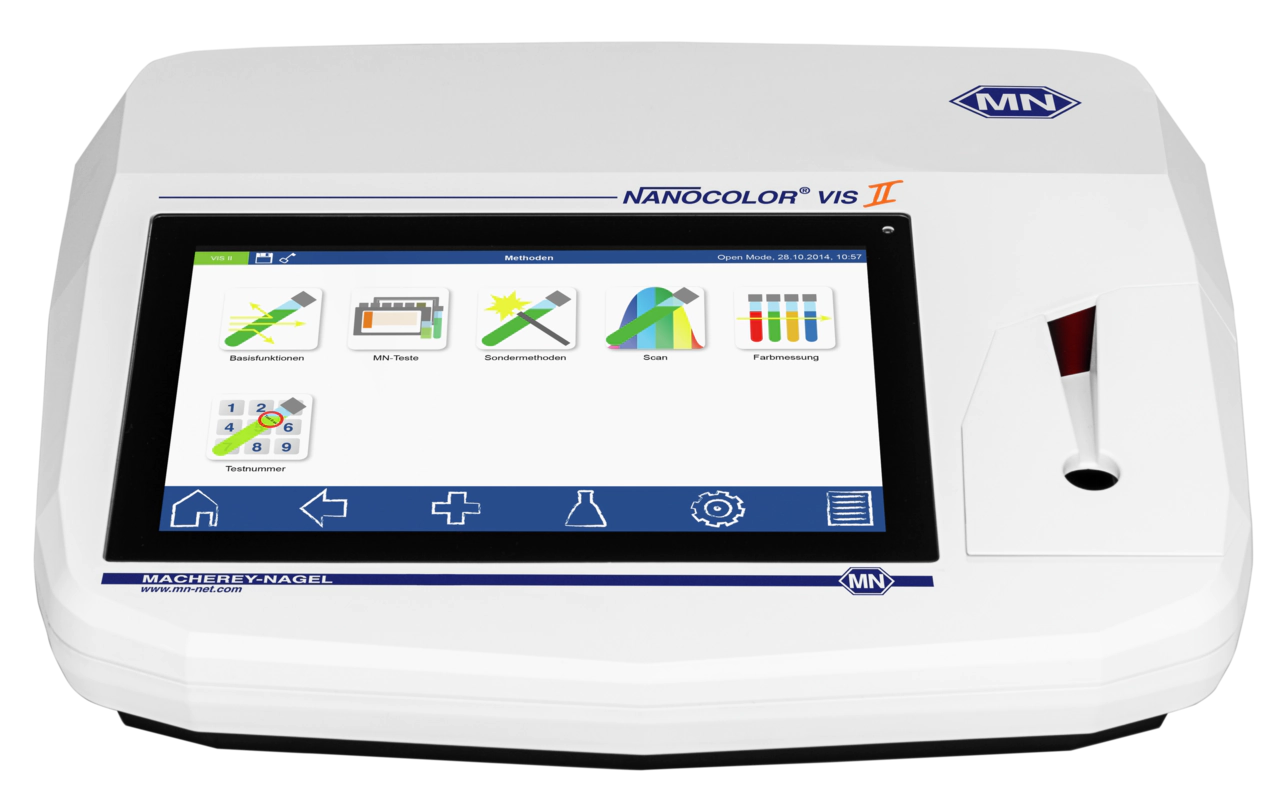

NANOCOLOR UV/VIS II and NANOCOLOR VIS II
Please download the current update files here:
Firmware update Version 1.15.5 Dated 19.12.2024
Operating system update Version 7.0.2864.4 Dated 18.05.2021
You can update your NANOCOLOR spectrophotometer easily with the present firmware version. Before starting a system update, please make sure to safe your data and user-defined special methods.
In our Update Information you can find more detailed information about the update and the update process.
NANOCOLOR Advance
Please download the current update file here:
Fimware update Version 2.1.1 Dated 06.12.2024
You can update your NANOCOLOR Advance easily with the present firmware version. Before starting a system update, please make sure to safe your data and user-defined special methods.
Important notes:
If you are updating from a version < 2.0.0, you must first update to version 2.0.0. The update file for version 2.0.0 is included in the download file.
In our Update Information you can find more detailed information about the update and the update process.

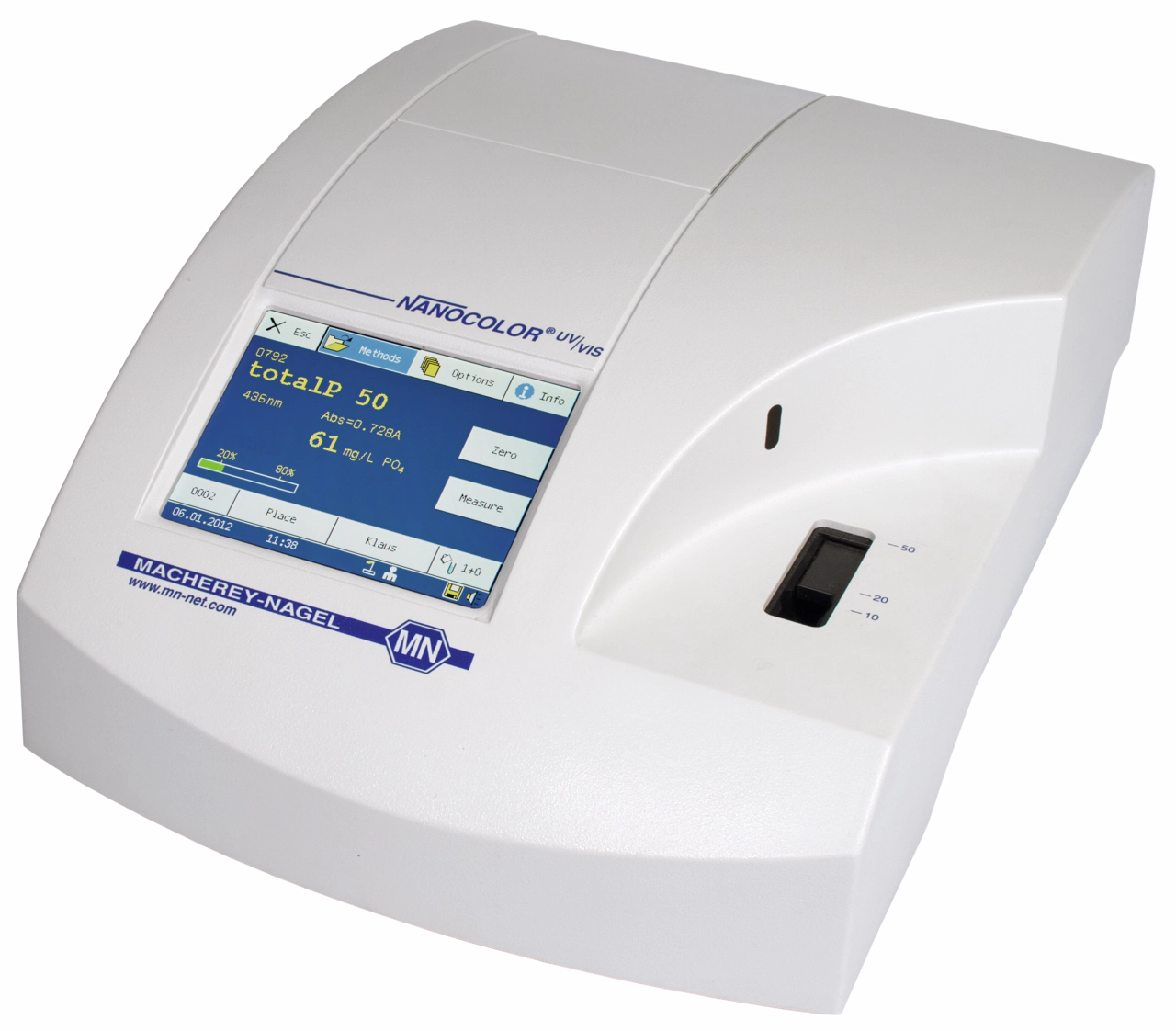

NANOCOLOR UV/VIS and NANOCOLOR VIS
Please download the current update file here:
Version 8.0.9 (NANOCOLOR UV/VIS)
Version 6.0.9 (NANOCOLOR VIS)
Dated 30.07.2024
You can update your NANOCOLOR spectrophotometer easily with the present firmware version. Before starting a system update, please make sure to safe your data and user-defined special methods.
Important notes:
For the NANOCOLOR UV/VIS we recommend an update of the device for all users using firmware version 8.0.0 or 8.0.1! An error in the data memory can result in an incorrect documentation of the chemical form (e.g. PO4-P).
In our Update Information you can find more detailed information about the update and the update process

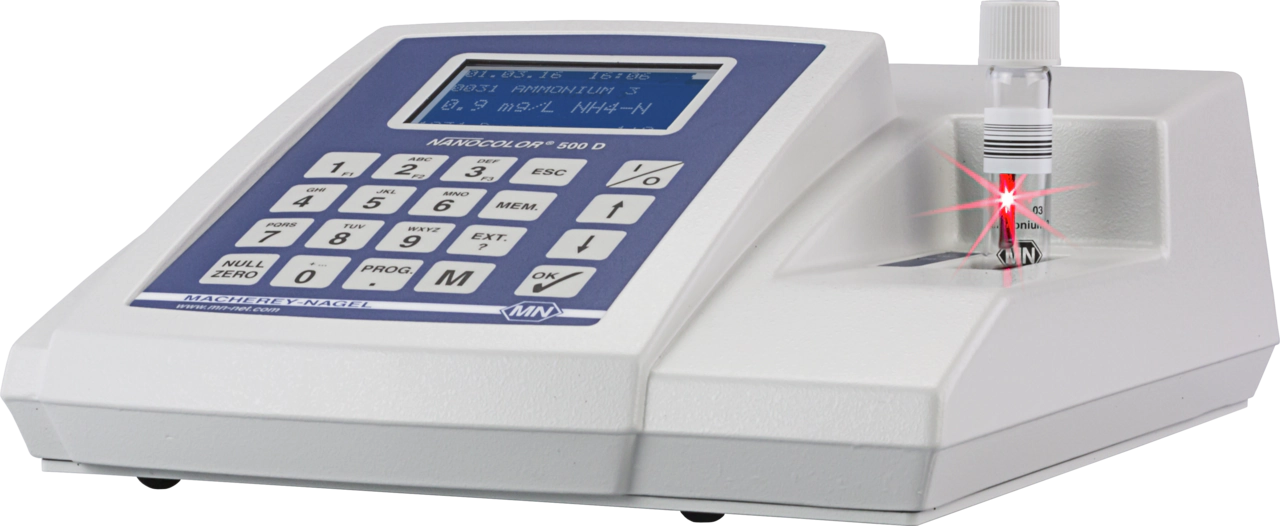

NANOCOLOR 500 D, NANOCOLOR 400 D, Compact photometer PF-12
Please download the current update file here:
Version 3.71 (NANOCOLOR 400 D)
Version 2.72 (NANOCOLOR 500 D)
Version 2.70 (PF‑12)
Dated 23.09.2021
You can update your NANOCOLOR 500 D, 400 D and PF‑12 photometer easily with the present firmware version. For this update you ned the update software described here. If you do not yet use this software on your computer, you must first download and execute the software.
If you are already using the update software, you must only refresh the update files from the programme.
In both cases, please follow the update instructions for the update software.
Update software:
Version 4.2.0.0 Dated 23.03.2020
How to check the present firmware version from your photometers:
Please check if a update from your photometer is necessary. Therefore have a look on the welcome page of your photometer. The present firmware version is displayed for 2 seconds during the start of the photometer.

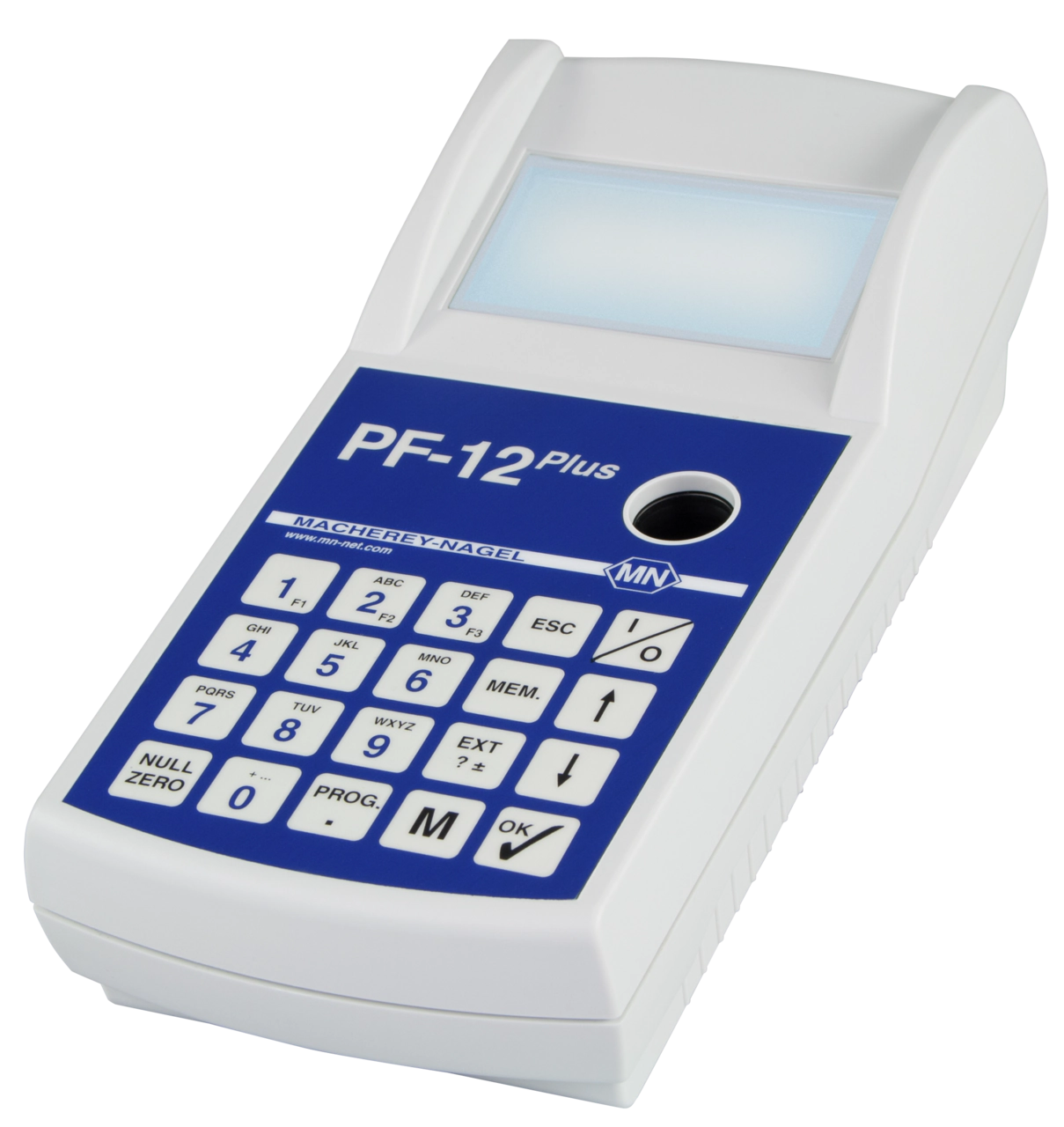

Compact photometer PF‑12 Plus
Please download the current firmware update file here:
Version 3.0.1
In our Update Information you can find more detailed information about the update and the update process.
Please download the current parameter update file here:
Important note
Before updating the parameters to version 12, it is essential to update the firmware of the PF-12 Plus to a firmware version ≥3.0.1.
In our Update Information you can find more detailed information about the update and the update process.

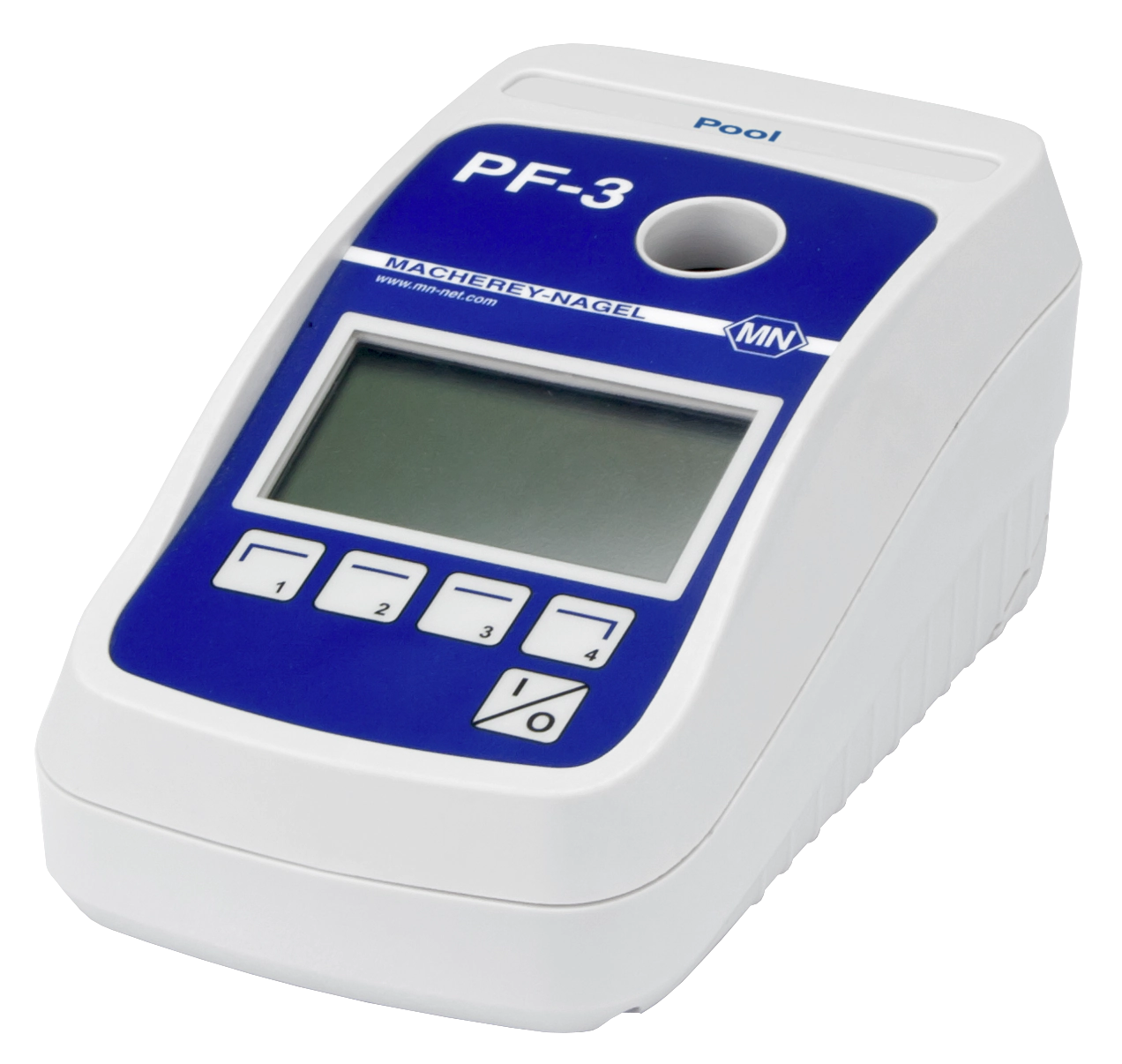

Compact photometer PF‑3
Please download the current firmware update file here:
Version 3.0.7
In our Update Information you can find more detailed information about the update and the update process.
Please download the current parameter update file here:
NANOCOLOR PC-Software
Easy data managment and a wide range of special features with NANOCOLOR PC-software. For the following photometers is the PC software online available:
Software not working? Try our trouble shooting guide (EN)
Data export software for NANOCOLOR 500 D, NANOCOLOR 400 D, PF‑12 Plus and PF‑12
Version 5.4.9
For more detailed information, please see the Manual for Data export software.
NANOCOLOR PC-Software for Spectrophotometer NANOCOLOR UV/VIS and NANOCOLOR VIS
Version 7.7.6
Dated 22.08.2025
Important notes:
An update to the new software version 7.0.0.0 requires also a firmware update of the spectrophotometer to the version 4.0.0 (NANOCOLOR VIS) and 6.0.0 (NANOCOLOR UV/VIS) and conversely. There will no longer be a downward compatibility with our old spectrophotometer firmware versions! The software will display a warning in case of compatibility problems.
If you are using an older firmware version on your photometer, contact MACHEREY-NAGEL.
For more detailed information, please see the Manuals for NANOCOLOR PC-Software for Spectrophotometers:
Manual NANOCOLOR PC-software
Quick User Guide
Manual color measurement
Manual enzymatic tests
Manual Brewery analysis
NANOCOLOR Heating block update
For NANOCOLOR VARIO 4, NANOCOLOR VARIO C2, NANOCOLOR VARIO C2 M, NANOCOLOR VARIO HC
Please download the current firmware update file here:
Important notes
Please note that from heating block software version 05.00.00.10 onwards, the pc software is no longer supported.
Before conducting a system update, the new update file must be stored on a USB stick. (The update-file must be stored in the root directory of the USB stick; sub-files will not be found by the photometer!)
Perform the update:
Download the update ZIP file via the link above and extract the ZIP file on your computer.
Copy the .hex update file to the upper level of a USB-stick and connect the USB-stick to the device.
The update file is detected automatically. In case that the automatic detection fails, please carefully knock on the screen in the lower right corner directly after switching on the device. A menu opens which allows for starting the update process.
The device will indicate the status of the update by a green status bar on the display of the device. Please do not turn off the instrument during this process!
NANOCOLOR Heating block software
Easy data managment and a wide range of special features with the Kalib software. For the following heating blocks the PC software is online available: NANOCOLOR VARIO 4, VARIO C2, VARIO C2M and VARIO HC.
Please download the latest Kalib software here:
Important notes
Please note that from heating block software version 05.00.00.10 onwards, the pc software is no longer supported.
Driver support:
For connecting MACHEREY-NAGEL devices via USB interface.
You can download the FTDI-Driver for Windows here:
