Spectrophotometer NANOCOLOR VIS II and UV/VIS II
The NANOCOLOR VIS II and NANOCOLOR UV/VIS II spectrophotometers are high-precision analytical instruments for all areas of water and wastewater analysis. With the two new spectrophotometers, MACHEREY-NAGEL is revolutionizing daily laboratory work and combining high-quality analytical instrument technology with outstanding user-friendliness. While the VIS II with a wavelength range of 320 - 1100 nm covers the entire visual range of light, the UV/VIS II (190 - 1100 nm) even allows measurements far into the UV range. Thanks to their icon-based user interface, the innovative photometers can be operated like a smartphone or tablet and, with their clear and high-resolution touch screen, make the daily measurement routine a real highlight.
Quick navigation: Quality control Smart connectivity User-defined method Automation General information Tips and tricks
The NANOCOLOR VIS II and UV/VIS II spectrophotometers use high-quality optics to achieve spectral bandwidths of less than 2 nm for high resolution and high precision measurements. Using a 2D barcode scanner and built-in cuvette recognition, the measurement process is automated from measurement to result storage.
Quick navigation: Quality control Smart connectivity User-defined method Automation General information Tips and tricks
Quality control
MACHEREY NAGEL attaches great importance to quality. For this reason, the new spectrophotometers are equipped with extensive quality control functions. In addition to the integrated, free instrument monitoring, the instruments offer many quality control options such as standard measurement, multiple determination and dilution series.
The IQK card 4 is generated directly in the instrument according to the requirements of DWA-A 704 and can be printed or exported for documentation purposes. NANOCOLOR VIS II and UV/VIS II thus offer easy-to-use control functions for efficient and accurate internal quality control.
Quick navigation: Quality control Smart connectivity User-defined method Automation General information Tips and tricks
Smart connectivity

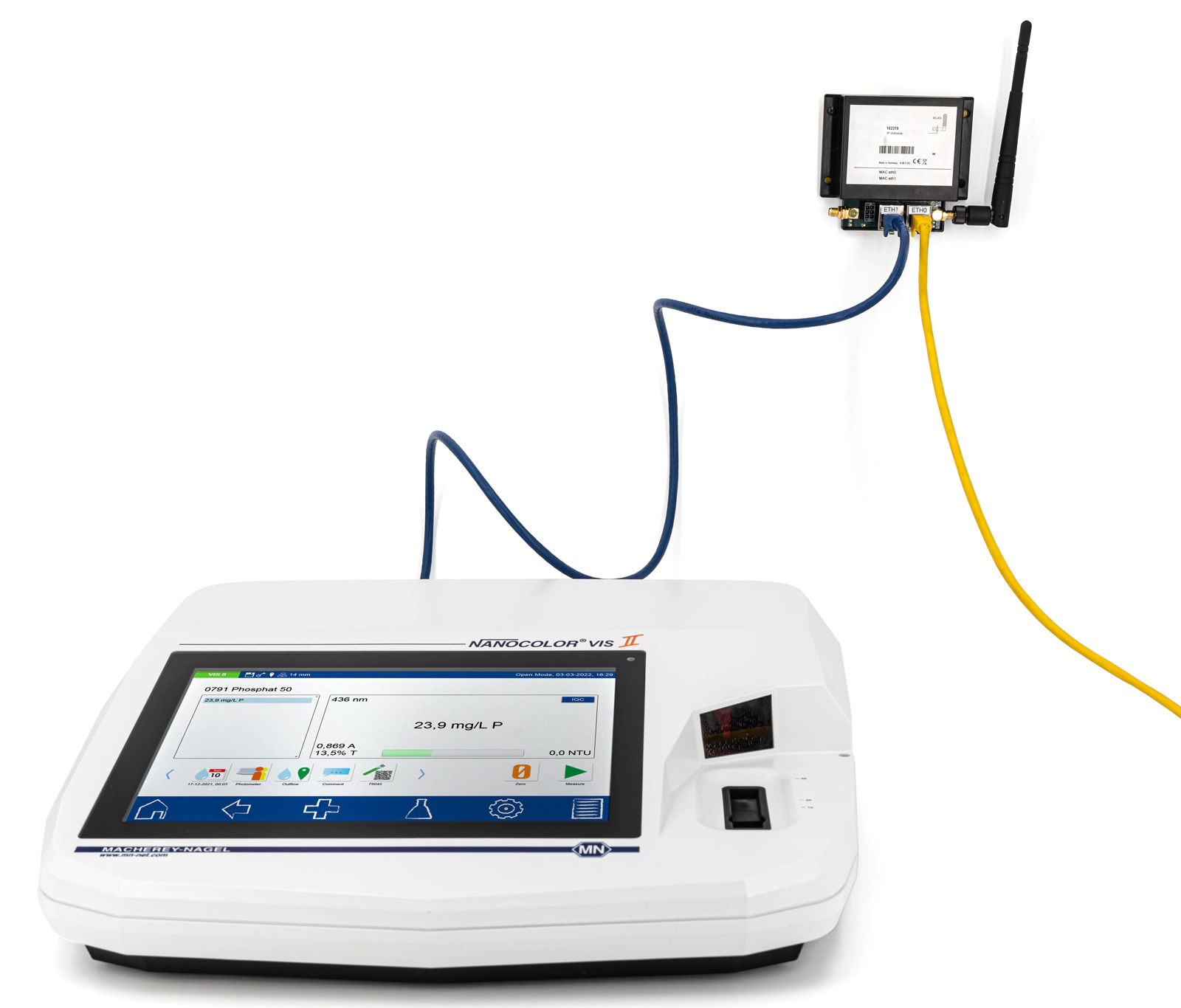

The connection of analytical instruments to Laboratory Information Systems (LIMS) has become an integral part of the modern laboratory. The NANOCOLOR VIS II and UV/VIS II spectrophotometers offer a high degree of flexibility due to the wide range of interfaces (LAN, RS232, USB). With the REF 919691 network adapter, the VIS II and UV/VIS II spectrophotometers are ready for future challenges. In addition to the support of important network standards such as SMBv3, a network connection via Wi-Fi is also possible - a small foretaste of the networked laboratory of the future.
In addition, the intelligent and networked data export offers connection to a wide range of LIMS systems or operating logs.
The NANOCOLOR spectrophotometers are the only devices in their class that allow a direct connection to ACRON. The concept was developed in collaboration with VIDEC and enables fast and smooth data import into the laboratory logbook.
Creation of user methods
Creating your own photometric methods is an increasingly important requirement for users in everyday laboratory work. The NANOCOLOR UV/VIS II and VIS II spectrophotometers combine planning, photometric determination and statistical evaluation on the photometer itself, eliminating the need for external software. Have a look at our video to see how quickly and easily you can develop your own methods.
User method programming:
- Single wavelength measurement with factor input
- Multi-wavelength measurement with calculation and factor input
- Method calibration by entering absorbance-concentration value pairs
- Method calibration by measuring concentration series
Quick navigation: Quality control Smart connectivity User-defined method Automation General information Tips and tricks
Automation with NANOCOLOR UV/VIS II and VIS II
Automated laboratory robot solutions are also possible in cooperation with Skalar. Different samples and methods can even be processed simultaneously. The robot carries out the tests independently. After the reaction time has elapsed, the samples are measured on the NANOCOLOR photometer and the data is transferred to a PC in compliance with GLP. In addition to performing NANOCOLOR tests, special methods or dilution series can also be automated.
For your individual solution, contact our product specialists.
Phone: +49 2421 969 333
Contact form
General information
As full-featured spectrophotometers, the NANOCOLOR VIS II and UV/VIS II meet all the requirements of daily laboratory routine. They feature the proven barcode technology for fast measurement of the NANOCOLOR round cuvette tests, but also offer the possibility of extensive color measurements as well as the recording of scans in real time. The following MACHEREY-NAGEL photometric test kits and color scales can be evaluated with the NANOCOLOR UV/VIS II and VIS II:
- VISOCOLOR ECO
- VISOCOLOR Powder Pillows
- NANOCOLOR ECO
- NANOCOLOR tube tests
- NANOCOLOR rectangular tests
- NANOCOLOR robot tests
- CIE Lab
- Hazen/APHA/PtCo
- Hess-Ives
- ICUMSA
- Gardner
- ASTM
- Saybolt-Color
- ADMI-Color
- Yellowness-Index
- Iod color scale
- Klett
- Ph. Eur. (e.g. Ph. Eur. Cap. 2.2.2)
In addition to turbidity measurement in direct light, the NANOCOLOR UV/VIS II and VIS II spectrophotometers also have the option of nephelometric turbidity measurement at 860 nm. The light scattered by particles in the solution is measured at a 90° angle to the light source. This minimizes the effect of sample components that absorb at the same wavelength as the turbidity and provides a much more accurate indication of the turbidity present in the sample. In addition to pure turbidity measurements, everyday sample measurements are also affected by turbidity, which can falsify the measurement result. Therefore, the NANOCOLOR UV/VIS II and VIS II spectrophotometers are able to determine the nephelometric turbidity during the measurement of a sample in order to increase the reliability of the results and to warn the user if the turbidity in the sample is too high. An influence on the measurement result can be expected from about 10 NTU, while the human eye does not perceive turbidity until about 30 NTU.
Turbidity - a source of error in photometry
Turbidity is an often underestimated source of error in photometry. It affects the measured value and is not always easy to detect visually. Even small amounts of turbidity that are imperceptible to the eye can distort analytical results to an extreme degree.

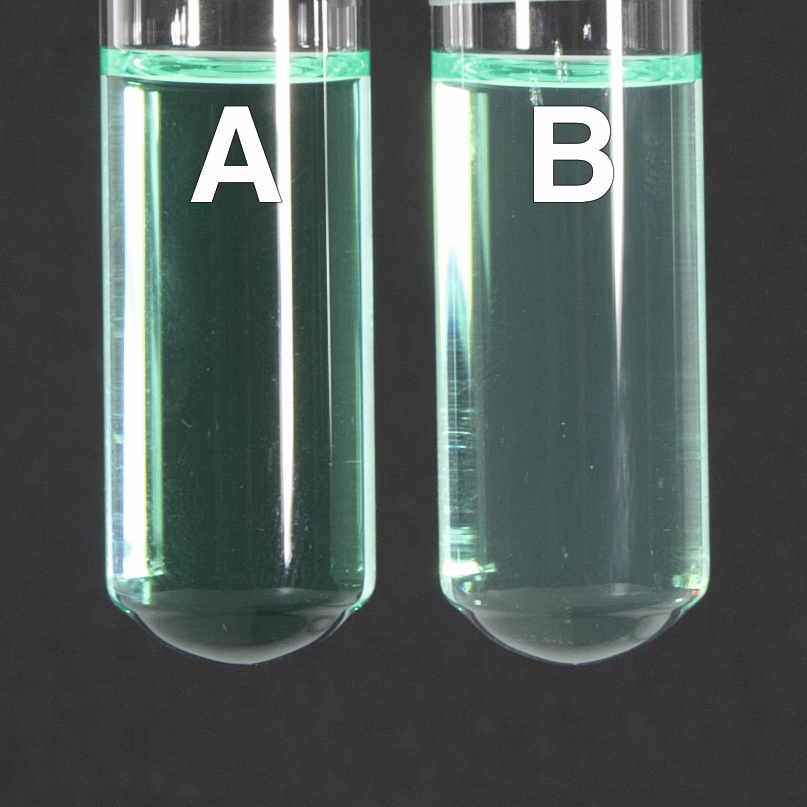

Turbidity can be difficult for the human eye to detect. Vial A shows a turbidity value of 0 NTU, while vial B shows a turbidity value of 40 NTU. Ultimately, the colorless turbidity is only visible to the naked eye against a black background.
Preprogrammed methods
In addition to the large selection of available rapid tests from the MACHEREY-NAGEL portfolio, the NANOCOLOR VIS II and UV/VIS II can also be used to carry out a range of special applications. In addition to the preprogrammed methods, customer specific applications can also be programmed in.
NANOCOLOR VIS II:
- Nephelometric turbidity measurement; 860 nm; 0 - 1000 NTU
- Formazin turbidity units; 550 nm; 1 - 100 FAU
- Spectral absorption coefficient (SAK) 436 nm; 0.1 - 150 1/m
- Suspended solids (TSS); 800 nm, 860 nm; 5 - 750 mg/L
- ICUMSA 50°Brix; 420 nm; 5 - 3000
- α-acids; 360 nm; 1 - 60 mg/L
- Anthocyanogens; 550 nm; 1 - 150 mg/L
- Beer color; 430 nm; 1 - 200 EBC units
- Total carotenoids I-IV; 450 nm; 0.1 - 12 mg/L
- Total polyphenols; 600 nm; 1 - 800 mg/L
- Copper Cuprethol; 445 nm; 0 - 5 mg/L
- Nickel; 530 nm; 0 - 5 mg/L
- Thiobarbituric acid number; 448 nm; 1 - 30
- Vicinal diketones; 335 nm; 0.02 - 3.6 mg/kg
- Iron; 560 nm; 0.4 - 3 mg/L
- Total carotene; 450 nm, 550 nm; 0 - 100 mg/L
- Copper ZDBT EBC; 435 nm; 0 - 10 mg/L
- Iodine sample; 578 nm; 0 - 10 ΔE
- Total carbohydrates; 625 nm; 0 - 10 mg/100mL
- Turbidity EBC; 860 nm; 0 - 250 EBC
NANOCOLOR UV/VIS II:
- Nephelometric turbidity measurement; 860 nm; 0 - 1000 NTU
- Formazin turbidity units; 550 nm; 1 - 100 FAU
- Spectral absorption coefficient (SAK) 436 nm; 0.1 - 150 1/m
- Spectral absorption coefficient (SAK) 254 nm; 0.1 - 150 1/m
- Nitrate UV 2 mm; 200 nm; 0.1 - 12 mg/L
- Nitrate UV 10 mm; 200 nm; 0.1 - 10 mg/L
- Suspended solids (TSS); 800 nm, 860 nm; 5 - 750 mg/L
- ICUMSA 50°Brix; 420 nm; 5 - 3000
- α-acids; 360 nm; 1 - 60 mg/L
- Anthocyanogens; 550 nm; 1 - 150 mg/L
- Beer color; 430 nm; 1 - 200 EBC units
- Bitterness unit wort; 275 nm; 1 - 100 BE
- Beer bitterness unit; 275 nm; 1 - 100 BE
- Total carotenoids I-IV; 450 nm; 0.1 - 12 mg/L
- Total polyphenols; 600 nm; 1 - 800 mg/L
- Copper Cuprethol; 445 nm; 0 - 5 mg/L
- Nickel; 530 nm; 0 - 5 mg/L
- Thiobarbituric acid number; 448 nm; 1 - 30
- Vicinal diketones; 335 nm; 0.02 - 3.6 mg/kg
- Cyclamate; 314 nm; 0 - 300 mg/L
- Iron; 560 nm; 0.4 - 3 mg/L
- Total carotene; 450 nm, 550 nm; 0 - 100 mg/L
- Iso-alfa acids; 255 nm, 360 nm; 0 - 100 mg/L
- Copper ZDBT EBC; 435 nm; 0 - 10 mg/L
- Iodine sample; 578 nm; 0 - 10 ΔE
- Total carbohydrates; 625 nm; 0 - 10 mg/100mL
- Turbidity EBC; 860 nm; 0 - 250 EBC
Tips and tricks — Useful accessories

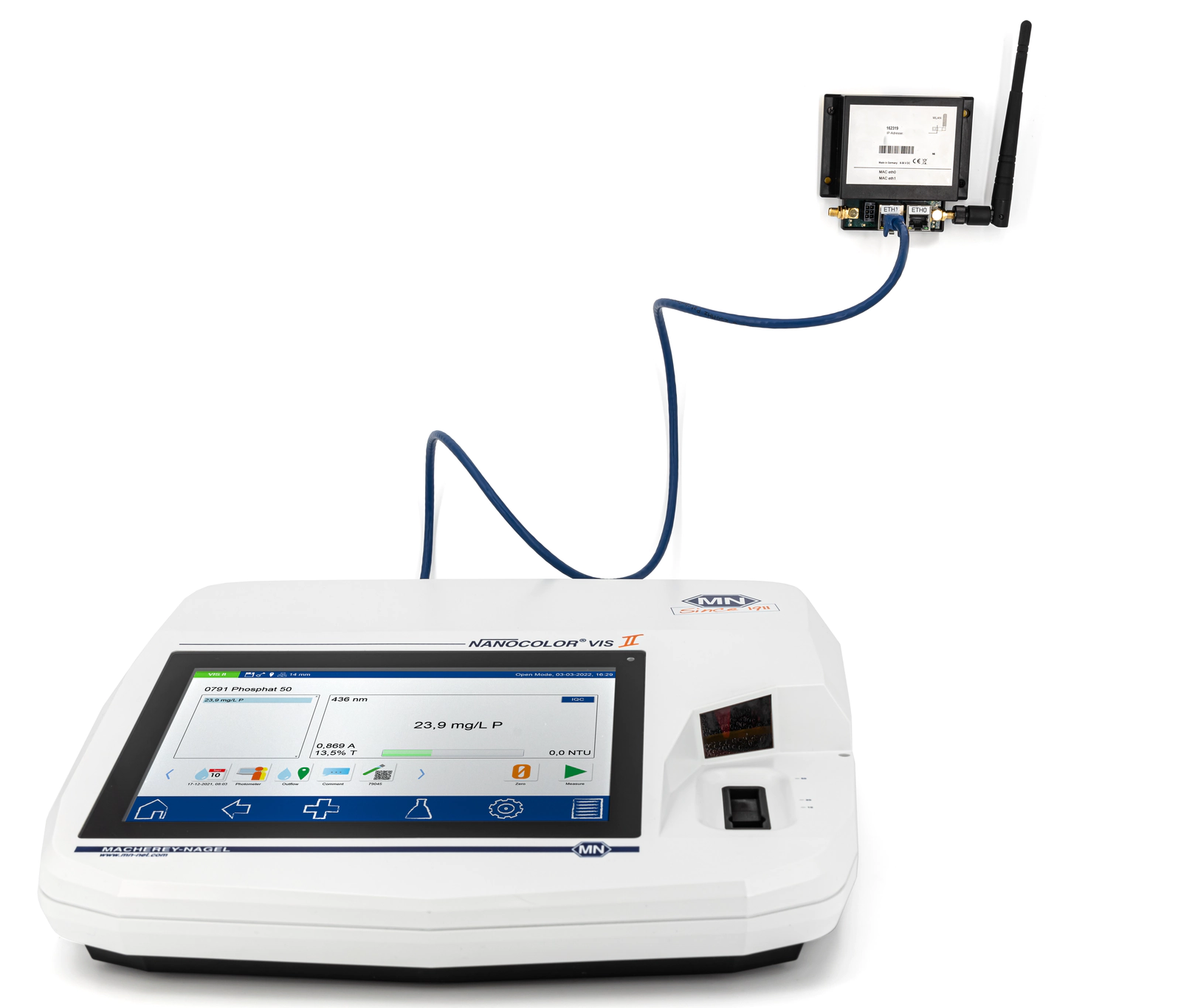

Network adapter (REF 919691):
- The network adapter for the MACHEREY-NAGEL UV/VIS II and VIS II spectrophotometers allows these photometers to be connected to a PC, server or laboratory information management system (LIMS). In addition to the network connection of the photometer via a LAN cable (CAT 5E), the network module also enables a connection via WiFi. The network adapter can be configured flexibly to the standards of the IT infrastructure on site.
Sipper FP-200 (REF 919180):
- High sample throughput in photometric analysis often requires a lot of time and resources due to sample preparation in different cuvettes and frequent cuvette changes in the photometer. With the NANOCOLOR FP 200 Sipper Pump and the corresponding flow-through cuvette (2, 10, 50 mm), the workload can be drastically and conveniently reduced for high sample throughput in the laboratory.
Barcode scanner (REF 919134):
- The barcode scanner for NANOCOLOR spectrophotometers allows easy transfer of data such as user, sample location, etc. to the photometer and allows semi-automatic operation by linking it to a measurement.
Halogen lamp (REF 919604):
- Halogen lamps are consumable parts and can be easily replaced by the user on the VIS II and UV/VIS II.
Case for NANOCOLOR VIS II and UV/VIS II:
- The safe and sturdy cases for the UV/VIS II (REF 919624) and VIS II (REF 919652) can be used to transport the NANOCOLOR spectrophotometers easily and safely.
Quartz glass cuvette:
- Quartz glass cuvettes are used for measurements in the UV range, as commercially available borosilicate glass is impermeable to UV rays. Quartz glass rectangular cuvettes are available in the sizes 2 mm (REF 919122), 10 mm (REF 919120) and 50 mm (REF 919121).
Closure for cuvette slot cover NANOCOLOR UV/VIS II (REF 919609):
- For measurements with rectangular cuvettes in the UV range (190 nm - 340 nm), a measurement with a closure cap for the cuvette slot is recommended.
Mentioned products
Content 1 Piece(s)
Content 1 Piece(s)
Content 1 Piece(s)
Content 1 Piece(s)
Tips and tricks — Common error sources
Incorrect results due to contaminated cuvettes:
- The cleanliness of the cuvettes plays a decisive role in the measurement result. Clean the cuvettes with the included cuvette cleaning cloth before each insertion into the cuvette slot.
Incorrect measurement results due to a contaminated cuvette slot:
- Sample solution leaking into the cuvette slot and contamination by dust/dirt can adversely affect measurements. Be careful not to spill sample solution when inserting the cuvettes. It is also important to protect the cuvette slot from contamination such as dust. If the cuvette slot is contaminated, it can be carefully cleaned with a cotton swab and isopropyl alcohol. Never use metal or sharp objects for cleaning.
Sources of error due to insufficient testing of the device:
- The photometer should be checked twice a year according to the requirements of DWA-A 704. The test solution NANOCONTROL NANOCHECK 2.0 (REF 925703) can be used to check the photometric accuracy and the test solution NANOCONTROL NANOTURB (REF 925702) can be used to check the nephelometric turbidity measurement. In addition, further measures can be taken to monitor the instrument (e.g. lamp check or wavelength accuracy check, see manual).
- MACHEREY-NAGEL recommends that you define your own inspection intervals depending on the intensity of use and in accordance with your own internal quality specifications.
