NucleoVac96 with 8-well strips

Find below detailed step by step description of the NucleoVac96 in combined use with the 8-Well strips. For each assembly we have included videos helping you to find your way for a very easy and convenient way to process your samples with vacuum.

NucleoVac 8-well assembly

Filtration

When do you need to include the filtration step?

The filtration step is necessary to clear your lysate. Lysate filtration is a very efficient way to purify your nucleic acid from larger particles that might clog the binding column.  Materials that may need lysate clearing are: whole blood, plant material or microbiome samples. Using a vacuum manifold the tedious, time and cost intense centrifugation process can be easily replaced.

Find below the video showing the assembly of the NucleoVac 96 Manifold when using the 8-well strips for filtration.

Assembly overview

NucleoVac 8-well assembly

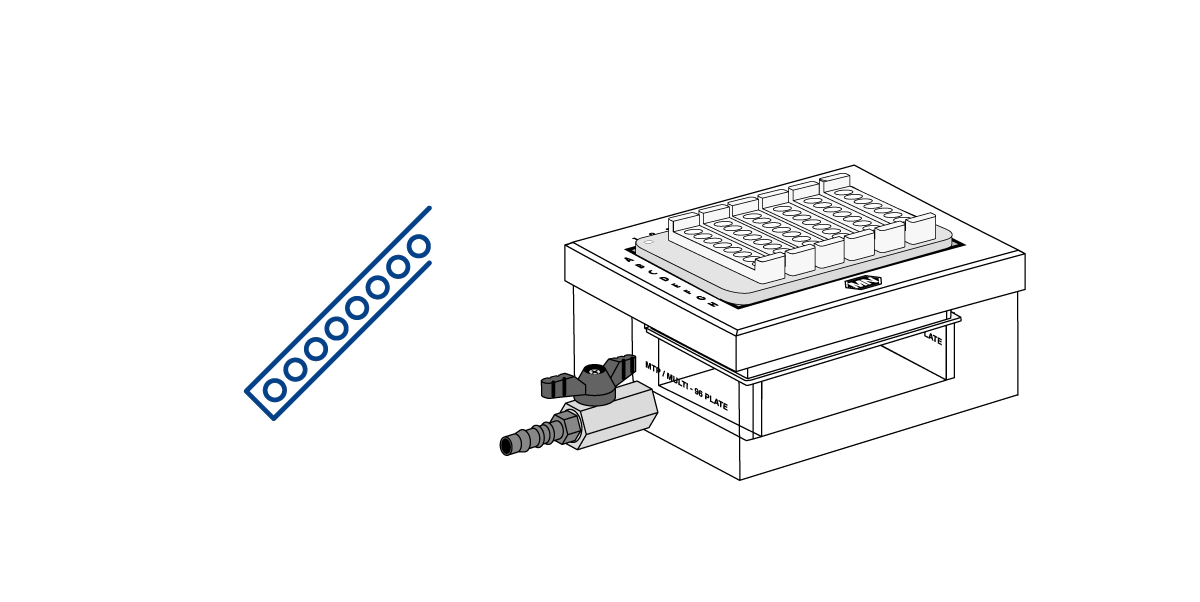

One step bind and wash

If you want to speed up your sample prep and you can combine the filtration and binding step of your sample with the NucleoVac 96 Manifold.

Below you will find an assembly overview and video illustrating the filtration and binding procedure in only 1 step.

NucleoVac 8-well assembly

Bind and wash

When using the NucleoVac 96 manifold you can easily use only one setup to do the binding and washing steps of your sample.

This allows a very fast processing and frees up your time.

Below you will find the assembly overview and video for NucleoVac96 Manifold when performing the binding and washing steps.

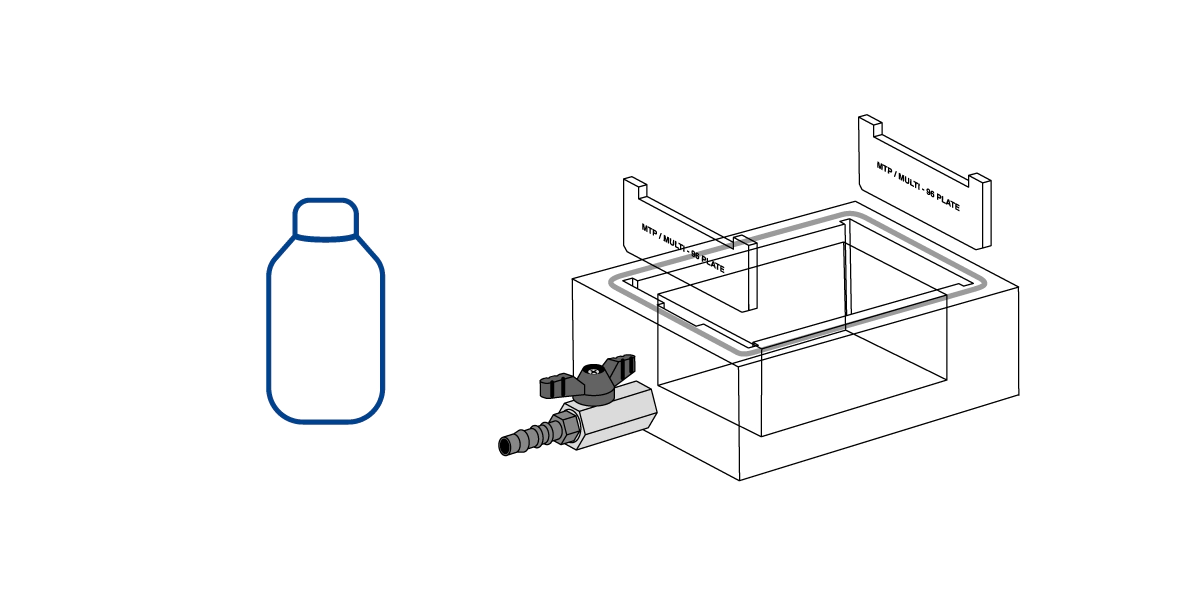

Accessories for NucleoSpin 8-well strips on NucleoVac 96 Vacuum Manifold

Learn how to assemble our NucleoSpin 8-well strips on our NucleoVac 96 Vacuum Manifold for the filtration, binding, wash and elution steps.

For processing 8-well strips under vacuum, the Starter Set A, containing Column Holders A and NucleoSpin Dummy Strips is required. For automation on laboratory platforms with standard 96-well plate manifolds, the use of Starter Set A is also required.
