Vial Kit crimp N 11 (70201HP + 702879)

Preview: Vial Kit crimp N 11 (70201HP + 702879) Preview: Vial Kit crimp N 11 (70201HP + 702879)
Vial Kit crimp N 11 (70201HP + 702879)
Vial Kit crimp N 11 (70201HP + 702879)

This item is not available. Please refer to the product description for more information.
Contact us for more information $0.00 * (0% Saved)

*taxes and shipping not included

Ready to ship today,
Delivery time appr. 1-3 workdays

Item number: 702243 02301024001011
Package unit 1 Set(s)
Do you have any questions?
Please contact us.
Technical data Downloads
Technical data
We no longer offer vial kits in order to avoid additional plastic waste. However, we continue to... more
Close menu

We no longer offer vial kits in order to avoid additional plastic waste. However, we continue to offer the individual components. The item numbers (REFs) can be found in the title above or here below under "Technical Data".

Type of combi pack Vial Kit crimp N 11
Vial category Vial
Vial type Crimp neck vial
Nominal diameter N 11
Vial material Clear glass, 1st hydrolytic class glass
Vial dimensions 11.6 mm x 32.0 mm
Vial diameter 11.6 mm
Vial height 32.0 mm
Usable volume 1.5 mL
Vial opening Wide
Bottom shape of the vial Flat bottom
Closure type Crimp closure
Assembling process Assembled
Cap material Magnetic
Cap color Gold
Cap hole Yes
Closure magnetic Yes
Septa material Silicone/PTFE
Colors of septa material White/red
Septa thickness 1.3 mm / 51,2 mil
Septa hardness 45° shore A
Recommended application(s) GC, HPLC
REF vial component 70201HP
REF closure component 702879
Autosampler compatibility see vial 70201HP, closure 702879
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100 each of 70201HP and 702879
Gross weight (incl. packaging) 436.3 g / 0.96 lbs
Hazardous material No
Downloads
Close menu
Related products Accessories
Related products

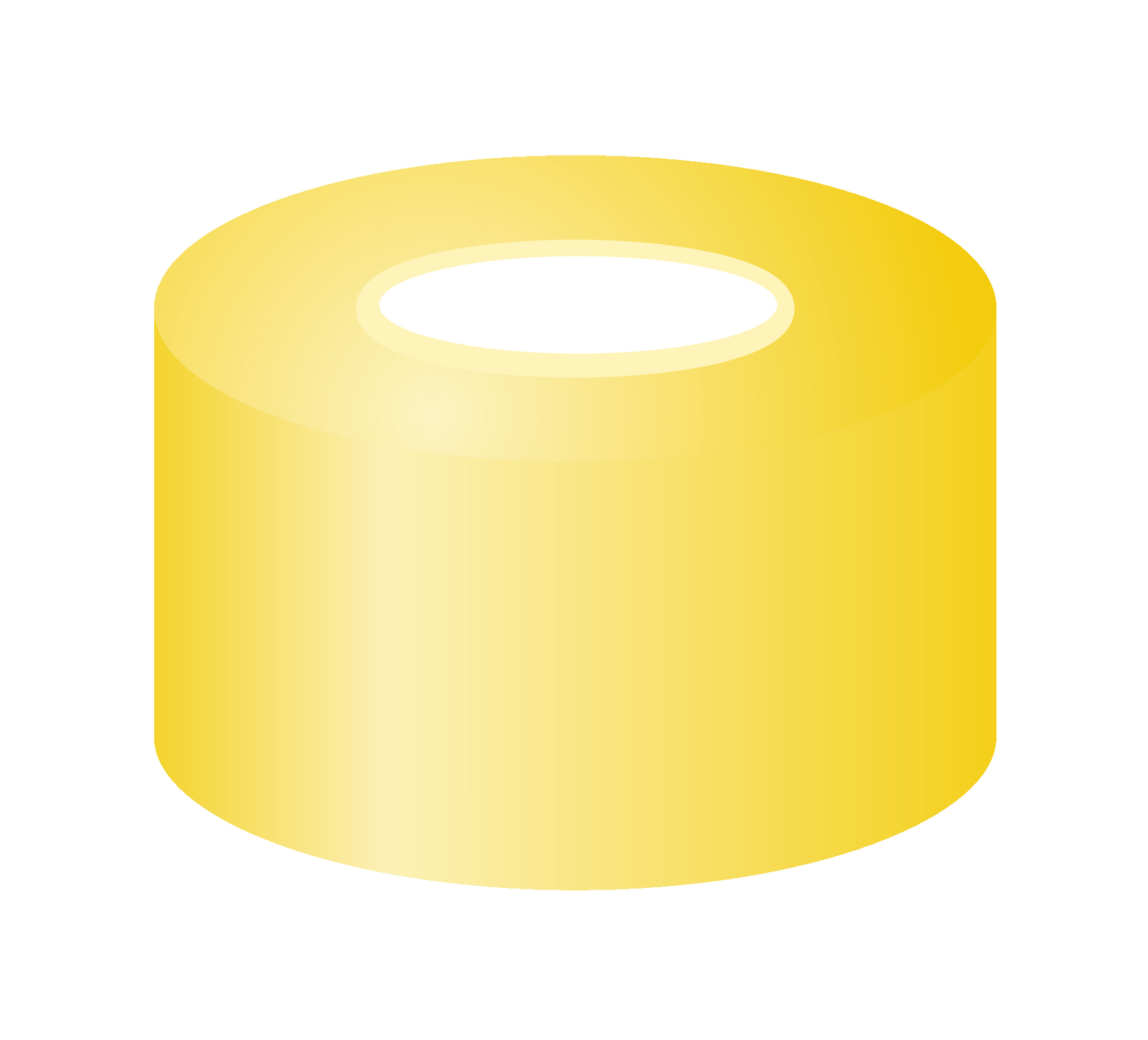

Crimp closure, N 11, magnetic, silver,center hole, Silicone white/PTFE red,1.3mm Crimp closure, N 11, magnetic, silver,center hole, Silicone white/PTFE red,1.3mm
Content 100 Piece(s)
REF 702879
$
Screw closure, N 9, PP/steel, magnetic, center hole, Silicone w./PTFE red, 1.0mm Screw closure, N 9, PP/steel, magnetic, center hole, Silicone w./PTFE red, 1.0mm
Content 100 Piece(s)
REF 702155
$
Screw closure, N 9, PP/steel,magn.,center hole,Silicone w./PTFE blue,slit,1.0mm Screw closure, N 9, PP/steel,magn.,center hole,Silicone w./PTFE blue,slit,1.0mm
Content 100 Piece(s)
REF 702156
$
Vial Kit crimp N 11 (70201HP + 70288) Vial Kit crimp N 11 (70201HP + 70288)
Content 1 Set(s)
REF 702215
$
Vial Kit crimp N 11 (70201HP + 702995) Vial Kit crimp N 11 (70201HP + 702995)
Content 1 Set(s)
REF 702218
$
Vial Kit crimp N 11 (70201HP + 70256) Vial Kit crimp N 11 (70201HP + 70256)
Content 1 Set(s)
REF 702222
$

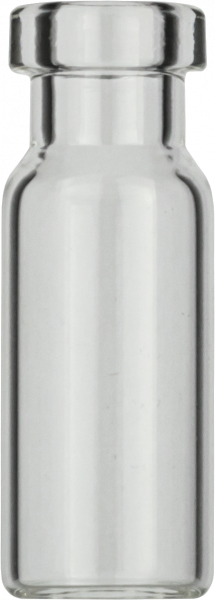

Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, flat bottom, clear Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, flat bottom, clear
Content 100 Piece(s)
REF 70201HP
$
Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, flat bottom, amber Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, flat bottom, amber
Content 100 Piece(s)
REF 70201HP.2
$
Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, label, flat bottom, clear Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, label, flat bottom, clear
Content 100 Piece(s)
REF 702885
$
Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, label, flat bottom, amber Crimp neck vial, N 11, 11.6x32.0 mm, 1.5 mL, label, flat bottom, amber
Content 100 Piece(s)
REF 702892
$
