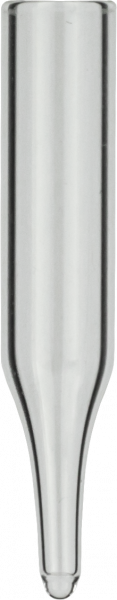

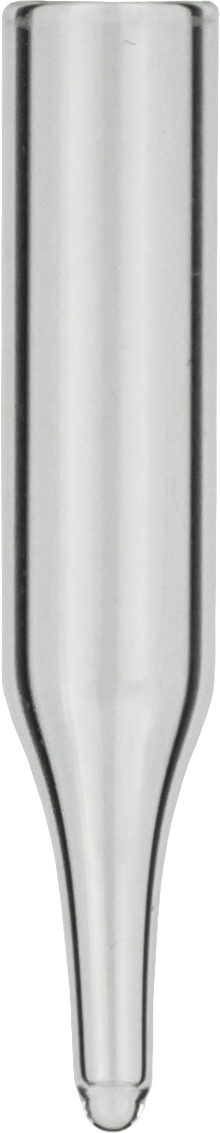

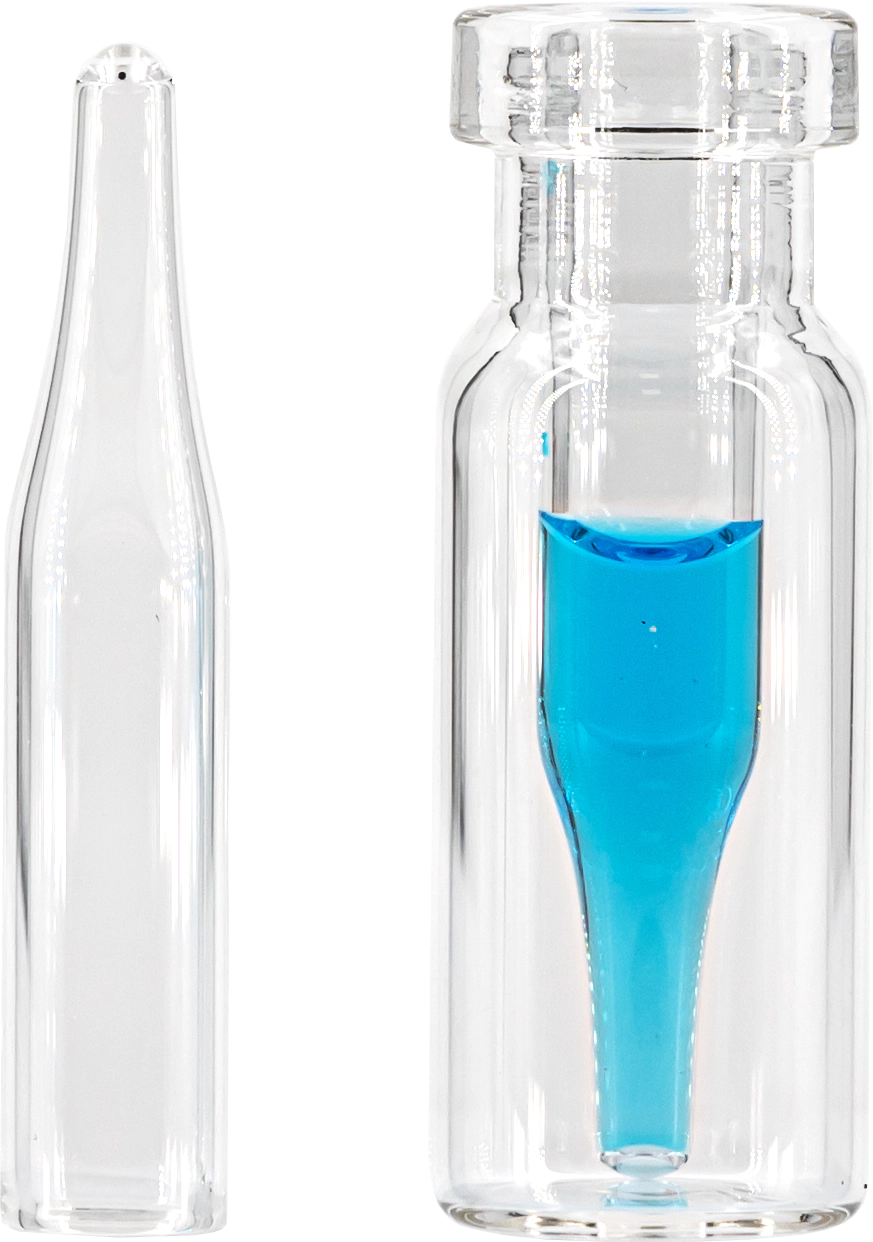

Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear

Skip image gallery
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear
Micro-insert, N 9|N 10|N 11, 6.0x31.0 mm, 0.25 mL, conical, 12 mm tip, clear

US$29.90*

Package unit 100 Piece(s)

*taxes and shipping not included

Item number: 702716
Package unit 100 Piece(s)
Do you have any questions?
Please contact us.

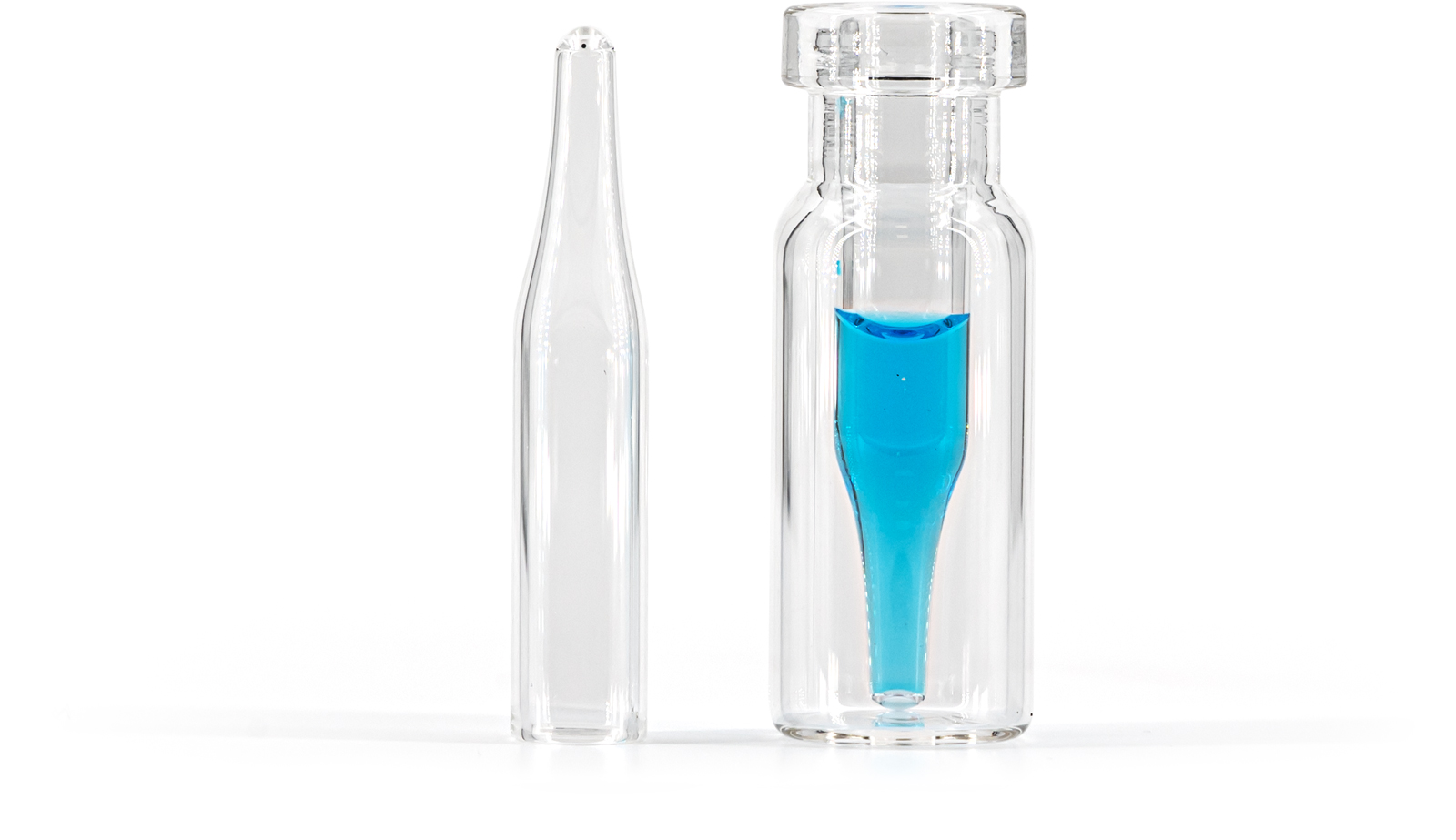

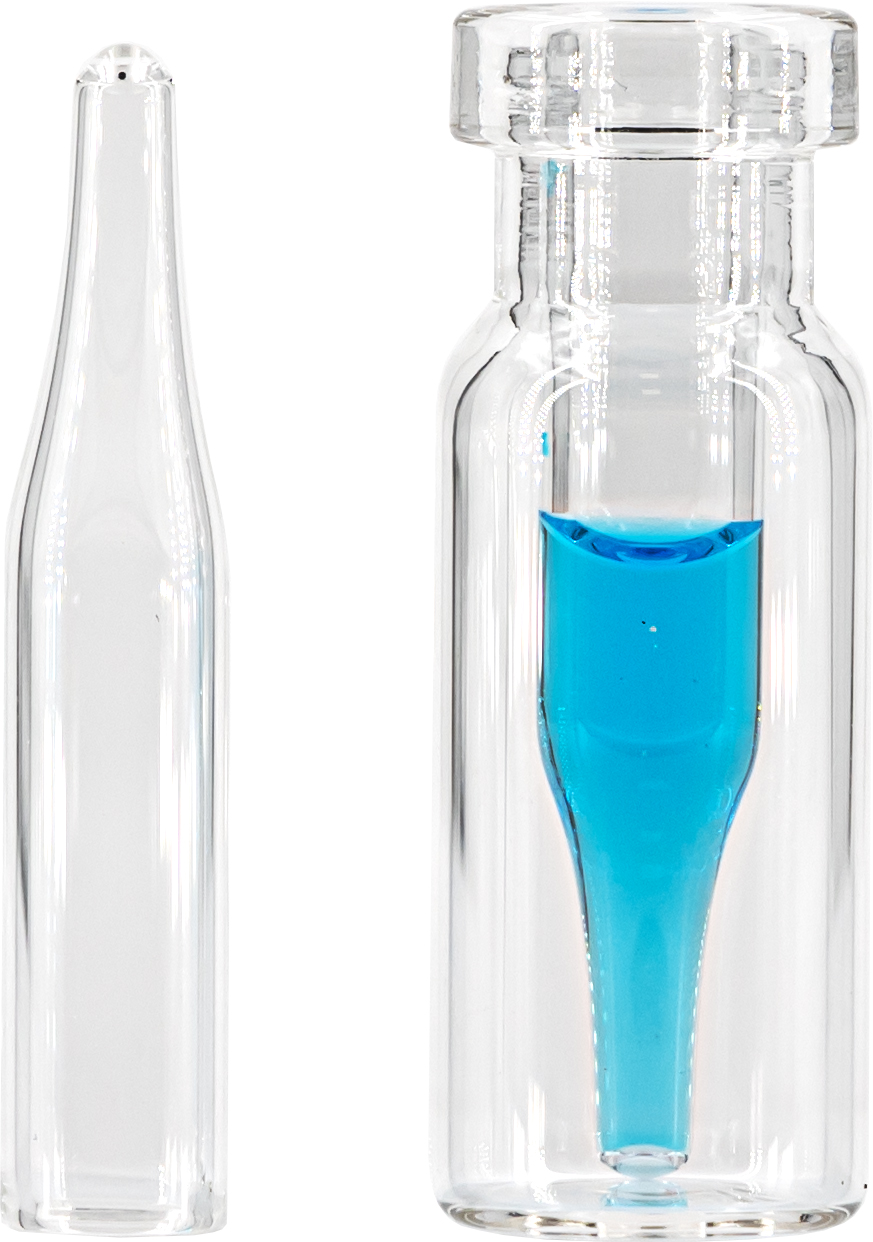

Conical insert for wide opening vials that offers ideal conditions for the needle for sample removal.

Autosampler compatibility All autosamplers using 1.5 mL wide opening vials
Bottom shape of the vial Conical, 12 mm tip
Gross weight (incl. packaging) 66.5 g / 0.15 lbs
Hazardous material No
Nominal diameter N 9, N 10, N 11
Packaging dimensions 80 x 20 x 140 mm / 3.15 x 0.79 x 5.51 Inch
Recommended application(s) Micro-sampling in GC and HPLC
Scope of delivery 100 x insert for wide opening vials
Silanized No
Storage temperature 15–25 °C / 59–77 °F
Usable volume 0.25 mL
Vial category Micro-insert
Vial diameter 6.0 mm
Vial dimensions 6.0 mm x 31.0 mm
Vial height 31.0 mm
Vial material Clear glass, 1st hydrolytic class glass
Vial opening Wide
Writing patch No
