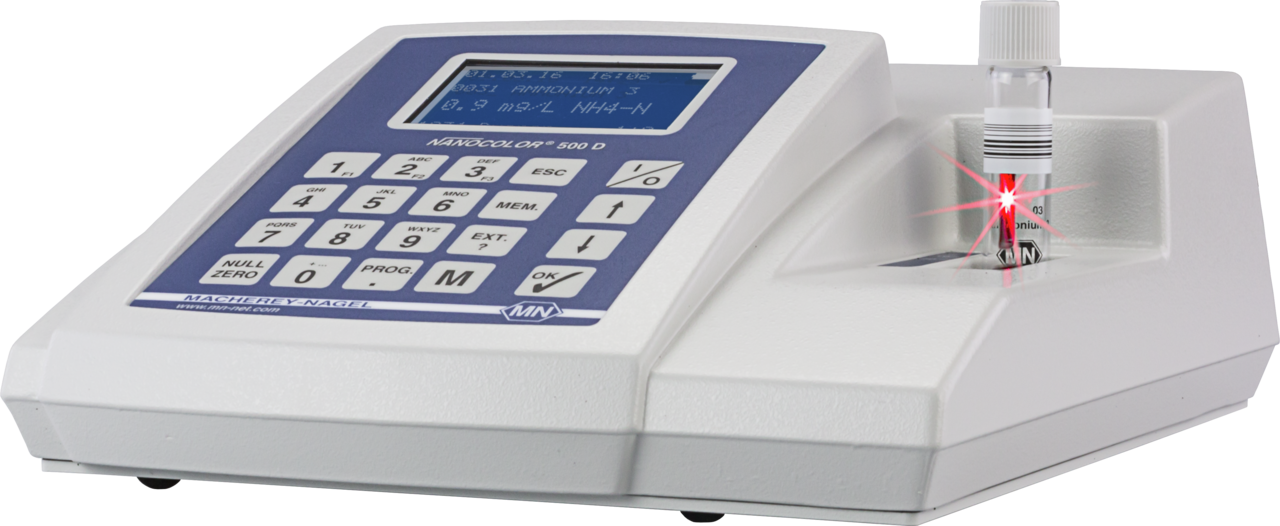

Filter photometer NANOCOLOR 500 D

This product is currently not available.
Price on request $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

919500 0120261300
Package unit 1 Piece(s)
The photometer NANOCOLOR 500 D is the link between our spectrophotometers and our handy... more

The photometer NANOCOLOR 500 D is the link between our spectrophotometers and our handy compact photometers. The device contains all measurement options important in the laboratory and is therefore versatile. The combination of extremely short measurement times and accurate results render this photometer the ideal instrument for the universal use in water and wastewater analysis

Brand NANOCOLOR
Type Filter photometer with microprocessor control, self-test and auto-calibration
Light source Tungsten lamp
Optical system Automatic filter wheel with 10 interference filters
Wavelength 345 nm / 365 nm / 436 nm / 470 nm / 520 nm / 540 nm / 585 nm / 620 nm / 690 nm / 800 nm plus 2 compartments for additional filters
Wavelength accuracy ± 2 nm, bandwidth at half transmission 10 nm–12 nm
Wavelength selection Automatic, barcode, manual
Photometric range ± 3 E
Photometric accuracy ± 1 %
Long term stability < 0.002 A/h
Measuring modes More than 100 preprogrammed tests, 100 freely programmable methods, absorbance, transmission, factor, kinetics, 2-point calibration
Preprogrammed tests NANOCOLOR tube tests and standard tests
Cuvette slot Round tubes 16 mm OD, rectangular cuvettes 10 mm, 20 mm, 50 mm
External light Insensitive to external light, fast measurements without cuvette slot cover
Data memory 500 measurement data records, GLP-compliant
Display Backlit graphic display, 128 x 64 pixel
Auto off Inactive or automatic shutdown after 10–120 min (10 min interval)
Internal quality control With NANOCONTROL NANOCHECK 2.0
Operation Barcode technology, display user guidance, foil-covered push-buttons
Language DE / EN / FR / IT / NL / ES / HU / PL / PT / CZ / SL / TR / ID / DK
Interfaces USB and bidirectional serial RS232
Update Free via internet / PC
Operating range 10–40 °C, max. 80 % relative humidity (non-condensing)
Power supply 100–240 V AC, 50 / 60 Hz / 6 V, 3,2 Ah via built-in battery with charge regulator and mains power supply
Housing Shock-resistant
Dimensions 227 x 282 x 105 mm
Weight 2.4 kg
Warranty 2 Years
CE certified Yes
Scope of delivery Photometer, software DVD, manual, protective covering, mains adaptor, data cable, USB cable, calibration cuvette, cleaning cloth and certificate in stable transport case
Hazardous material No
