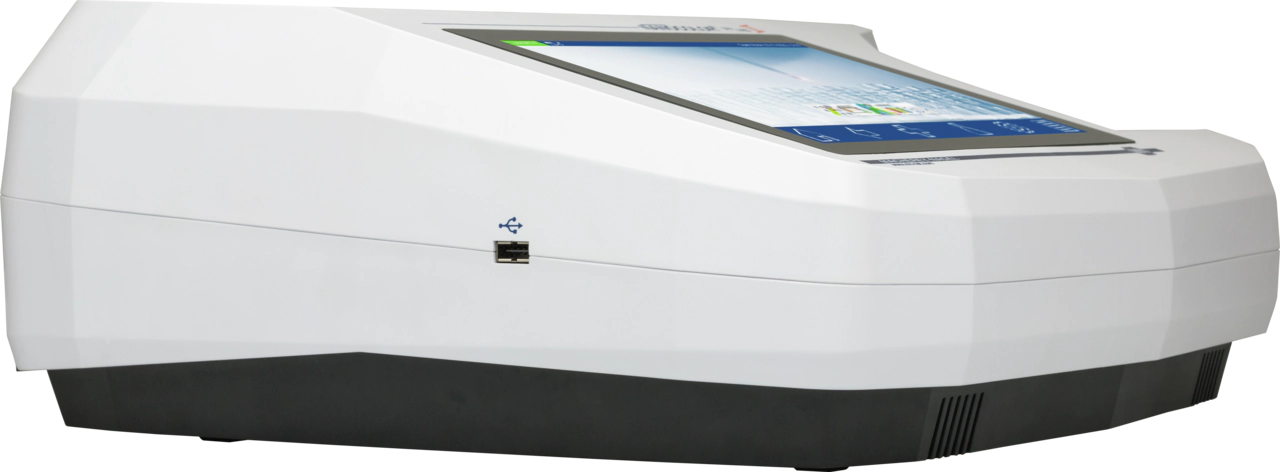

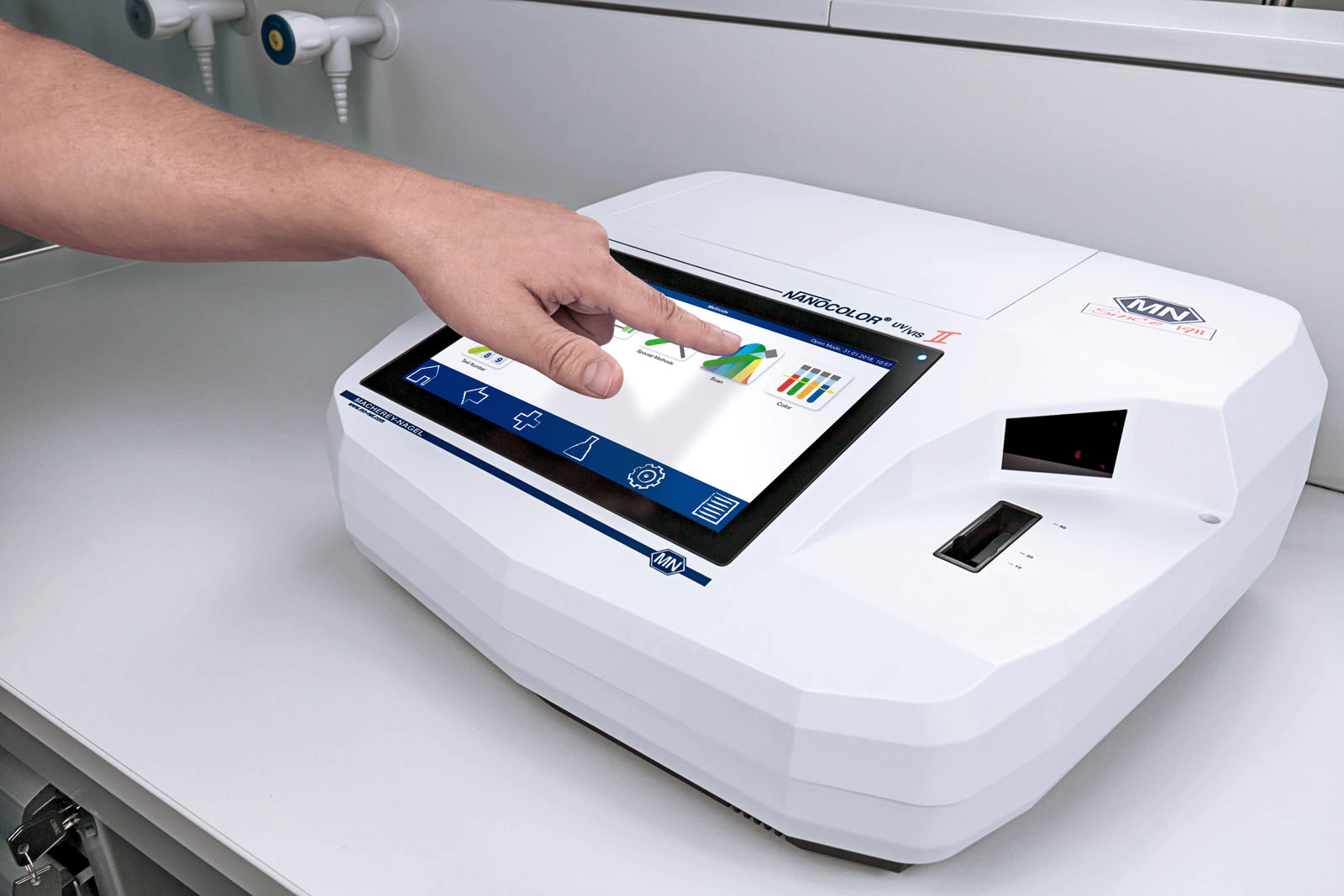

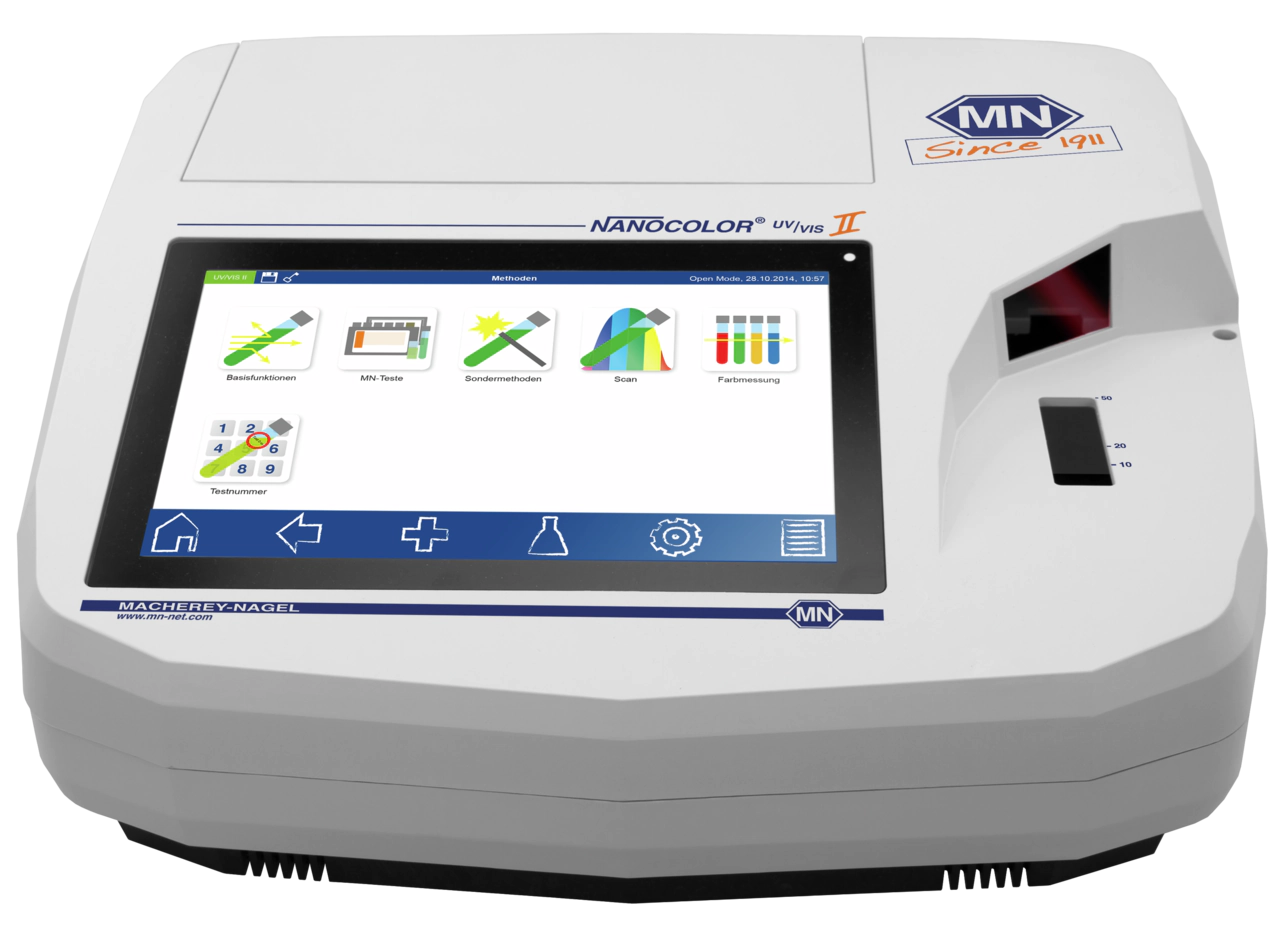

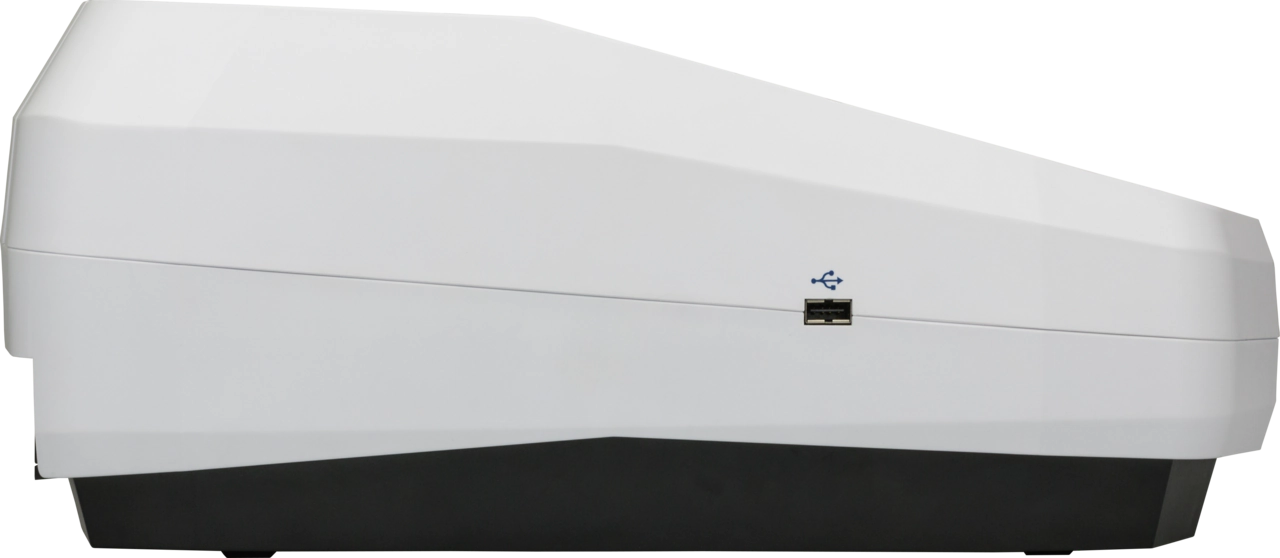

Spectrophotometer NANOCOLOR UV/VIS II, 190−1100 nm
Price on request
*taxes and shipping not included
The spectrophotometer NANOCOLOR UV/VIS II is a high-precision instrument applicable in all areas of water and wastewater analysis. MACHEREY‑NAGEL revolutionizes the daily laboratory work with this new spectrophotometer by the combination of premium high-tech components with outstanding usability.
| Brand | NANOCOLOR |
|---|---|
| CE certified | Yes |
| Cuvette slot | Round tubes 16 mm OD, rectangular cuvettes 10 mm, 20 mm, 40 mm, 50 mm |
| Data memory | 16 GB Micro SDHC card, 5000 measured data sets, 100 spectra and color measurements, GLP-conform |
| Dimensions (L x W x H) | 400 x 440 x 170 mm |
| Display | 10.1″ LED backlit HD display, anti-reflective cover glass with projected capacitive touch screen (PCAP) |
| External light | Insensitive to external light, fast measurements without cuvette slot cover |
| Gross weight (incl. packaging) | 10400 g / 22.93 lbs |
| Hazardous material | No |

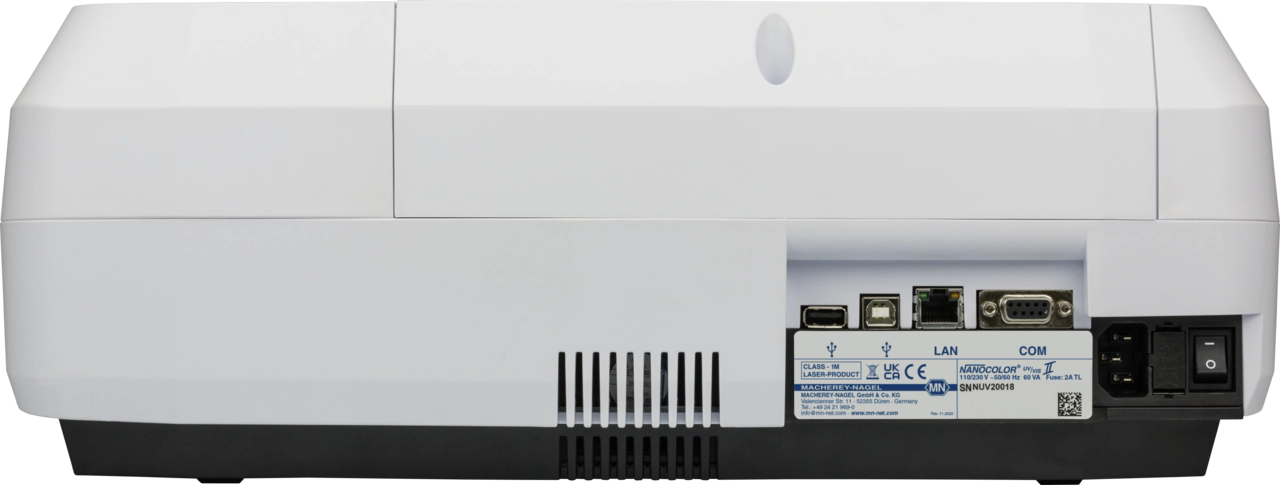

| Interfaces | LAN, 2 x USB (host), 1 x USB (function) and RS232 |
| Internal quality control | With NANOCONTROL NANOCHECK 2.0 |
| Language | DE / EN / FR / ES / PT / PL / HU / NL / CZ / RO / IT |
| Light source | Halogen lamp (visible range), Deuterium lamp (UV range) |
| Measuring modes | More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; scan; nephelometric turbidity measurement |
| Operating range | 10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing) |
| Operation | Barcode technology, icon-based menu guidance, touch screen |
| Optical system | Monochromator |
| Packaging dimensions | 533 x 468 x 270 mm / 20.98 x 18.43 x 10.63 Inch |
| Photometric accuracy | 0.005 A at 0.0–0.5 A; 1 % at 0.5–2.0 A |
| Photometric linearity | < 0.5 % at ≤ 2 A, ≤ 1 % at > 2 A |
| Photometric range | ± 3.0 A in wavelength range 200–900 nm |
| Power supply | 110–240 V AC, 50 / 60 Hz |
| Preprogrammed tests | NANOCOLOR tube tests and standard tests |
| Scan speed | 1 complete scan in less than 1 min |

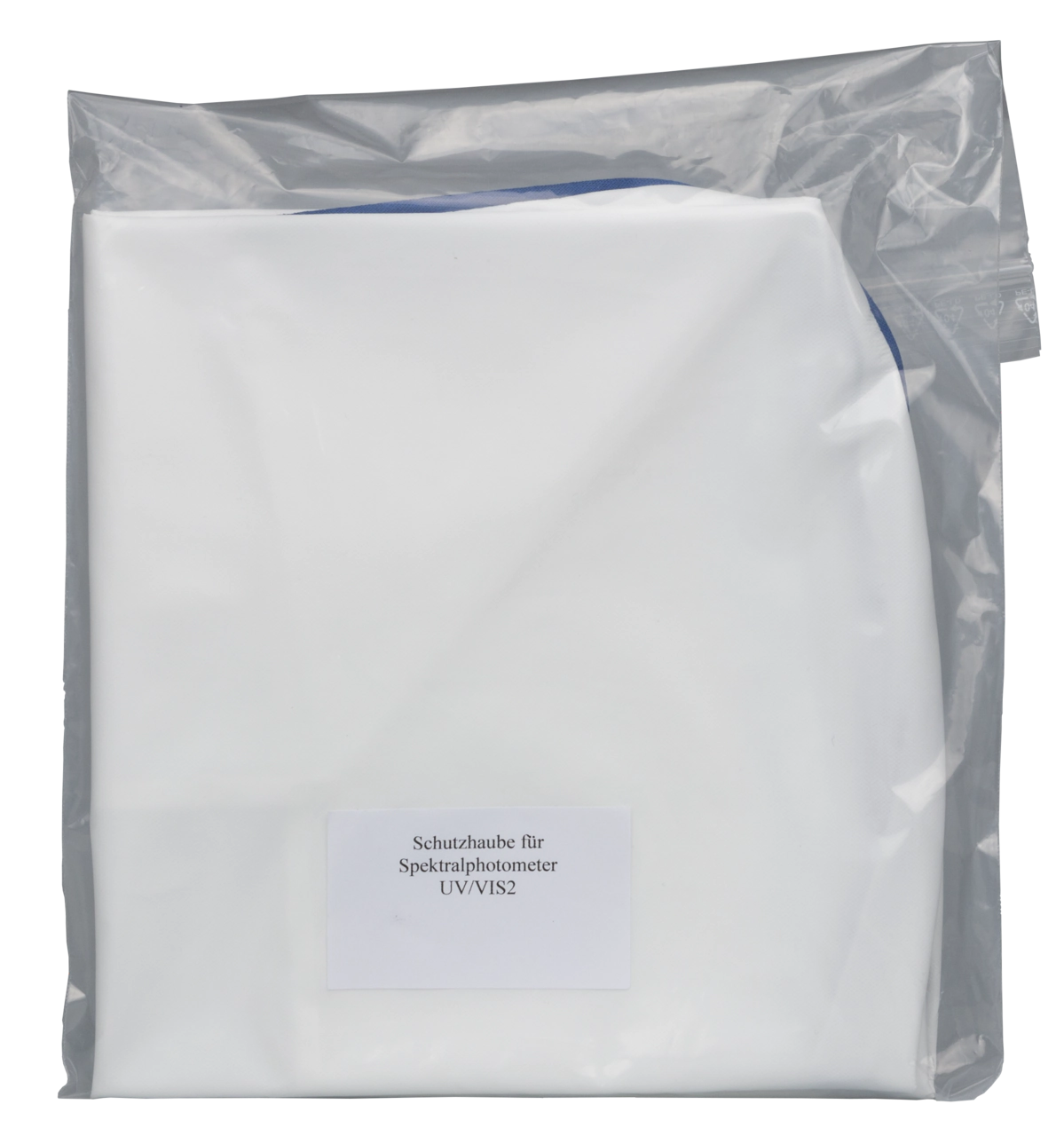

| Scope of delivery | Photometer, manual (quick start guide), touch pen, protective covering, power cable, USB cable, USB stick, calibration cuvette, certificate and cleaning cloth |
| Spectral bandwidth | < 2 nm |
| Stray light | < 0.05 % |
| Turbidity measurement | Nephelometric turbidity measurement at 860 nm (based on ISO 7027), 0.1–1000 NTU |
| Type | Spectrophotometer with reference detector technology (RDT) |
| Update | Free via USB stick |
| Warranty | 2 Year(s) |
| Wavelength | 190–1100 nm |
| Wavelength accuracy | ± 1 nm |
| Wavelength calibration | Automatic |
| Wavelength reproducibility | < 0.5 nm |
| Wavelength resolution | 0.1 nm |
| Wavelength selection | Automatic, Barcode, Manual |
| Weight | 6.5 kg |
