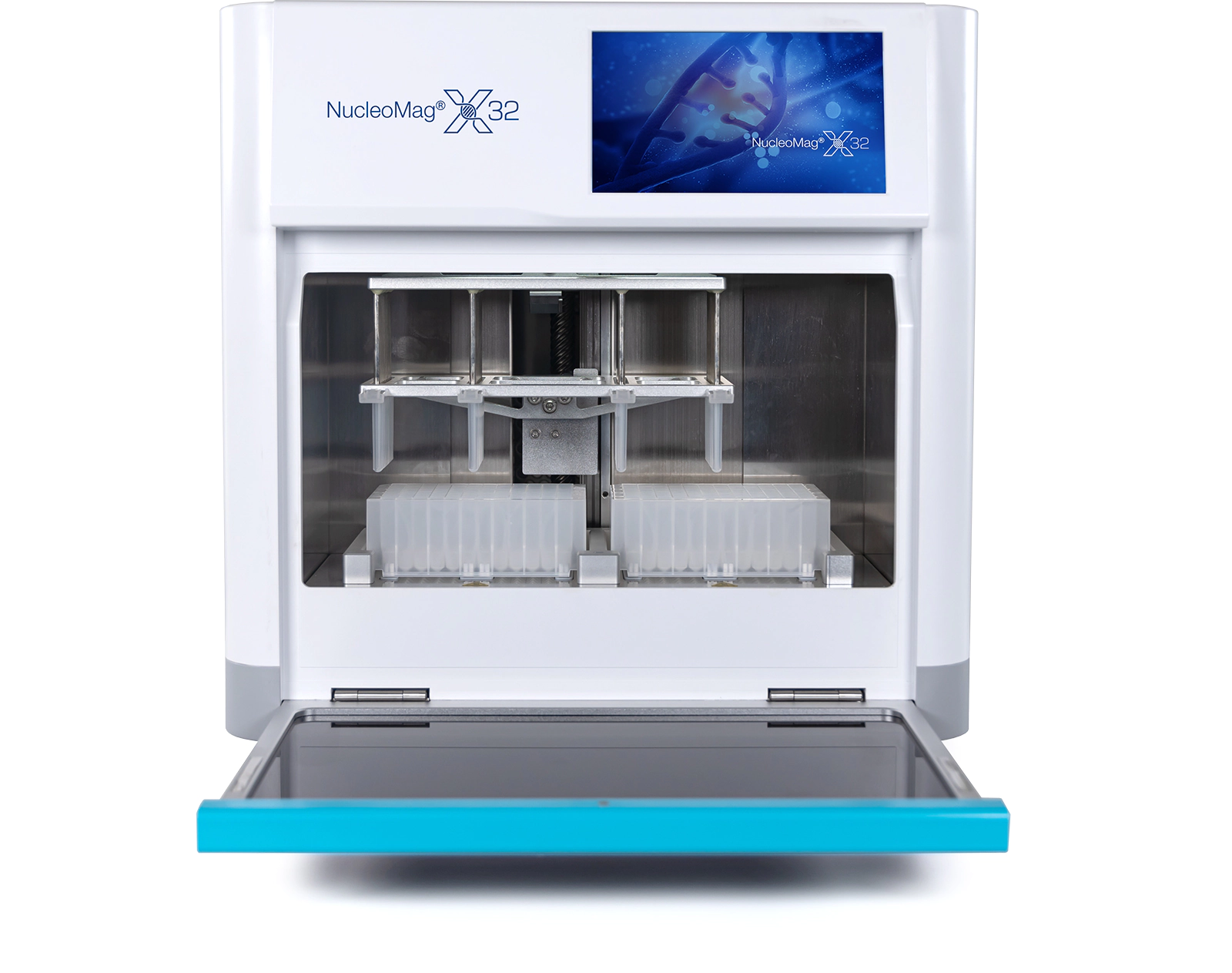

NucleoMag X32 - System for automated DNA/RNA purification

Price on request

Package unit 1 Piece(s)

*taxes and shipping not included

Item number: 747020

Package unit 1 Piece(s)

Do you have any questions?

Please contact us.

The NucleoMag X32 is an automated platform for magnetic bead-based DNA/RNA extraction with a minimal benchtop footprint. Capable of processing up to 32 samples simultaneously, the stand-alone instrument is easy to set up, program, and operate. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically, saving valuable hands-on time. The purification process can be completed within 20 to 60 minutes depending on the type of NucleoMag kit used and the complexity of the program.

Application	Automated extraction system for magnetic bead-based DNA/RNA purification
Capacity	1 - 32 samples
CE certified	Yes
Contamination control	Internal UV lamp, purification filter system to reduce cross-contamination
Dimensions	417 x 410 x 426 mm
Display	7.0 inch-color touch screen
Elution temperature range	Ambient, 37 °C - 120 °C
Gross weight (incl. packaging)	43000 g / 94.8 lbs
Internal lighting	LED
Lysis temperature range	Ambient, 37 °C - 120 °C
Magnetic bead recovery rate	>95 %
Mixing speed	Variable, 10 Levels
Operation	Touch screen
Packaging dimensions	680 x 600 x 750 mm / 26.77 x 23.62 x 29.53 Inch
Power supply	100–240 V AC
Program memory	500 programs (internal memory)
Program transfer	Pre-installed script parameters for NucleoMag kits, USB flash drive
Total volume per well	50–1000 µL
Weight	30 kg
