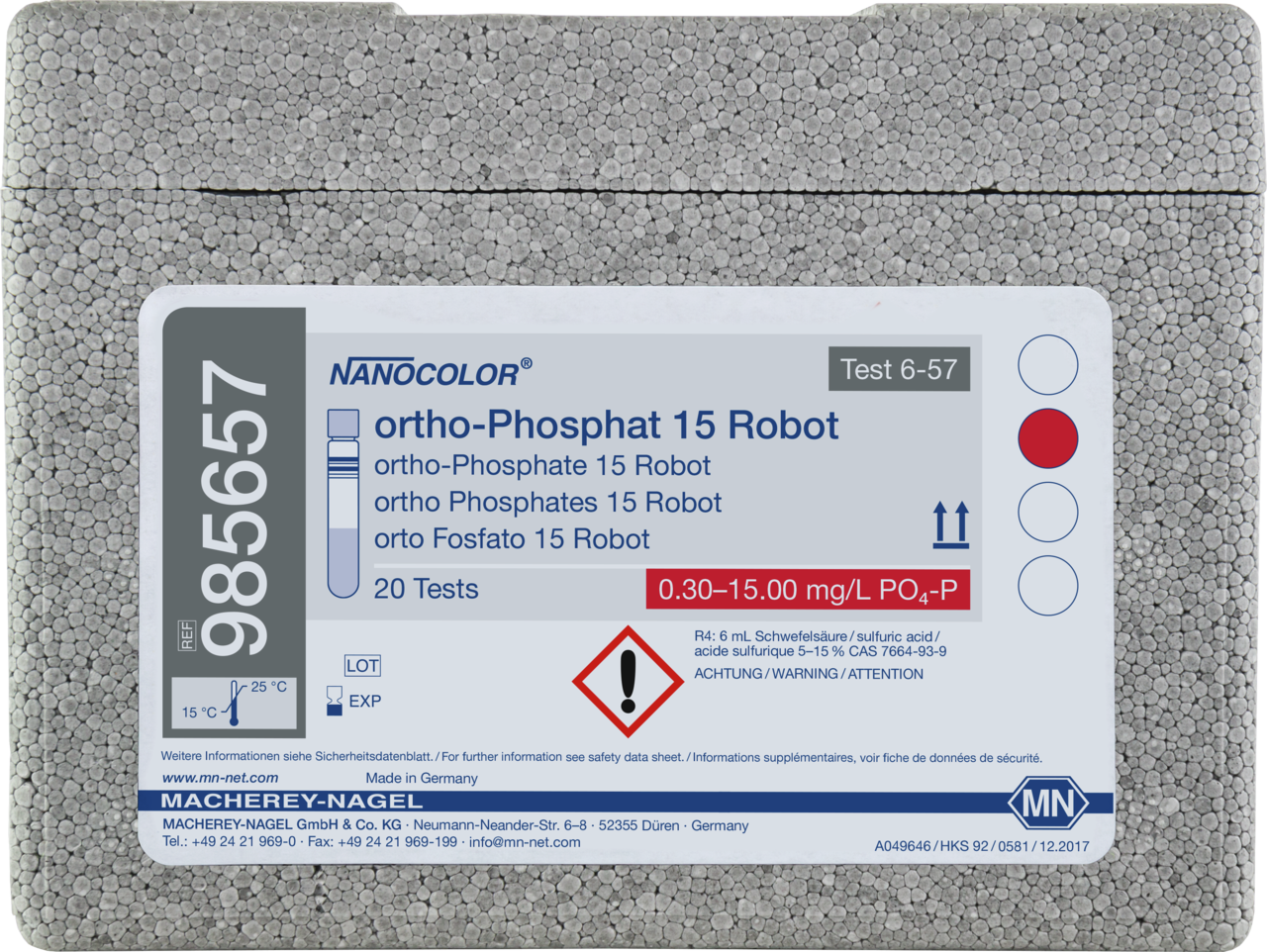

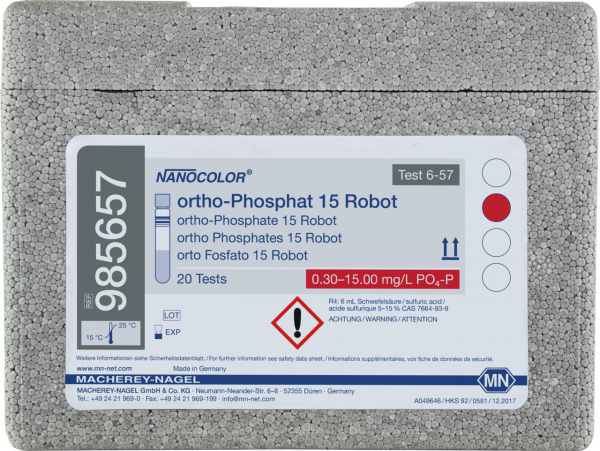

Tube test NANOCOLOR ortho-Phosphate 15 Robot
Contact us for more information $0.00 * (0% Saved)
*taxes and shipping not included
Delivery time approx. 5 working days
Item number: 985657 012026126001
Package unit 20 Test(s) Do you have any questions?
Please contact us. Tube test for the determination of ortho- and total Phosphate. Suitable for automated water... more
Tube test for the determination of ortho- and total Phosphate. Suitable for automated water analysis on the Skalar Robot SP2000series. Precise rapid tests for all kind of water and waste water samples.
| Brand | NANOCOLOR |
| Platform | NANOCOLOR tube tests |
| Parameter | Phosphate (ortho) |
| Measuring range | Phosphate (ortho) - 0.30–15.00 mg/L P , Phosphate (ortho) - 1.0–45.0 mg/L PO₄³⁻ |
| Sludge reagent set | No |
| Test No. | 0-57 |
| Evaluable on | VIS, VIS II |
| Based on norm | Analogous to EPA 365.2+3, APHA 4500-P E, DIN EN ISO 6878 – D11 |
| Method | Phosphate - Phosphomolybdenum blue |
| NanOx N | No |
| NanOx Metal | No |
| Crack-Set | No |
| Sea water analysis | Yes |
| Application | drinking water, groundwater, surface water, wastewater |
| Test range | Medium |
| Test method | Photometric |
| Remark | Measuring range on NANOCOLOR VIS II |
| Shelf life (from production) | 1 Year(s) |
| Storage temperature | 15–25 °C / 59–77 °F |
| Scope of delivery | Rugged box with 20 test tubes. Sufficient for 20 tests. |
| Gross weight (incl. packaging) | 456.6 g / 1.01 lbs |
| Packaging dimensions | 160 x 110 x 119 mm / 6.30 x 4.33 x 4.69 Inch |
| Hazardous material | Yes |
Learn more
NANOCOLOR robot test - Increase your efficiency
- Automated sample preparation, digestion and measurement
- Save time by automating all analysis steps
- Customer-specific configuration for high flexibility
- Analysis of all important wastewater parameters
MACHEREY‑NAGEL and Skalar - A partnership with tradition and future
MACHEREY-NAGEL
- Global company for chemical and biomolecular analysis from Düren (Germany), founded in 1911
- Family-run in the 4th generation
- Worldwide sales of over 25,000 products
- More than 700 employees in branches in Germany, Switzerland, France and USA
- Continuous development and innovation of our products
- Reliable partner with delivery stability and security of supply
Skalar
- Global manufacturer of chemical analyzers for laboratory automation and process industry from Breda (Netherlands), founded in 1965
- 8 branches worldwide and over 80 international representations
- In-house research and development department with over 40 years of experience in the field of laboratory automation
- Reliable specialist for automation with the highest quality standard
Extensive technical
knowledge in the field of wastewater
and environmental analysis
Extensive selection of measuring ranges and
applications for photometric analysis
Precise measuring devices for reliable
measurement results and support with
complete documentation
for quality assurance
MACHEREY-NAGEL and Skalar - Trust our joint expertise
MACHEREY-NAGEL
-
Bénéficiez de notre expertise en analyse photométrique de l’eau
-
Production selon les normes de qualité ISO 9001 et ISO 13485
-
Une équipe compétente vous accompagne dans la réalisation de vos objectifs
Certification according to
ISO 9001 and ISO 14001
Product specialists in the field
directly on site
Flexible customer solutions through
individual advice and tailor-made
adaptation to customer
requirements
Skalar
-
Specialist for automation in analytical laboratories
-
Competent advice and support
-
Strong technical skills and expertise
-
Flexibilité et réactivité
-
Flexibility and responsiveness
- Personalized solutions
MACHEREY‑NAGEL and Skalar - A solution for every application
NANOCOLOR robot tests
- Precisely pre-dosed reagents for reliable results
- Method validation data and lot specific certificates
- Consistently high quality from batchto batch
- Reaction bases conform to internationally recognized standards
- No direct contact with hazardous chemicals
- No reagent blanks required *
Your benefits
- Time and cost savings
- Increased productivity and flexibility
- Increased precision and accuracy
- Less user errors
- Parallelization of processes
- Complete documentation

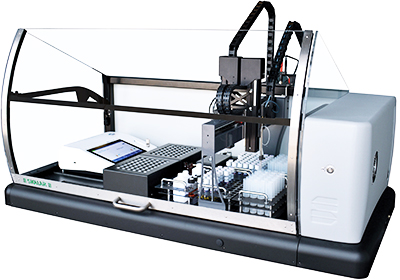

Skalar SP2000
- Complete automation
- Simultaneous processing of different samples and methods
- ST-COD analysis analogous to ISO 15705 and EPA 410.4
- Enormous sample capacity from 48 – 192 cuvettes
- Removal of the sample and reagent racks for easy loading
- Automatic sample dilution
- Extensive software package including quality control functions and data export options
- Optional combination with pH and conductivity measurement
Service
- Specialist advice from initial contact to installation
- Analysis protocols tailored to your application
- Technical support for questions of any kind
- Operating procedures for manual execution for quality assurance and matrix comparison
- 2 year guarantee
Speak to an expert
For your individual solution, contact our product specialists.
Phone: +49 2421 969 333
MACHEREY‑NAGEL and Skalar - The complete walk-away solution for your laboratory
1. Preparation
● Test tube transfer for decapping
● Opening of tube
● Flushing of stirrer and needle
2. Dosage
● Take a sample
● Dispense sample in test tube
● Dispense reagents
● Close the test tube
3. Mixing process
● Insertion in mixing unit
● Horizontal mixing
4. Reaction process
● Digestion in the heating block
● Removal from heating block
● Precise adherence to cooling and reaction times
5. Measuring process
● Measuring of test tubes in the photometer
● Barcode scanner recognizes the test used
● Transfer of data to the PC software
6. Evaluation
● GLP-compliant calculation of measurement data
● Warning of interfering turbidities
● Marking of “out-of-range” results
