EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm

Preview: EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm Preview: EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm Preview: EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm

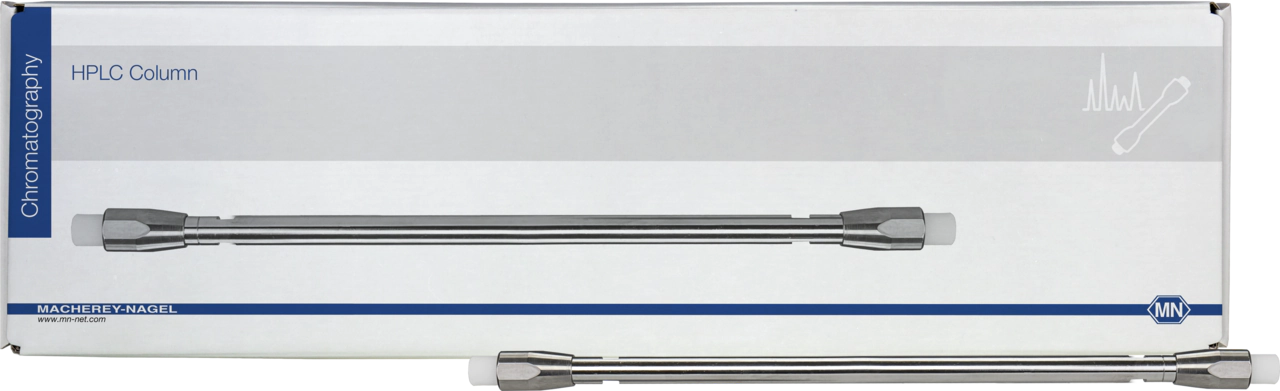

EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm
EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm
EC HPLC column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 200x4 mm

$1,700.00 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 720127.40 02402027801010
Package unit 1 Piece(s)
Quantity:
Do you have any questions?
Please contact us.
Technical data Downloads
Technical data
Cyclodextrin-modified silica phases for HPLC enantiomer separation. For all permethylated phases... more
Close menu

Cyclodextrin-modified silica phases for HPLC enantiomer separation. For all permethylated phases the ability to form hydrogen bonds is reduced, the hydrophobicity of the phase is increased compared to β‑OH, resulting in shorter retention times.

Are you interested in real-world applications for this product? Click here to view the application notes.

Method HPLC, analytical
Brand NUCLEODEX
Base material NUCLEOSIL - the standard silica
Phase NUCLEODEX ALPHA-PM
USP listing Not available or proprietary
Surface chemistry Permethylated α-cyclodextrin (chiral selector) modification
Mode Special application or diverse
Type EC HPLC column (analytical)
Hardware Stainless steel
Column length 200 mm
Column inner diameter 4 mm
Particle type Fully porous particles (FPP)
Particle shape Spherical
Particle size 5 µm
Eluent in HPLC column CH₃OH (methanol) – 50 mmol/L phosphate, pH 3 (70/30, v/v)
Recommended application(s) Carboxylic acids, Chiral, enantiomers, Dichlorprop, HPLC, Mecoprop, Styrene oxide, trans-stilbene oxide
Endcapped No
Carbon content Not available or proprietary
pH stability 3.0–8.0
Pore size 100 Å
Specific surface according to BET 350 m²/g
Temperature stability (max) 50 °C
Pressure stability (max) 400 bar / 5800 psi
Column volume 2.5 mL
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 1x analytical HPLC column, instruction leaflet, certificate of analysis
Gross weight (incl. packaging) 273.9 g / 0.6 lbs
Packaging dimensions 115 x 400 x 50 mm / 4.53 x 15.75 x 1.97 Inch
Hazardous material No
Downloads
Close menu
Accessories
Accessories 2
Column Protection System, guard column holder for EC 4x2 + 4x3 mm guard columns Column Protection System, guard column holder for EC 4x2 + 4x3 mm guard columns
Content 1 Set(s)
REF 718966
$
EC HPLC guard column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 4x3 mm EC HPLC guard column (analytical), NUCLEODEX ALPHA-PM, 5 µm, 4x3 mm
Content 1 Piece(s)
REF 721469.30
$
