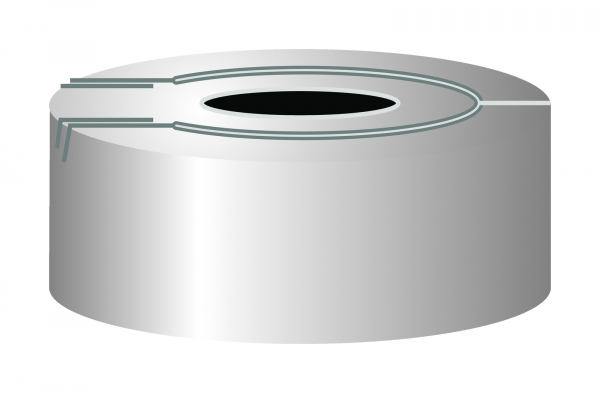

Crimp closure, N 20, alu., pressure release, silver, center hole, no liner

Crimp closure, N 20, alu., pressure release, silver, center hole, no liner
$13.00 * $0.00 * (0% Saved)

*taxes and shipping not included

Delivery time approx. 5 working days

Item number: 702799 02301023501020
Package unit 100 Piece(s)
Quantity:
Price overview
Quantity Price/unit
To 9 $13.00
From 10 $11.10
From 50 $10.00
Do you have any questions?
Please contact us.
Technical data Certificates of analysis (CoA / CoC) Downloads
Technical data
These safety caps are used in Headspace analysis in the high temperature range. The bridges of... more
Close menu

These safety caps are used in Headspace analysis in the high temperature range. The bridges of the cap's scorelines break open at an internal vial pressure exceeding 3 bars (± 0.5 bars), thus releasing overpressure in a crontrolled way. Functionality of the cap is not depending on the design of the vial's crimp neck (beveled top, flat crimp neck).

Closure type Crimp closure
Nominal diameter N 20
Assembling process Not available or not applicable
Cap material Aluminum
Cap color Silver
Cap hole Yes
Closure magnetic No
Septa material No liner
Colors of septa material Not available or not applicable
Septa thickness Not available or not applicable
Septa hardness Not available or not applicable
Additional cap features Pressure release cap (safety) - bridges of the scorelines open at a pressure of more than 3 bars (± 0.5 bars) and release pressure in a controlled way
Additional closure features Not available or not applicable
Recommended application(s) Headspace
Autosampler compatibility See appropriate assembled crimp closures
Storage temperature 15–25 °C / 59–77 °F
Scope of delivery 100x N 20 crimp caps (no liner)
Gross weight (incl. packaging) 43 g / 0.09 lbs
Packaging dimensions 170 x 120 x 50 mm / 6.69 x 4.72 x 1.97 Inch
Hazardous material No
