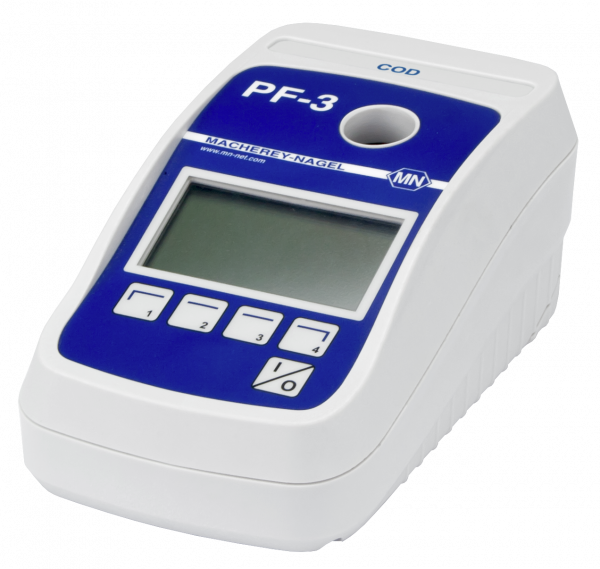

Compact photometer PF‑3 COD, in box
Price on request
*taxes and shipping not included
The compact photometer PF‑3 COD is the smallest member of the MACHEREY‑NAGEL photometer family. The COD version is especially designed for the need of COD analysis. It supports measurements of most NANOCOLOR COD tube tests. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis.
| Auto off | Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min |
|---|---|
| CE certified | Yes |
| Cuvette slot | Round tubes 16 mm OD |
| Data memory | 50 measurements |
| Dimensions (L x W x H) | 170 x 95 x 68 mm |
| Display | Backlit graphic display, 128 x 64 pixel |
| External light | Insensitive to external light, fast measurements without cuvette slot cover |
| Gross weight (incl. packaging) | 850 g / 1.87 lbs |
| Hazardous material | No |
| Housing | Shock-resistant, waterproof and dustproof, according to IP 68 |
| Interfaces | Mini-USB |
| Light source | LED |
| Operating range | 10–40 °C (50–104 °F), max. 80 % relative humidity (non-condensing) |
| Operation | Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists |
| Optical system | LED + interference filters |
| Packaging dimensions | 260 x 220 x 80 mm / 10.24 x 8.66 x 3.15 Inch |
| Power supply | 3 AA batteries, rechargeable batteries, USB interface; optional internal accu-pack |
| Preprogrammed tests | NANOCOLOR tube tests |
| Scope of delivery | Photometer, manual, batteries and certificate |
| Type | LED photometer with microprocessor control, self-test and auto calibration |
| Update | Free via internet / PC |
| Wavelength | 365 nm / 450 nm / 595 nm |
| Wavelength accuracy | ± 2 nm, bandwidth at half transmission 10 nm–12 nm |
| Weight | 0.5 kg |
