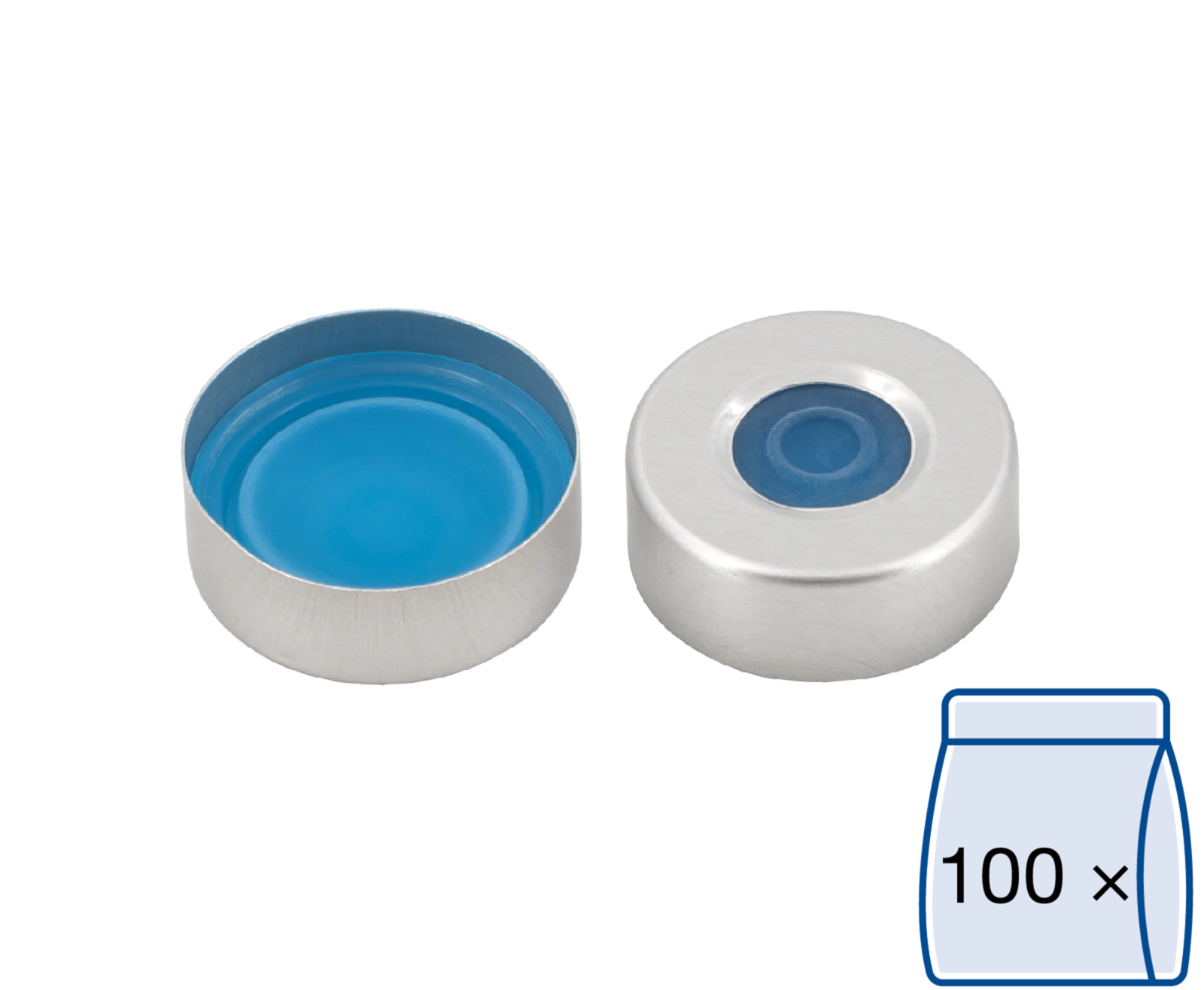

Bi-metal crimp closure, N 20, blue/tin, hole, Sil. blue tr./PTFE(Pharma-Fix),3mm

US$81.60*

Package unit 100 Piece(s)

*taxes and shipping not included

Item number: 702341

Package unit 100 Piece(s)

Do you have any questions?

Please contact us.

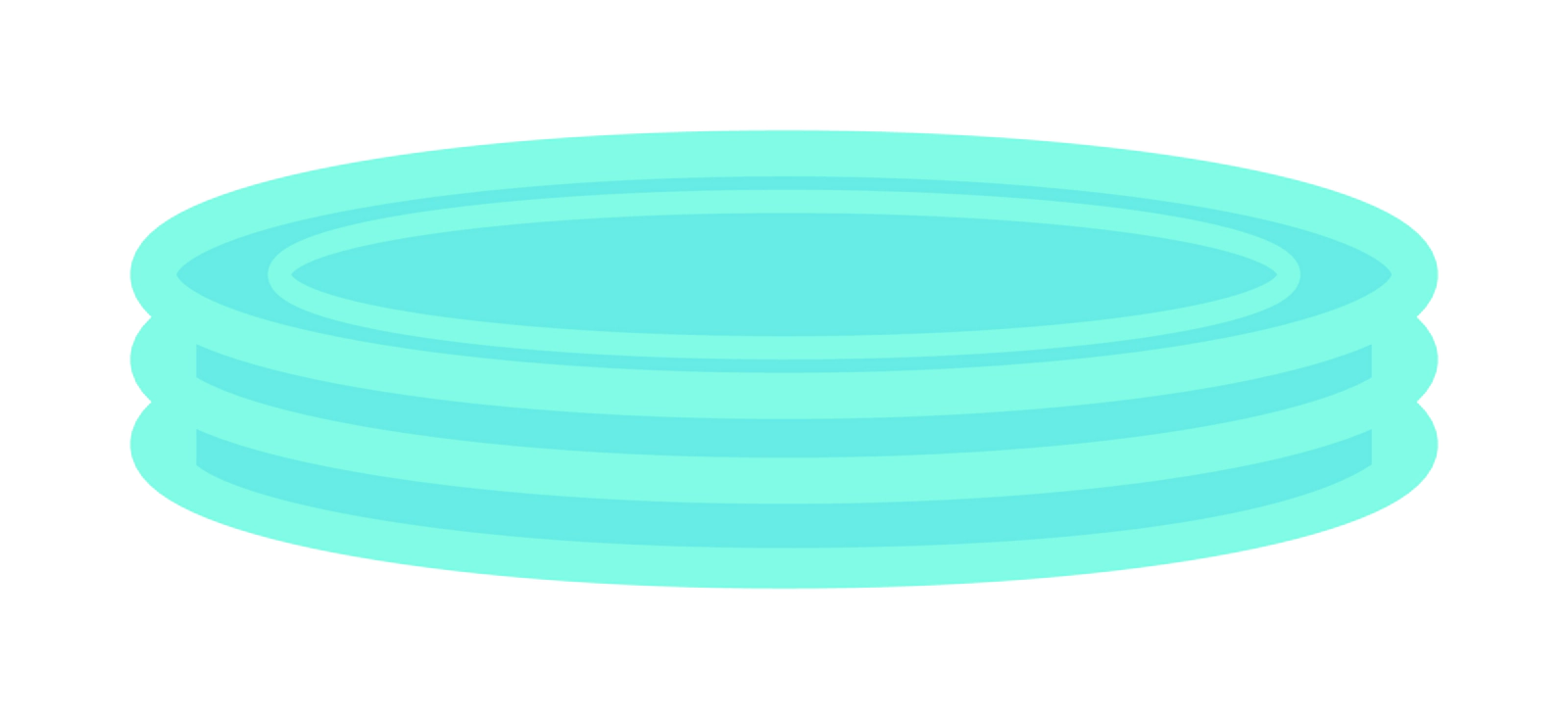

Bi-metal crimp closures support transportation of the vial via magnet, as for e.g. in the CTC Combi PAL, the Shimadzu AOC 5000/6000 or the Gerstel autosampler. They are generally more difficult to crimp/decap which is why Headspace screw neck vials N 18 may be a more convenient alternative. We recommend Silicone/PTFE septa as the optimal choice for Headspace, as they offer a temperature resistance form -60 °C up to 200 °C, highest analytical purity and excellent penetration properties. These closures with a molded, high purity Silicone/PTFE septa are only laminated with PTFE in the contact area with the sample. Thus the elastomeric Silicone can achieve on the vial's glass rims a very tight seal, while in comparison a completely PTFE covered septum would have a very slippery surface on the glass and could easily be twisted around. Septa are assembled, caps are ready-to-use. Septa are shown for illustration purposes only, images upside down.

Additional closure features	Temp. resistance -60 °C up to 200 °C / analytical purity - high / soft to penetrate / medium resealability / excellent sealing properties due to Pharma-Fix design of molded septum
Assembling process	Assembled
Autosampler compatibility	Shimadzu AOC 5000
Cap color	Blue/silver
Cap hole	Yes
Cap material	Aluminum/tin
Closure magnetic	Yes
Closure type	Crimp closure
Colors of septa material	Blue transparent/colorless
Gross weight (incl. packaging)	205 g / 0.45 lbs
Hazardous material	No
Nominal diameter	N 20
Packaging dimensions	120 x 170 x 30 mm / 4.72 x 6.69 x 1.18 Inch
Recommended application(s)	Headspace
Scope of delivery	100x N 20 ready assembled crimp closures
Septa hardness	45° shore A
Septa material	Silicone/PTFE
Septa thickness	3.0 mm / 118,1 mil
Storage temperature	15–25 °C / 59–77 °F
