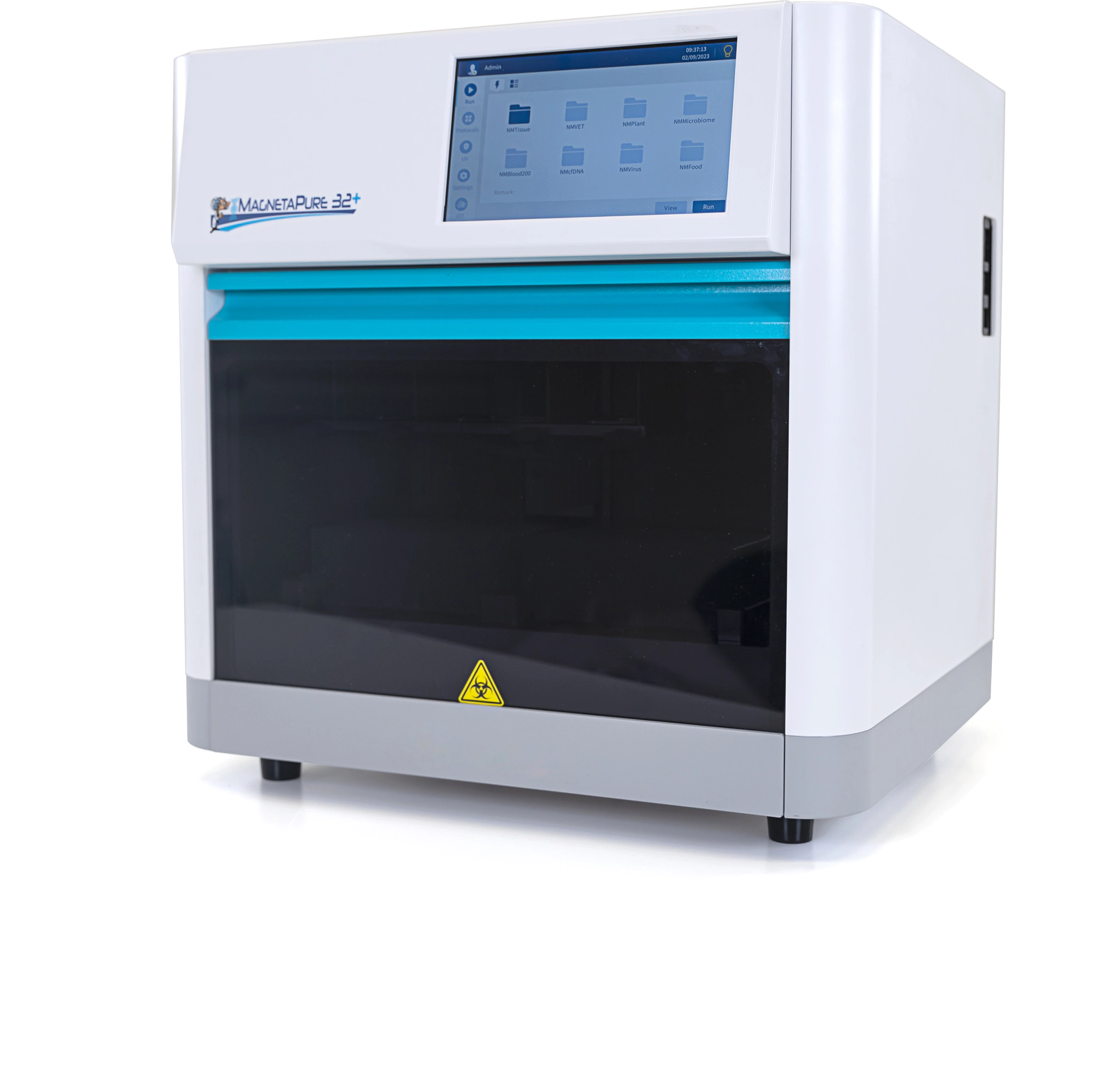

MagnetaPure 32+ nucleic acid extraction system
The MagnetaPure 32+ is an automated platform for magnetic bead-based DNA/RNA extraction with a minimal benchtop footprint. Capable of processing up to 32 samples at one time, the stand-alone instrument is easy to set up, program, and operate. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically, saving valuable hands-on time. The purification process can be completed within 20 to 60 minutes depending on the type of NucleoMag kit used and the complexity of the program.
- Fast, reliable and reproducible DNA / RNA extractions
- Process up to 32 samples in parallel
- Compact footprint (417 x 410 x 426 mm)
Method safety
The MACHEREY-NAGEL automation specialists have developed verified methods for nucleic acid extraction from various sample materials. All verified protocols are provided with the instrument, for an easy and worry-free implementation of this automation solution in your lab.
Automation benefits
Automating repetitive work processes can positively influence your work in many ways. Benefit from consistent, on-time output, reproducibility, standardization, increased hands-off time, and documented data integrity!
Minimal footprint
At just 417 x 410 x 426 mm, the MagnetaPure 32+ has a minimal footprint and fits on almost any lab bench.
Flexibility
The MagnetaPure 32+ is an open platform and allows the modification of any protocol parameters to your needs (e.g. volume, temperature, mixing and magnetic separation conditions).
User-friendly
With its intuitive user interface everyone can learn to operate the device within minutes. The device can store up to 500 programs, which can be easily selected, started or modified with just a few clicks. Programs or run files can also be im- or exported to the device via USB drive.
You have questions about the device or want to learn more about suitable extraction reagents and consumables? Please contact us for assistance or to request more information.
Phone: +49 2421 969 0
The MagnetaPure32+ platform is currently only accessible in specific countries. For availability in your country, please reach out to your local distributor or our MN Sales Team.

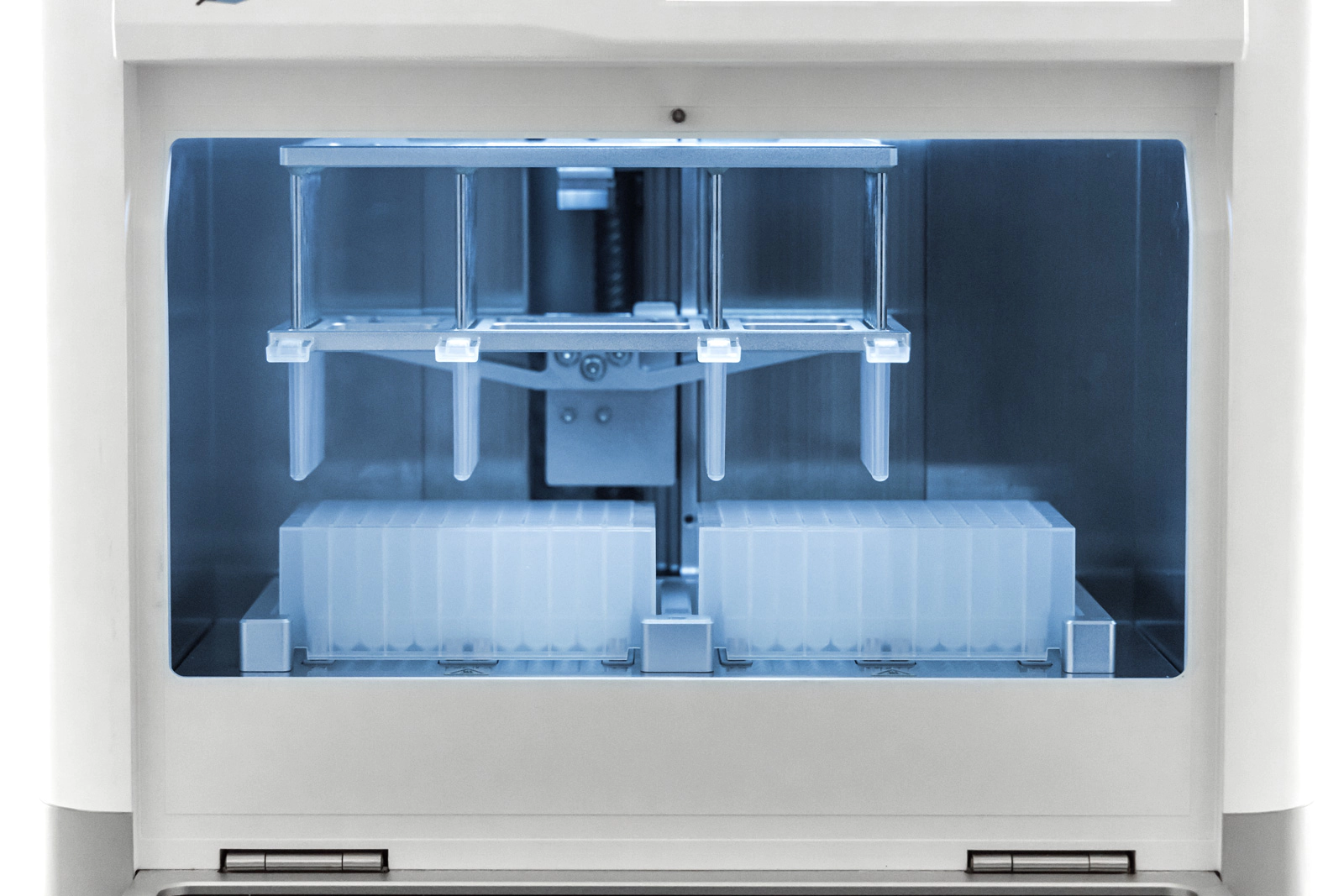

Safety: UV decontamination
An ultraviolet sterilization lamp (UVC) inside the processing chamber provides effective elimination of most bacterial, viral and stray genomic DNA contaminants. This additional safeguard reduces the possibility of contamination and downstream amplification of unwanted targets.

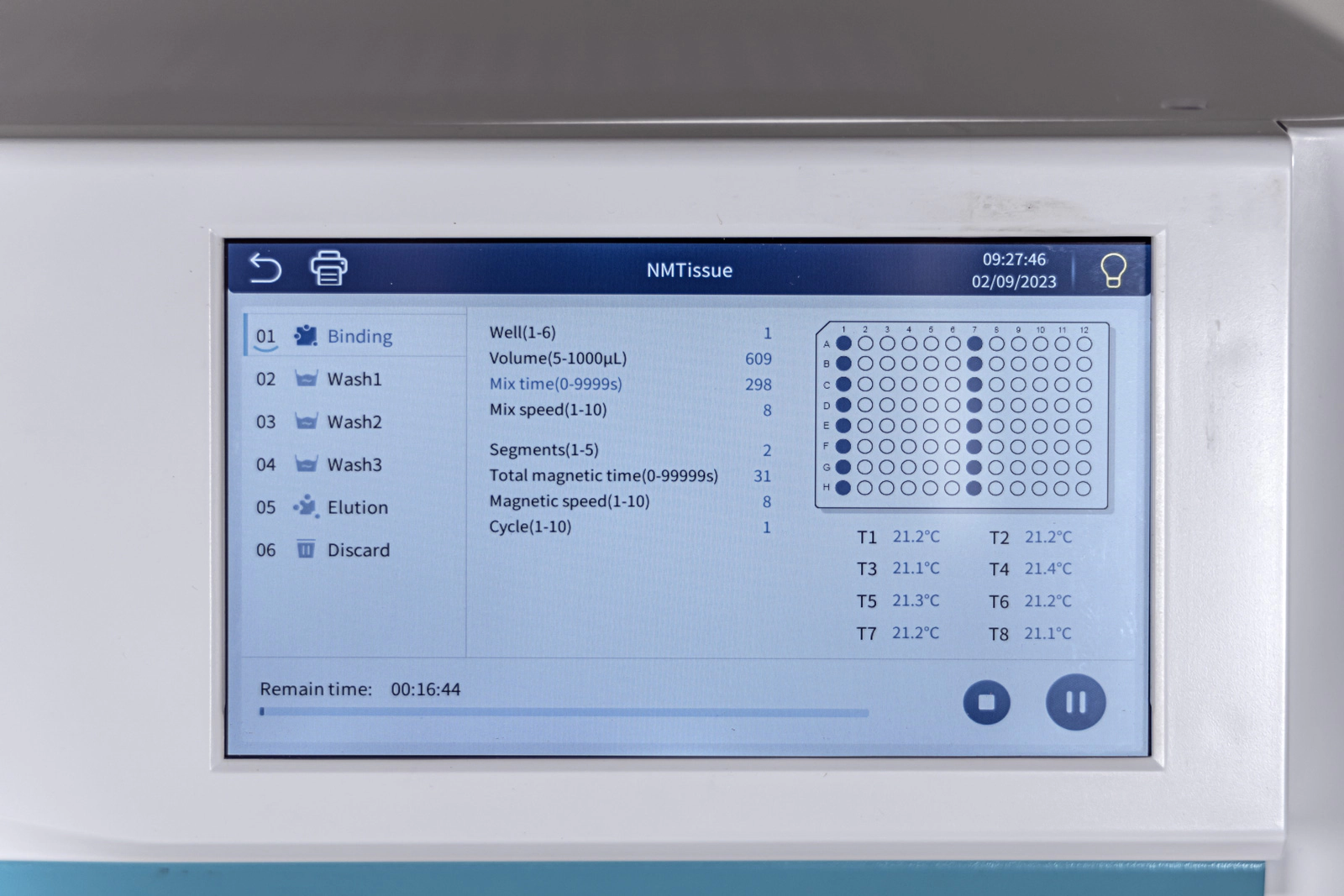

Easy to use touchscreen interface
The touchscreen control panel of the MagnetaPure 32+ allows for quick selection of stored protocols and instrument control. To execute a protocol, select it from the file list, insert a prepared sample plate and tip combs, and press the start button. Run parameters and operating status are displayed during sample processing.
The perfect match: MACHEREY‑NAGEL’s nucleic extraction solutions
The MagnetaPure 32+ perfectly combines with our magnetic bead-based NucleoMag extraction solutions. We offer innovative solutions for various sample materials, target molecules and applications. Click here to read more.
Automation made simple!
The MagnetaPure 32+ is ideally suited for processing MACHEREY-NAGEL`s NucleoMag kits. The device comes with verified scripts pre-installed on the device. For all scripts we also provide detailed protocol information with description of procedure steps, loading schemes, and required consumables. Click on the images below and read more about different application examples.

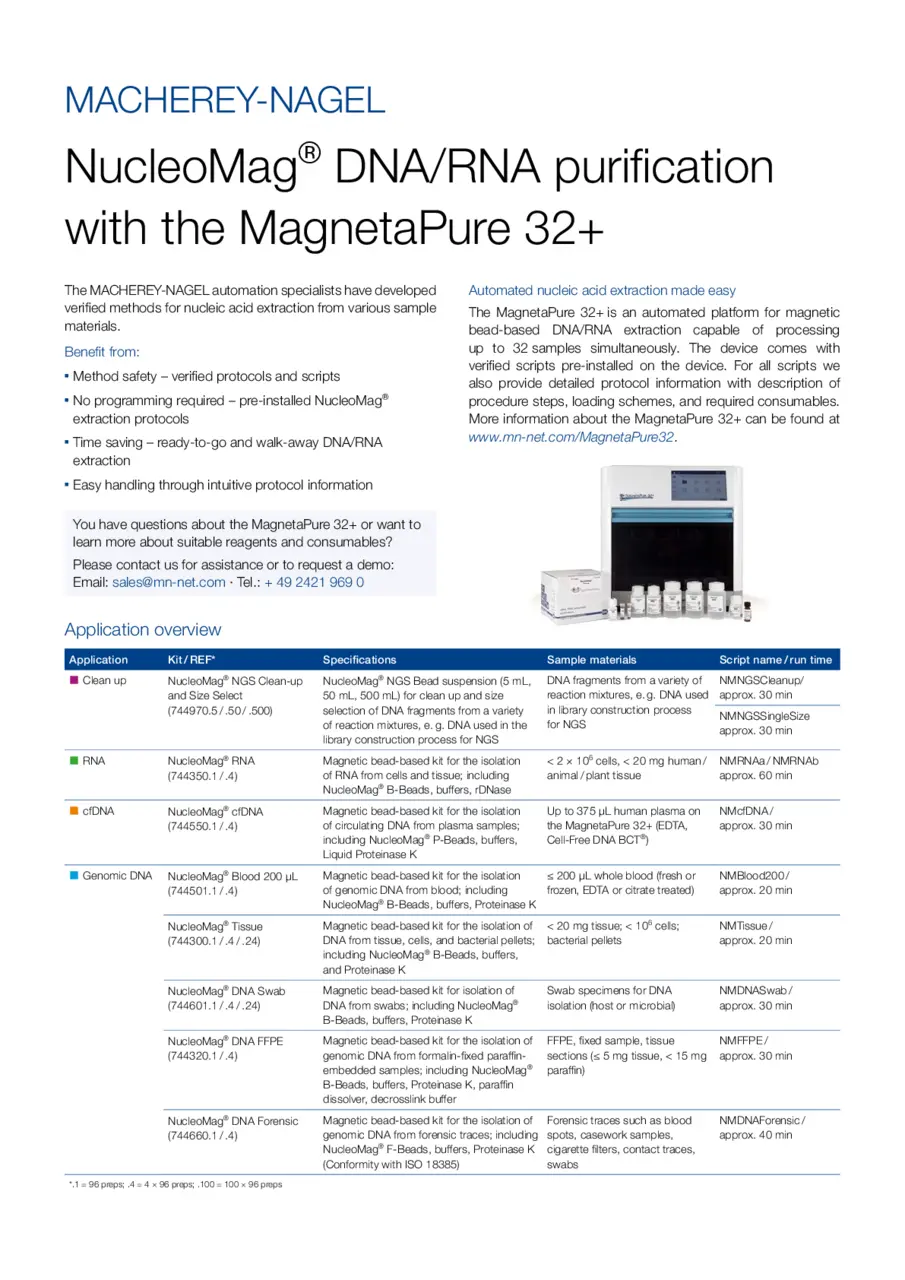

Application overview

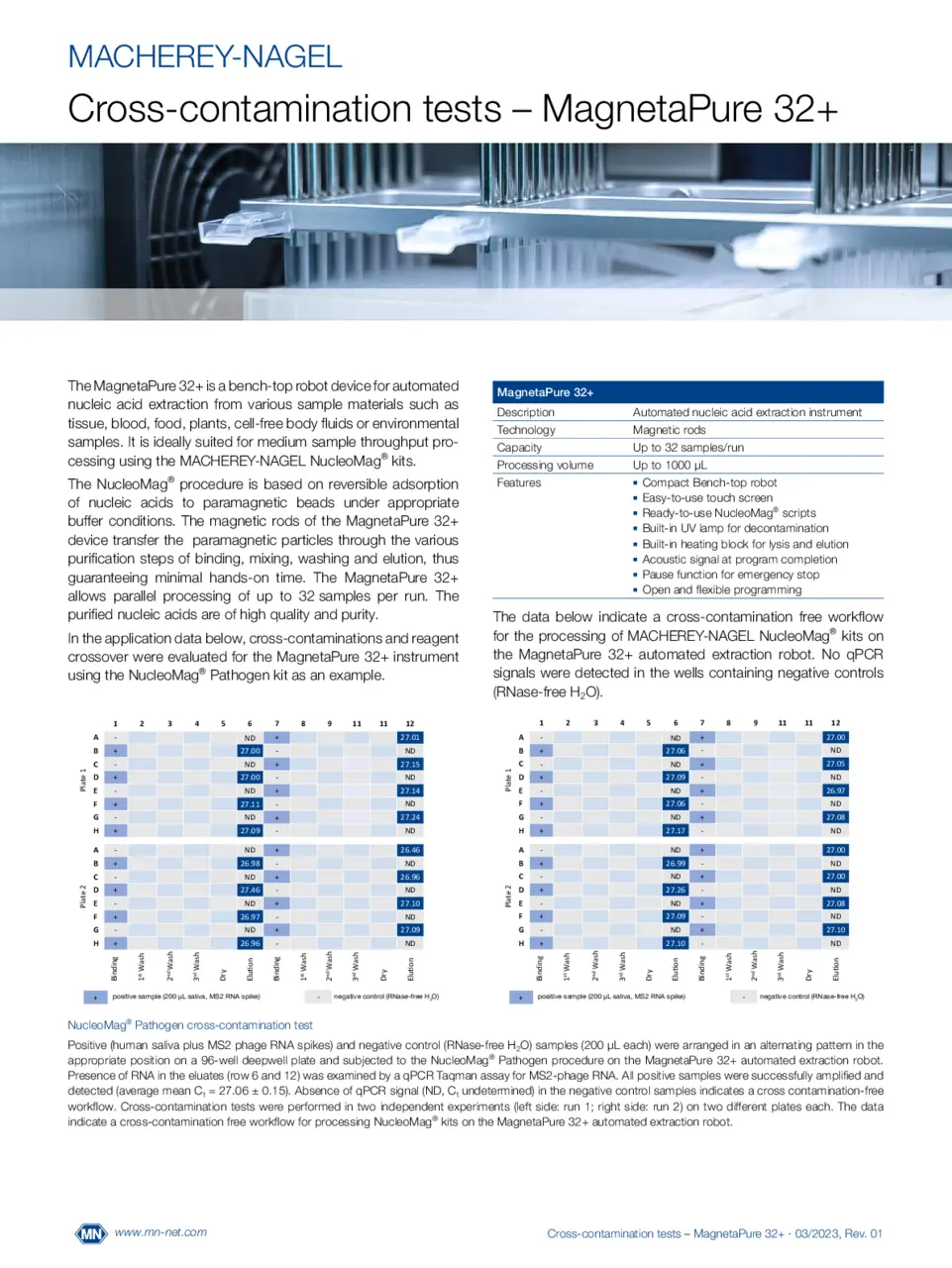

Cross-contamination tests

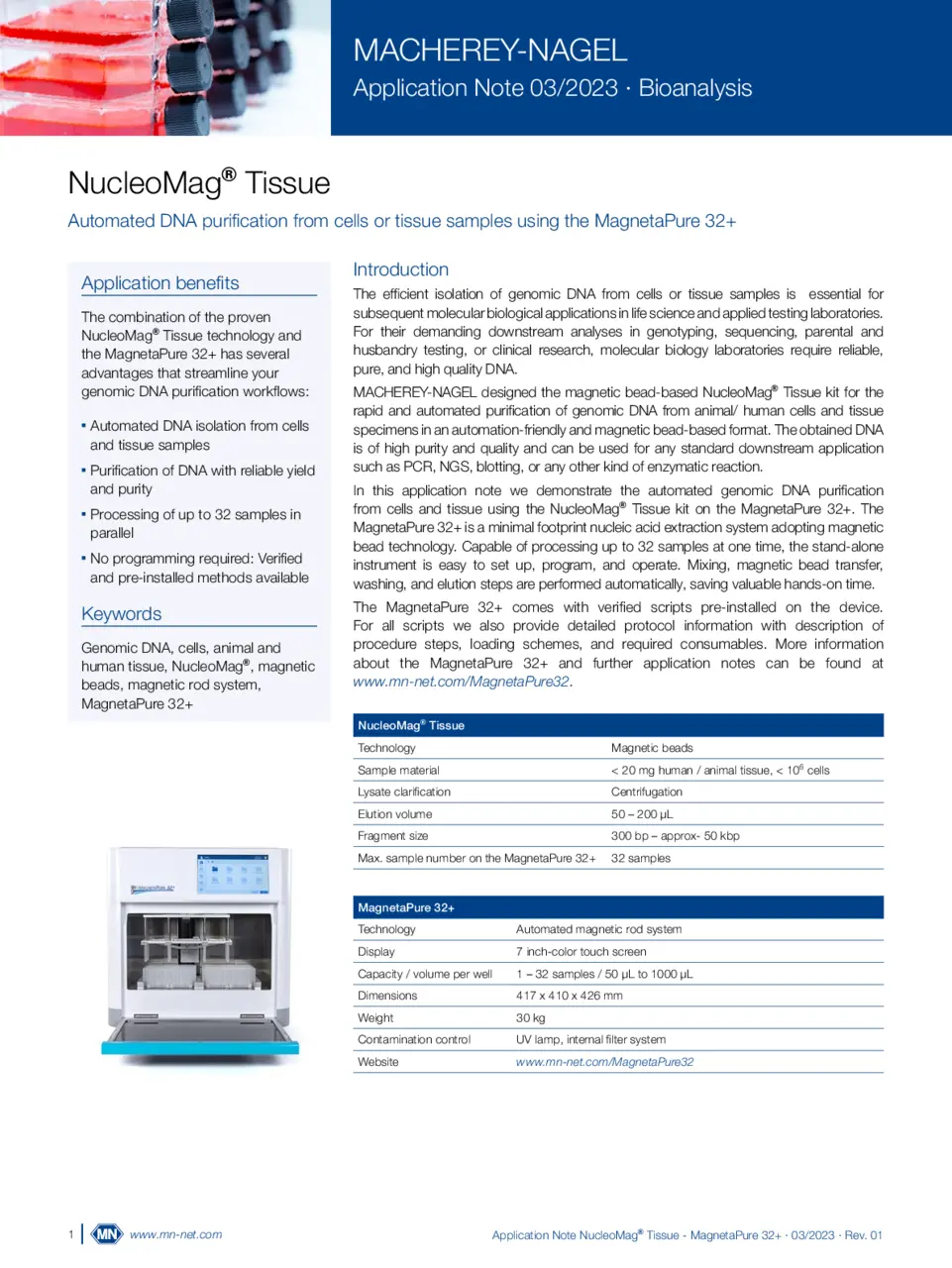

NucleoMag Tissue
Technical data & contact information
Please follow the link below or read the product broschure for more information on technical data, specifications and related products.
You have questions about the device or want to learn more about suitable extraction reagents and consumables? Please contact us for assistance or to request more information about availability in your country.
Email: sales@mn-net.com
Tel.: +49 2421 969 0
