Glass fiber extraction thimbles MN 649

Glass fiber extraction thimbles MN 649
Product configuration

Height

Inner diameter

Wall thickness

Do you have any questions?
Please contact us.
Select variant first $0.00 * (0% Saved)

*taxes and shipping not included

649106 011000006020
Package unit 25 Piece(s)
Quantity:
Extraction thimbles MN 649 are made from glass microfibers without binder, short-term... more

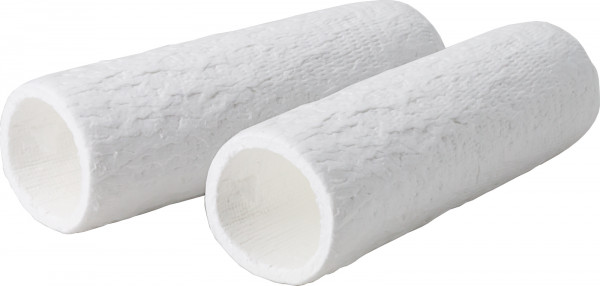

Extraction thimbles MN 649 are made from glass microfibers without binder, short-term temperature resistance up to 500 °C, very high particle retention, for dust analysis in hot exhaust gases.

Format Glass fiber extraction thimble
Grade MN 649
Height 50 mm, 60 mm, 80 mm, 90 mm, 94 mm, 100 mm, 118 mm, 120 mm, 123 mm, 150 mm, 205 mm, 230 mm, 315 mm, 330 mm
Inner diameter 15 mm, 16 mm, 22 mm, 23 mm, 27 mm, 28 mm, 30 mm, 33 mm, 35 mm, 43 mm, 48 mm, 57 mm, 75 mm
Wall thickness 1 mm, 1,5 mm, 2 mm
Material Borosilicate glass micro fibers
Temperature stability 500 °C
Scope of delivery 25 thimbles in a box
Hazardous material No
